| Prod Model: |
XLPE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CE |
Product Description
Product Description

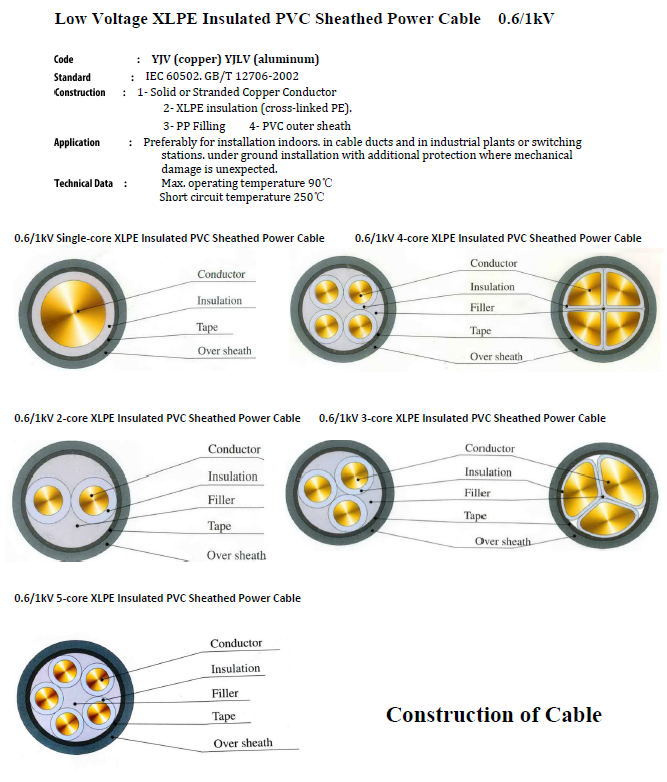

CU (AL)/XLPE Insulated power cable
Copper (Aluminum)/XLPE insulation/Steel wire armour/PVC Sheath cables
The cable is used in electric transmission and distribution system operating at rate voltage of 0.6/1, 6/10, 8.7/10, 18/30, 26/35KV.
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
This series cable is mainly laid indoor, cable slot, direct burial, channel, mining well and water condition. This series cable has the following characteristics. The Max. Rated temperature of the conductor is 70 degree. The Max. Temperature of the conductor of the cables can't exceed 160 degree.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A, B, C.
This series cable includes:
Type Description Application
YJV, YJLV Copper(aluminum)conductor, XLPE insulated and PVC sheathed cable For laying indoors, in tunnel or pipe, unable to bear external mechanical Force
YJY, YJLY Copper(aluminum)conductor, XLPE insulated and PE sheathed cable
YJV22, YJLV22 Copper(aluminum)conductor, XLPE insulated, steel tape armored and PVC sheathed cable For laying indoors, in tunnel, cable trench, or direct in ground, can bear external mechanical Force, while unable to bear large tension
YJV23, YJLV23 Copper(aluminum)conductor, XLPE insulated, steel tape armored and PE sheathed cable
YJV32, YJV42 YJLV32, YJLV42 Copper(aluminum)conductor, XLPE insulated, thin(thick)steel wire armored and PVC sheathed cable For laying in high drop area, can bear external mechanical Force and certain tension
YJV33, YJV43 YJLV33, YJLV43 Copper(aluminum)conductor, XLPE insulated, thin(thick) steel wire armored and PE sheathed cable
Jiangsu Zhongchao Cable Corporation is the core business enterprise of Zhongchao Group in Jiangsu Province. The group's businesses include manufacturing electric wires and cables, protective tubes of cables, metallic material and insulation materials, transmission and transform equipment and environmentally friendly equipment and selling automobiles. Our group has been invested to build the Yangxian Tea Culture Ecological Zone for touring and sightseeing. Our group's table tennis club has joined China's Table Tennis Super League Match.
Jiangsu Zhongchao Holding Co., Ltd. is the core business enterprise of Zhongchao Group in Jiangsu Province. The group's businesses include manufacturing electric wires and cables, protective tubes of cables, metallic material and insulation materials, transmission and transform equipment and environmentally friendly equipment and selling automobiles. Our group has been invested to build the Yangxian Tea Culture Ecological Zone for touring and sightseeing. Our group's table tennis club has joined China's Table Tennis Super League Match.
Our company is a high-tech enterprise, and our products have won various awards, such as Famous Brand in Jiangsu Province, High-Quality Well-Know Product in Jiangsu Province and Famous Brand Product in Wuxi City. Our company has attained many certifications, such as IS9001 quality system, ISO14001 environment system, QAS18001 professional health and safety system, CE, Power Product Certification, Export Quality License and CCC. We were commented as the enterprise with which customers are satisfied, also honored as the enterprise "Abiding by agreement And Keeping Faith" in Jiangsu Province and the Exemplary Unit with A High Quality Service in China. Our company was deemed as the Unit with Good Faith, Unit Which Focuses on The Protection of The Quality of Tracking Products, Quality Assured Brand.
On 10.9.2010, we successfully landed in A-share market and got listed in Shenzhen Stock Exchange. (abbr.: Zhongchao Cable, Stock code: 002471), which comes to an ending that we have standardized enterprise operational mechanism, improved the management and strengthened our lean management. We also have aimed at improving operational efficiency and economic benefits. The project of 500kv environment-protecting flame-resistant EHV XLPE cable is being carried out.
Our company owns world-advanced fully-developed production equipment and examination techniques. Our technicians and technical members are well-trained and highly-skilled. Our main shareholders and the managing members have abundant experience in sale, promotion and production management. Our company has 30 employees who have high professional titles and 50 employees who have middle professional titles.
Our company has a solid production basis. We are capable of designing and manufacturing products as per customers' requirement according to national standards, British standards, German standards and the Standards of the International Technician Committee. Our main products include naked electric wires, electrical wires and cables for electrical equipment, plastic insulating electrical cables under 35KV, control cables, computer cables, extension wires, Extra-high cables, various high temperature-proof cables, branch cables and fire-proof cables. Insulating materials are divided into the following types: PVC, polythene (PE) and cross-linked polyethylene (XLPE) and inorganic compound and other special materials. Our company attaches much importance to the development of medium and high voltage XLPE insulated cables and various kinds of special cables, such as flame-resistant, LSF and LSOH cables.
We always focuses on innovation, and have developed a new kind of cable with metal sheath. This product is mainly used for city transportation and railway transportation and has already got seven patents. The specially designed 66 KV 1*95 type cables for the Qinzang Railway have already won good comments from our customers.
