Low Voltage XLPE/PVC Power Cables

Name: Low Voltage XLPE/PVC Power Cables
Brand: all-electronics-online.com
SKU: 721861082
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 0.35-1.99/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Brand:	Jinshui

Product Description

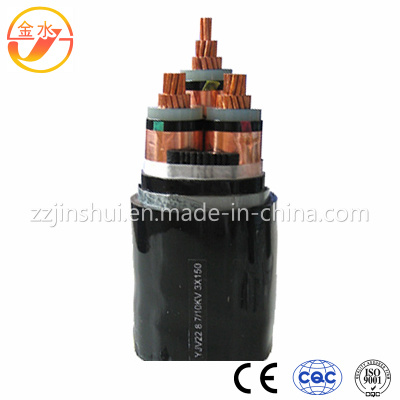

COPPER(ALUMINMU)CONDUCTOR XLPE INSULATED PVC SHEATHED POWER CABLE RATED VOLTAGE UP TO 35KV
Brief introduction about XLPE Insulated Power cable
Cross-linked polyethylene insulated power cable do not only has excellent electric, mechanical proper-ties,but also has powerful resistance against chemical corrosion,heat resistance and environmental stress resistance. Its structure is simple,the long period operating temperature is +90ºC. It is convenient to use and can be laid with no restriction of different level.
APPLICATION
XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.XLPE cable has high electric strength, mechanical strength,high-ageing resisting,environmental stress resisting anti-chemical corrossion,and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide,silance and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen,low-smoke halogen free,and non-smoke nonhalogenated and three slasses of A,B,C.
We can produce the cables as per GN, IEC,BS,VDE, AS/NZS,ICEA,JIS.

TYPE		VOLTAGE
	No.of cores	0.6/1kV	6/6kV, 6/10kV	8.7/15kV, 12/20kV, 18/30kV	19/33kV, 26/35kV
	No.of cores	Mm²
COPPER/XLPE/PVC	1	1.5~800	25~800	35~1200	50~1200
AL/XLPE/PVC		2.5~1000	25~1000	35~1200	50~1200
COPPER/XLPE/SWA (STA,AWA)/PVC		10~1000	25~1000	35~1200	50~1200
COPPER/XLPE/PVC	3	1.5~400	25~400	35~400	50~400
AL/XLPE/PVC		2.5~400	25~400	35~400	50~400
AOPPER/XLPE/AWA (STA)/PVC		4~400	25~400	35~400	50~400

Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
