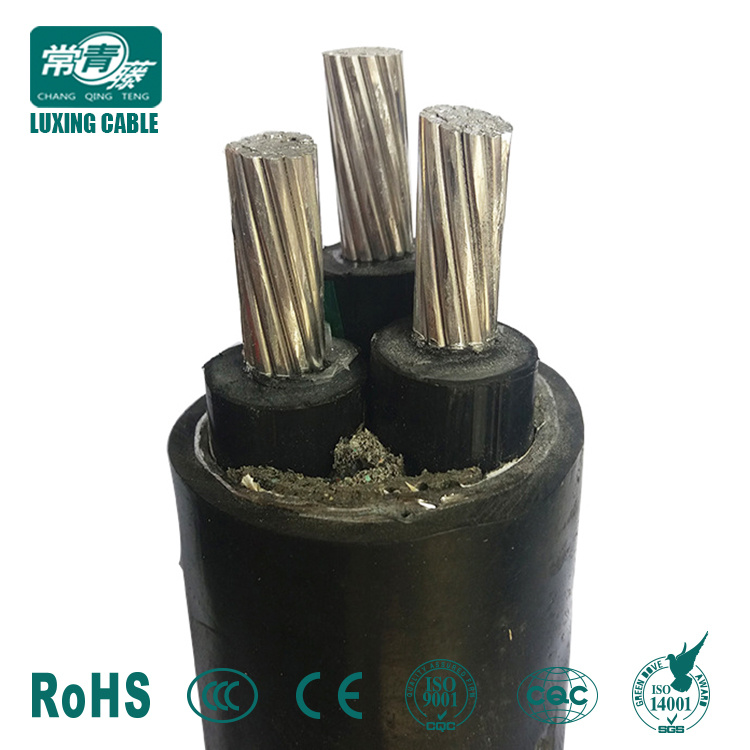

Low Voltage Yjlhbv22 Aluminum Alloy Power Cable

Name: Low Voltage Yjlhbv22 Aluminum Alloy Power Cable
Brand: all-electronics-online.com
SKU: 835241685
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Low Voltage Yjlhbv22 Aluminum Alloy Power Cable
Product Name:	Low Voltage Yjlhbv22 Aluminum Alloy Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Aluminum Alloy
Insulation:	XLPE/PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Wire Core Material:	Aluminum Alloy
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

0.6/1 kv YJLHBV22 Aluminum Alloy Power Cable

Type: YJLHBV22-0.6/1kV

Description

8000 Series aluminum alloy core with 90ºCXLPE insulation double steel tape armour PVC sheath power cable, low voltage, 0.6/1kV

Standard

ASTM- All Applicable Standards

CSA22.2 NO.51-95

Features/Application

Using independent developed AA8000 series alloy conductor, good conductivity, better creep resistance, good flexibility, low rebound, more stable.

Equipped with galvanized steel layer that can suffer certain mechanical forces, buried directly.

PVC outer sheath, ageing resistance

Lay in tunnel, tube, or soil, suit for corrosion environment.

Specification

YJLHBV22-0.6/1kV(1)

Technical data
Cross section area of conductor (mm²)	Approximated outer diameter (mm)					Approximated weight(kg/km)
Cross section area of conductor (mm²)	2 cores	3 cores	4 cores	3+1 cores	5 cores	2 cores	3 cores	4 cores	3+1 cores	5 cores
10	17.5	18.3	19.7	19.1	21.2	333	381	444	419	511
16	19.5	20.5	22.1	21.5	23.9	410	480	565	534	656
25	22.7	23.9	26.0	25.1	28.2	539	642	769	719	901
35	24.7	26.1	28.4	26.9	31.1	642	776	937	844	1121
50	27.7	29.3	32.2	30.8	35.4	807	991	1224	1114	1471
70	31.5	33.6	38.2	34.8	41.8	1021	1280	1940	1416	2297
95	34.5	38.2	41.9	39.9	46.0	1247	1947	2373	2162	2827
120	39.5	42.1	46.2	44.3	51.0	1888	2332	2853	2623	3434
150	43.1	45.9	50.7	47.7	55.8	2216	2751	3407	3038	4087
185	47.9	51.3	56.5	53.0	62.4	2641	3319	4097	3659	4948
240	53.3	56.9	62.9	58.9	69.6	3218	4050	5045	4490	6113
300	58.1	62.0	68.6	64.3	76.1	3808	4819	6025	5362	7341
400	65.3	69.9	77.4	72.5	85.9	4768	6110	7670	6782	9367
500	72.7	77.9	86.5	80.8	95.9	5773	7433	9390	8279	11464
630	81.5	87.3	97.0	90.1	107.6	7077	9136	11557	10139	14132

YJLHBV22-0.6/1KV (2)

Technical data
Norminal Area	Approximate Diameter	Nominal Insulation Thickness	20ºC DC Resistance	Capacity
				2 cores		3~5 cores
				In air	Buried	In air	Buried
mm2	mm	mm	≤Ω/km	A	A	A	A
10	3.8	0.7	3.08	65	81	56	68
16	4.8	0.7	1.91	84	110	72	89
25	6.0	0.9	1.21	112	136	97	115
35	7.0	0.9	0.868	135	162	118	136
50	8.3	1.0	0.641	163	193	140	162
70	10.0	1.1	0.443	213	240	185	198
95	11.5	1.1	0.32	264	286	224	240
120	13.2	1.2	0.253	303	328	264	271
150	14.5	1.4	0.206	348	370	303	307
185	16.3	1.6	0.164	398	416	348	349
240	18.5	1.7	0.125	471	494	409	406
300	20.6	1.8	0.1	549	572	471	458
400	23.6	2.0	0.0778	639	656	555	526
500	26.5	2.2	0.0605	740	760	672	609
630	30.2	2.4	0.0469	880	895	801	692
Ambient temperature / buried depth 0.7m				30ºC	20ºC	30ºC	20ºC
Maximum operating temperature				90ºC

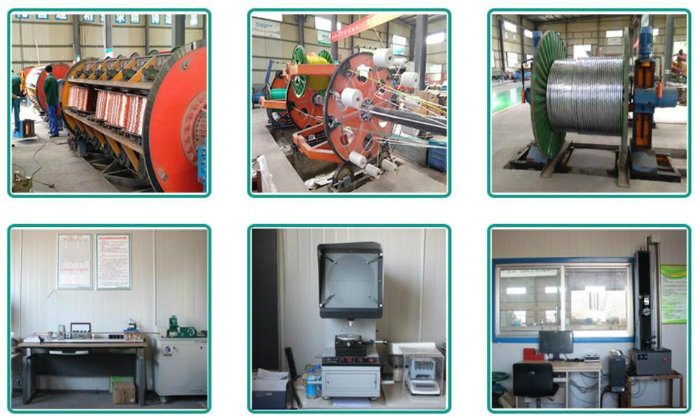

Luxing Factory : our production base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
