| Prod Model: |
NYY N2XY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
4X35mm, 4X50mm, 4X70mm |
| Applicated Standard: |
IEC 60502-1 or as Requirement |
| Certificate: |
CE, ISO 9001:2008 |
| Key Word: |
Nyy |
| Key Word 2: |
N2xy |
| Key Word 3: |
Nyy Cable |
| Key Word 4: |
N2xy Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
PVC or XLPE |
| Range Of Application: |
Industrial or Power Station |
| Brand: |
Jytop |
Product Description
Description
Rated voltage: 0.6/1kv, (6/10kv, 8.7/15kv, and more for selection)
Conductor: Aluminum cable or Copper Cable
Insulation: PVC insulation or XLPE
Sheath: PVC or PE
Armoured cable type:steel tape armoured, steel wire armoured also available.
Popular size: 6mm armoured
Certificates: CE certificates, ISO 9001 Certificate
Experience: More than 23 years professional cable production
Factory: set up in 1993 and located in Henan Chian.
Very Competetive Factory price with high quality.

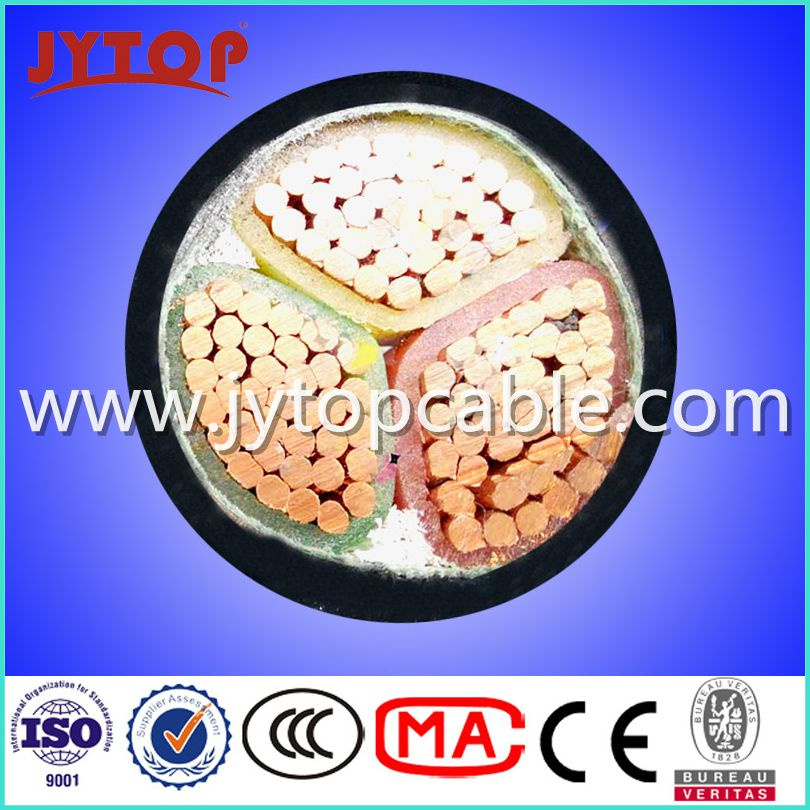

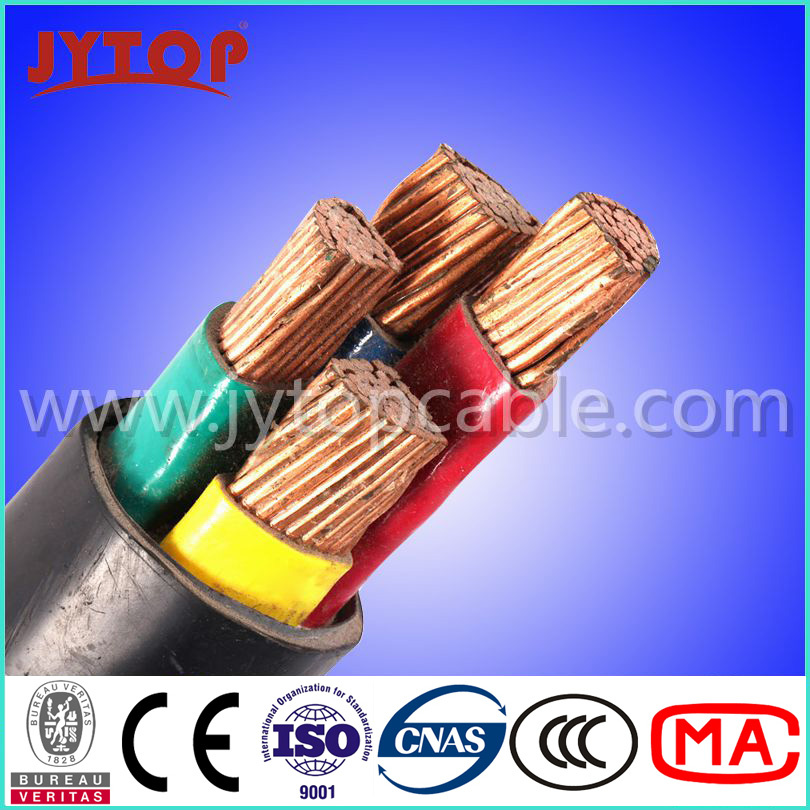

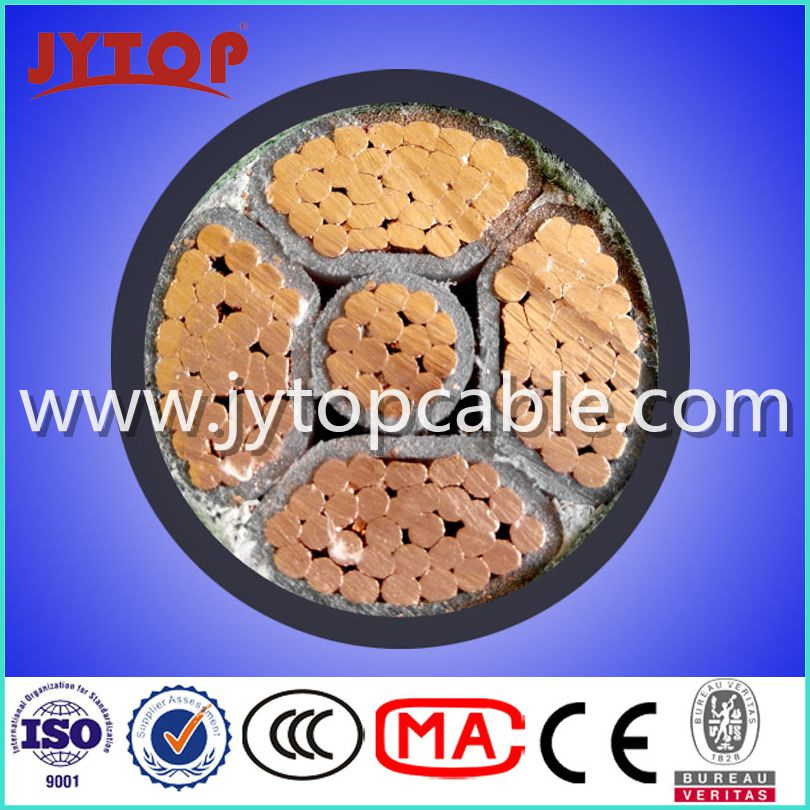

NYY Cable
N2XY Cable
NYY Cable
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.4.NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you. 5. Technical data
Cable size |
Conductor type | Nominal
thickness of PVC
insulation(mm) | Nominal
thickness of PVC
sheath(mm) | Approx. cable
overall diameter
(mm) | Max. D.C resistance
@ 200C (Ω/km) |
| 4x1.5mm2 | RE or RM | 0.8 | 1.8 | 11.0 | 12.1 |
| 4x2.5mm2 | RE or RM | 0.8 | 1.8 | 11.9 | 7.41 |
| 4x4mm2 | RE or RM | 1.0 | 1.8 | 14.0 | 4.61 |
| 4x6mm2 | RE or RM | 1.0 | 1.8 | 15.3 | 3.08 |
| 4x10mm2 | RM | 1.0 | 1.8 | 18.4 | 1.83 |
| 4x16mm2 | RM | 1.0 | 1.8 | 20.9 | 1.15 |
| 4x25mm2 | SM | 1.2 | 1.8 | 21.9 | 0.727 |
| 4x35mm2 | SM | 1.2 | 1.8 | 24.1 | 0.524 |
| 4x50mm2 | SM | 1.4 | 1.9 | 27.6 | 0.387 |
| 4x70mm2 | SM | 1.4 | 2.1 | 31.4 | 0.268 |
| 4x95mm2 | SM | 1.6 | 2.2 | 36.1 | 0.193 |
| 4x120mm2 | SM | 1.6 | 2.3 | 39.3 | 0.153 |
| 4x150mm2 | SM | 1.8 | 2.5 | 43.5 | 0.124 |
| 4x185mm2 | SM | 2.0 | 2.7 | 48.4 | 0.0991 |
| 4x240mm2 | SM | 2.2 | 2.9 | 54.6 | 0.0754 |
| 4x300mm2 | SM | 2.4 | 3.1 | 60.4 | 0.0601 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor Main technical data of 0.6/1KV, four cores, Copper conductor, XLPE insulated and PVC or PE sheath cables CABLE CONSTRUCTION: 0.6/1KV CU/XLPE/PVC or PE
Cable size |
Conductor type | Nominal thickness
of XLPE
insulation(mm) | Nominal thickness
of PVC or PE
sheath(mm) | Approx. cable
overall diameter (mm) | Max. D.C resistance
@ 200C (Ω/km) |
| 4x1.5mm2 | RE or RM | 0.7 | 1.8 | 10.5 | 12.1 |
| 4x2.5mm2 | RE or RM | 0.7 | 1.8 | 11.5 | 7.41 |
| 4x4mm2 | RE or RM | 0.7 | 1.8 | 12.6 | 4.61 |
| 4x6mm2 | RE or RM | 0.7 | 1.8 | 13.8 | 3.08 |
| 4x10mm2 | RM | 0.7 | 1.8 | 16.9 | 1.83 |
| 4x16mm2 | RM | 0.7 | 1.8 | 19.5 | 1.15 |
| 4x25mm2 | SM | 0.9 | 1.8 | 21.3 | 0.727 |
| 4x35mm2 | SM | 0.9 | 1.8 | 23.4 | 0.524 |
| 4x50mm2 | SM | 1.0 | 1.9 | 26.8 | 0.387 |
| 4x70mm2 | SM | 1.1 | 2.0 | 30.6 | 0.268 |
| 4x95mm2 | SM | 1.1 | 2.1 | 34.9 | 0.193 |
| 4x120mm2 | SM | 1.2 | 2.3 | 38.4 | 0.153 |
| 4x150mm2 | SM | 1.4 | 2.4 | 42.5 | 0.124 |
| 4x185mm2 | SM | 1.6 | 2.6 | 47.4 | 0.0991 |
| 4x240mm2 | SM | 1.7 | 2.8 | 53.4 | 0.0754 |
| 4x300mm2 | SM | 1.8 | 3.0 | 59.0 | 0.0601 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor Why Choose us?
For over 23 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional armoured
cable, PVC cable, Aluminum cable manufacturer has been producing customized cable for a wide
range of applications based on high quality, excellent service and competitive market prices.
This is an elite team with experienced personnel and strong technical support. Our
achievements benefit by having access to the largest market for cheap labor and abundant
resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel
Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA),
Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC
includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ
and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and
South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable
Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable
industry through continuous improvement of our quality, processes, and products, and by our
determination to exceed our clients' expectations.
Welcome to contact us for more information about the NYY Cable, N2XY cable or other cables.
