| Layers: |
2 Layers |
| Prototype Run: |
Yes |
| Mass Production: |
Yes, After Samples Confirmed Ok |
| Copper Thickness: |
0.5-2oz |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Anisotropic Conductive Adhesive |
| Structure: |
PCBA |
Product Description
low volume pcb assembly designing service factory1. Double-Sided FR4 material 1 oz copper pcb board
2. Green solder mask, Immersion gold
3. with Competitive price
General Specifications Capability
Material Requirements:
| Size | Max.Finshed Size | 20.9"x24.4"(530mm x 620mm ) |
| Board Thickness | Standard | 0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% ) |
| Min. | Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm) |
| 4-layer:0.01"±0.008"(0.4mm ±0.1mm) |
| 8-layer :0.01"±0.008"(0.4mm ±0.1mm) |
| Bow and twist | < 7/1000 |
| Copper Weight | Outer Cu weight | 0.5oz ~ 3.0oz |
| Inner Cu wight | 0.5oz ~ 3.0oz |
| Laminate Materials | FR-4,FR-1,,FR-2,CEM-1,CEM-3 |
Process Requirements:
| Solder Mask | Color | green,light green,white,black,dark brown,yellow,red,blue |
| Min. solder mask clearance | 0.003"(0.07mm) |
| Thickness | 0.0005"-0.0007"(0.012mm-0.017mm) |
| Silkscreen | Color | White,black,yellow,red,blue,green |
| Min. Size | 0.006"(0.15mm) |
| Surface Finish | HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon |
Quality Control:
| Electrical testing | Flying Probe Tester | Y |
| Controlled Impedance | Tolerance | ±10% |
| Impedance tester | Tektronix TDS8200 |
| Routing | End Mills Test | ± 0.006"(0.15mm) |
| CNC Tolerance | ±0.004"(0.1mm) |
| V-Cut Depth V-cut | FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm) |
| V-cut angle V-CUT | 15°,18°,30° |
| V-CUT | line,hole,V-shape |
Certificates
| UL Cert. | Y |
| ISO Cert. | ISO9001 :2008 |
| TS16949 | Y |
| ISO14000 | Y |
Manufacturing Capability for PCB Board
1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products

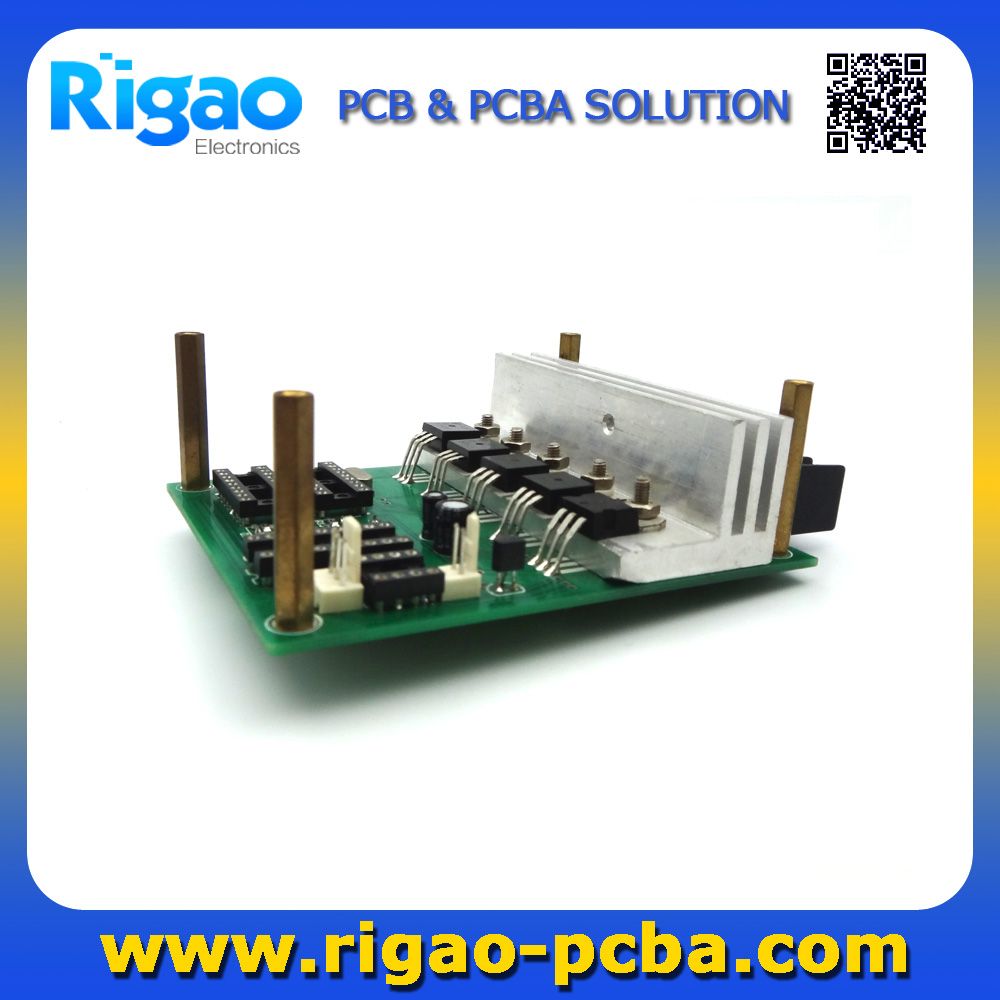

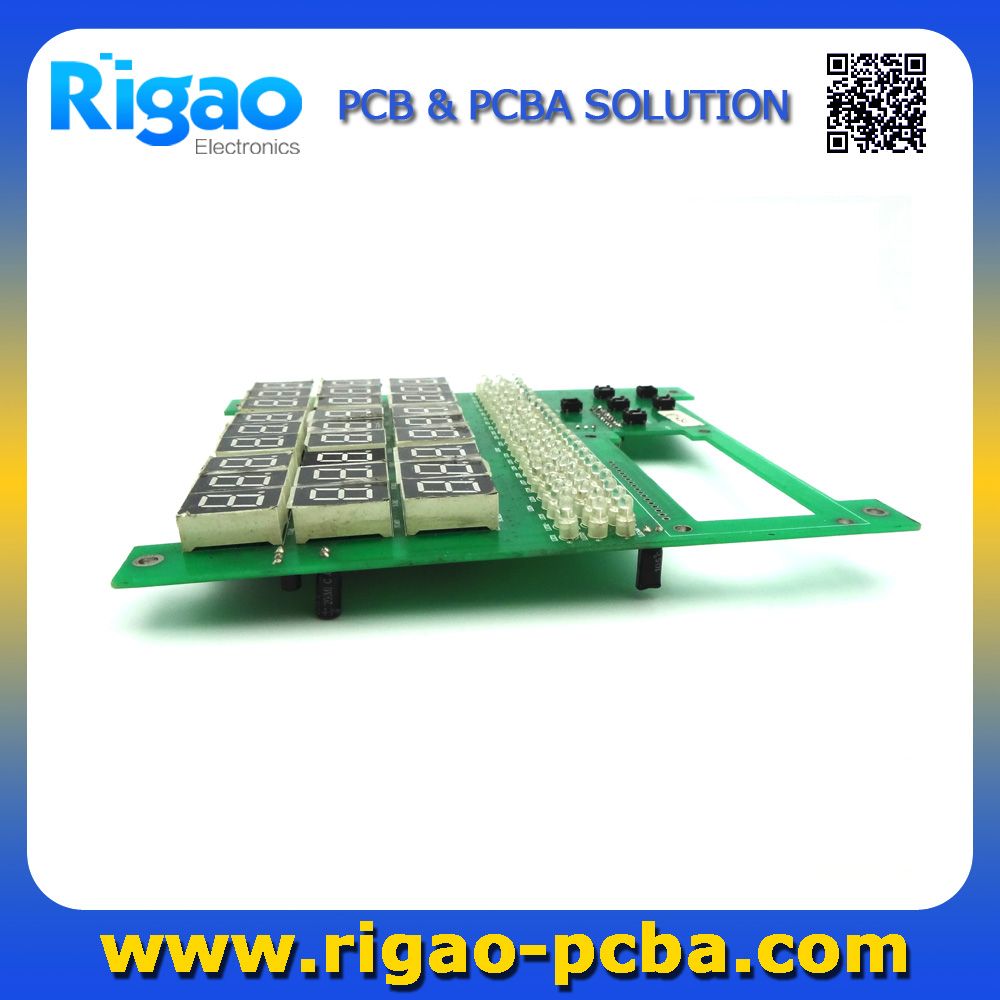

PCBA show:
Features:
Dimension: 30mm*28mm
Base Material: 0.1mm Cu/25um ADH/25um PI+25um ADH/35um Cu/
20um ADH/ 35um Cu/ 2525um PI+25um ADH/
25um ADH/ 0.1mm Au
Thickness: 1.6mm
Line Width/Space: 0.15mm/0.15mm
Surface Treatment: ENIG: Au: 0.03-0.09um, Ni: 2-6um
Minimum via diameter: 0.2mm
The smallest hole: 0.35mm
Outline Tolerance: +/-0.2mm
About us:
We are an experienced PCB (FPC) and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
Our products are including PCB, FPC, PCBA, Rigid-flex PCB, Multi-layer FPC, EM-shielding FPC, Finger-impending FPC, Special R/I FPC, Irregular-shape FPC, Regular FPC, multilayer PCB, printed circuit board, PCB printed circuit board, PCB assembly, PCB board, PCB circuit, printed circuit board, FPCB, PCBA, FPC connector, PWB, FPC board, FPC connector circuit board, print circuit board, rigid PCB, flex-PCB, PCB printed circuit board, etc.
We always bear in mind that "Providing top-quality products and services to Customers" as our Quality Policy, and "Process with green products and seek for perfect environment" as our Environmental Policy.
We do believe that more and more friends from all over the world will know our sincerity and cooperate with us.
| Flexible PCB |
| Item | Capabilities |
| Number of Layers | 1 - 8 Layers |
| Material | Polyimide or Polyester |
| Min.Line Width | 0.05mm |
| Min.Hole Size | 0.15mm PTH |
| Min. PTH Hole Ring | 0.45mm |
| Min. Gap between Cover Layer and Pad | 0.1mm |
| Min. Gap between Trace and Outline | 0.2mm |
| Trace Width Tolerance | ±0.03mm W±30% |
| Outline Tolerance | ±0.05mm L≤25mm |
| Hole Size Tolerance | ±0.05mm |
| Stiffener and Outline Tolerance | ±0.25mm |
| Surface Treatment | ENIG,Gold Plating,HAL,Plating Pb-Sn,Immersion Tin |
| Special Process | Blind/Buried Via Hole |
| Total Capacity | 300,000 Sq.ft/month |
FAQ:What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
We have NO MOQ,all of your order, we will be attention.Even 1 piece, we care!
Quote requirement:
1)GERBER file and specification
2)Clear pics or sample for us if no files
3)Testing instructions if you wanna test.
used mobile phone motherboard
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
