| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
220V 0.4~2.2kw/380V 0.75~2.2kw |
| Appearance: |
Small |
| Size: |
Compact |
| Frequency Range: |
0~400Hz |
| Control Mode: |
V/F Control |
| Protective Structure: |
IP 20 |
| Price: |
Cheap |
| Color: |
Black |
| Installation: |
DIN Rail Mounted |
| Protection: |
Overload |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |

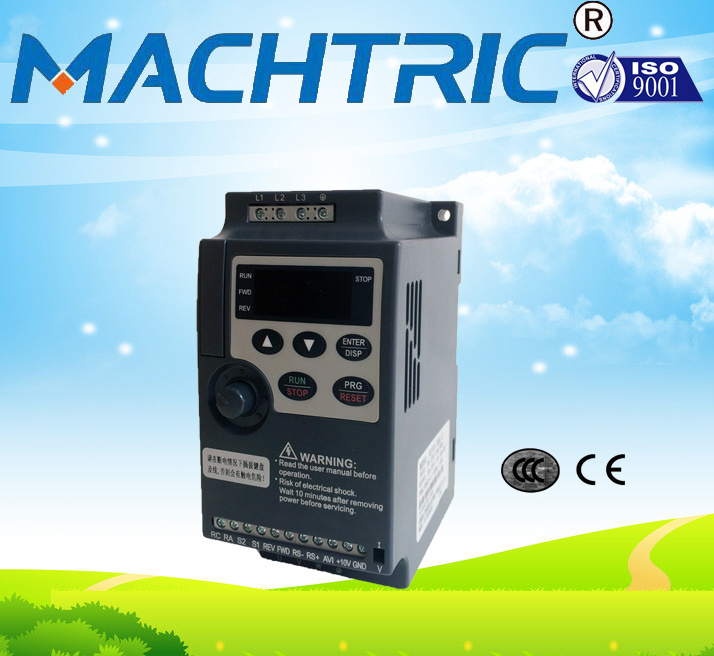

Product Description
1. Din rail mounted. Compact size.
2. V/F control.
3. Power range: 1 phase 220V 0.4~2.2kw 3 phase 380V 0.75~2.2kw
4. Similar as Delta VFD-L series,but we In addition have voltage of 380V
| Items | S800E |
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| | Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| | Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
| | Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
| | Output Frequency
Accuracy | 0.01Hz |
| | V/F Control | Setting V/F curve to satisfy various load
Requirements. |
| | Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
| | Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
| | Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| | Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
| |
Package:export standard package.
Delivery time: 7 weekdays after get the payment.
