Lp-16 Type Connector with High Quality Performance/ Waterproof Power and Signal Connector

Name: Lp-16 Type Connector with High Quality Performance/ Waterproof Power and Signal Connector
Brand: all-electronics-online.com
SKU: 803913955
Availability: InStock
Rating: 4.8 (123 reviews)

Price:	US $ 2.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-16-C03PE-02-001, LP-20-J03SX-03-001
Rated Current:	10A
Operating Voltage (AC.V.RMS):	500V
Cable Specification:	1.0mm²~1.5mm²/18~16AWG
Diameter Range:	3mm~7mm
Contact Resistance:	<2.5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Durability:	More Than 500 Times
Connecting Mode:	Easy Locking Type
Assembly Wire:	Soldering/Crimping
Hardware:	Zinc Alloy(Pearl Hard Chrome)
Application:	Lighting System, Medical Equipment
Gender:	Male and Female

Product Description

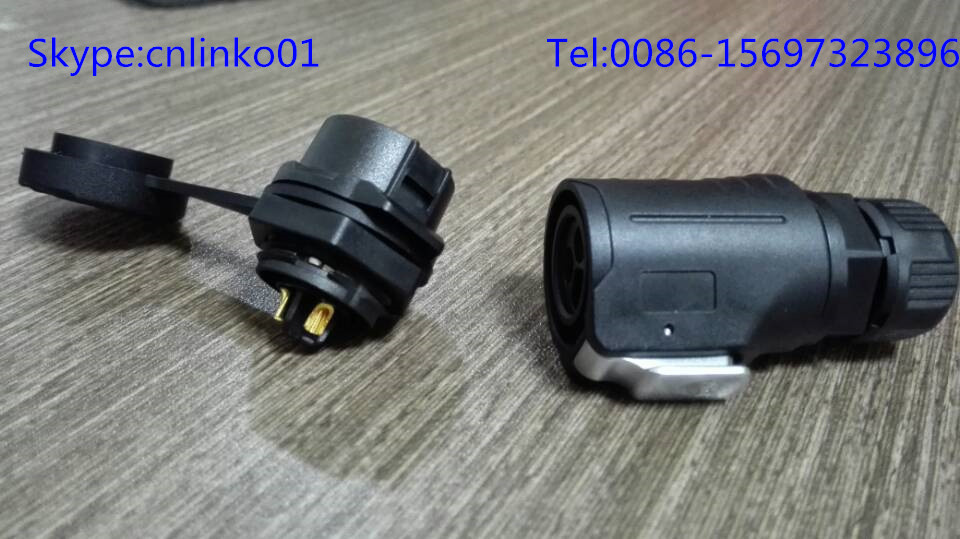

LP-16 type connector with high quality performance/ waterproof power and signal connector

LP-16 type connector are high quality and high precious with highest quality performance under harsh situation, be widely used in lighting system, Audio, Medical equipment, industrial control and testing measurement equipment and so on.

LP16 series electrical connectors IP65/IP67

Widely be used:
1: LED display
2: Led screen
3: Led lighting
4: Signal equiptment
5: Solar inverter
6: Data box

LP-16-C03PE-02-001
Specifications:
Connecting mode:	Screw connect
Protection level:	IP65/IP67
Cable specification:	2.5-4mm2 /14-12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7*3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packing and shipping:

1: 10pcs/small box, 100pcs/ middle box, 240pcs/master box
2: Lead time: 3-5 working days if have in stock, 7-10working days below 500sets
3: Shipping way: by express, by air or by sea

Customer service:

1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available
5. supply the best service to you with the contact details below:
Tel:0086-15697323896

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
