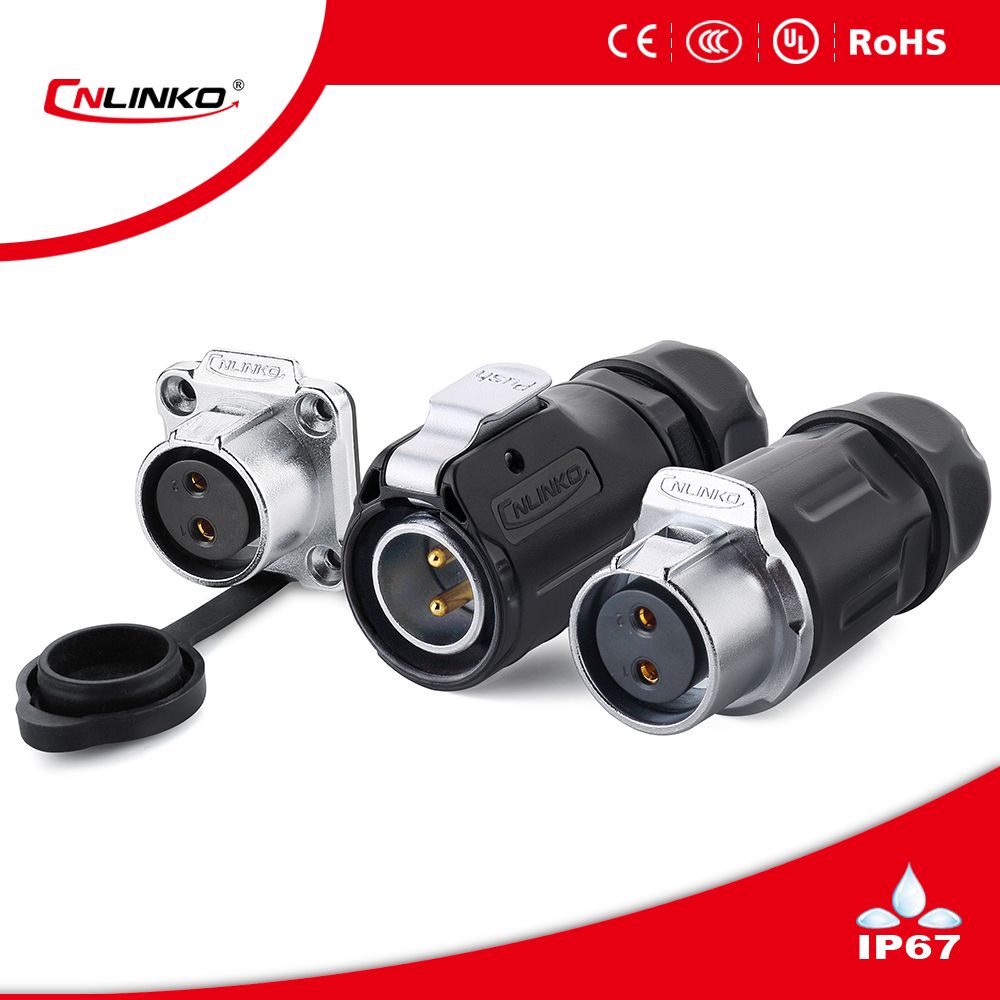

Lp-20 2 Pin Power Waterproof Connector

Name: Lp-20 2 Pin Power Waterproof Connector
Brand: all-electronics-online.com
SKU: 802097405
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	US $ 6.59-7.23/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20-C02PE-01-001, LP-20-J02PP-01-001
Application:	LED Screen Industry, AV Systems, Broadcast
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727073421_48118.jpg

LP-20 Series connector is widely used in variety of challenging environments due to its high-precision, high-quality automatic insertion, self-locking devices and waterproof, such as: LED screen industry, audio-visual equipment, medical equipment, industrial control, test and measurement equipment, AV Systems, broadcast television and communications industry and other fields.

1.Multi pin(2/3/4/5pin)for varies industrial demands,signal and power connector can be compated with each other.
2.Zinc shell and inner components against electromagnetic and radio frequency interference.
3.Gold-plated contact, high electrical Conductivity deals with temperature rise.
4.PBT shell performance stable, compression, anti-explosion and anti-deformation.
5.Unique design plug/unplug connecting.
6.4-holes for installation ensure stable; screw thread socket well comply with round holes installation.
7.Rated current: 20A/12A/5A rms.
8.Protection level: IP65/IP67.

Cable specification:	2.5mm²~4mm²/14~12 AWG
Diameter range:	Φ8mm~Φ12mm
Contact diameter × number:	Φ2.7×2
Rated Current:	20A
Operating voltage (AC.V.rms):	500V
Contact resistance:	<1mΩ
Temperature rise:	20A contact temperature below 30ºC, 25 Acontact temperature below 40ºC, 30A contact temperature below 50ºC.

Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/IP67	Durability:	>500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	plug/unplug
Assembly wire:	Crimping&solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
