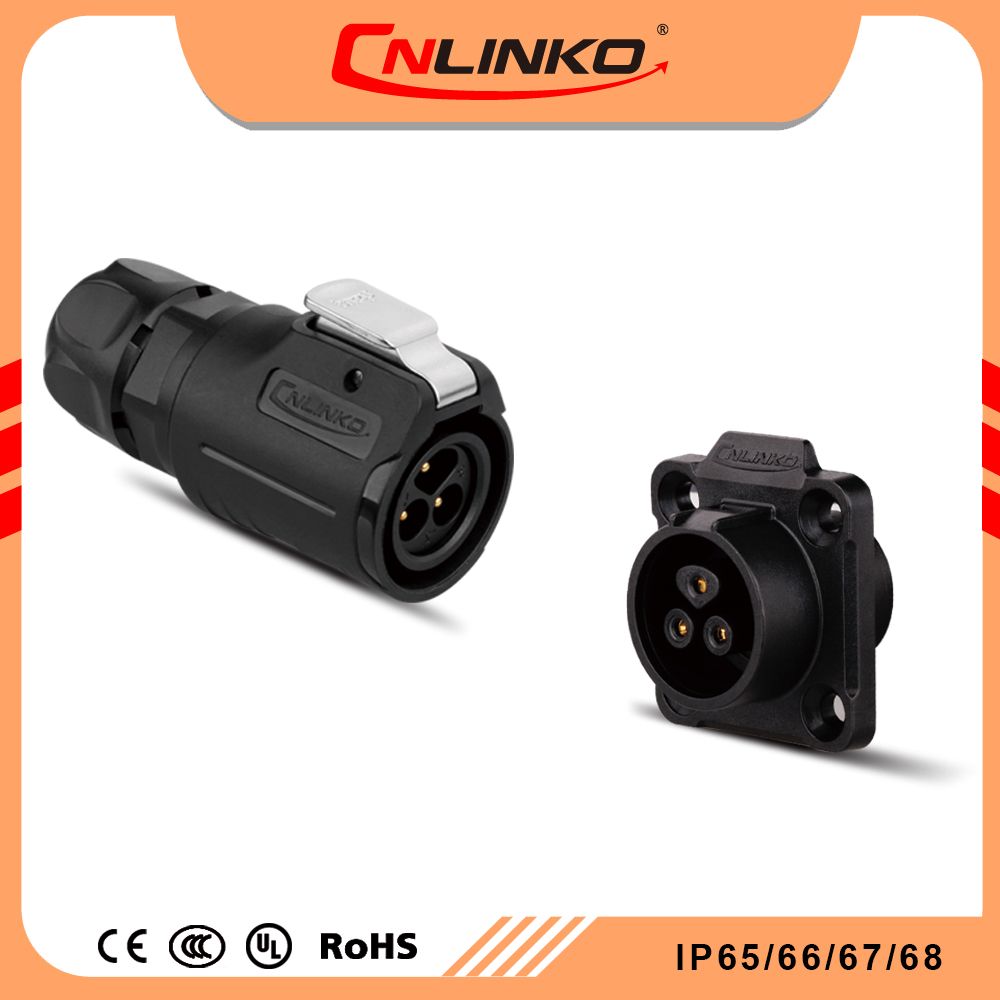

Lp Series M16 Installation Diameter 3pin Plugs and Sockets Connector IP67 3 Wires Waterproof Cable to Panel Mount Board

Name: Lp Series M16 Installation Diameter 3pin Plugs and Sockets Connector IP67 3 Wires Waterproof Cable to Panel Mount Board
Brand: all-electronics-online.com
SKU: 836265455
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	US $ 3.64/Set
Min Order:	10/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-16-C03PE-02-001; LP-16-J03SX-04-001

Product Description

Product Description

LP-16 type connector are high quality and high precious with highest quality performance under harsh situation,be widely used in lighting system,Audio,Medical equipment,industrial control and testing measurement equipment and so on.

Features:

multi-pins(2-9PINS) for varies industrial demands
Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
PBT shell performance stable, compression, anti-explosion and anti-deformation
rated current: 12A rms
protection level:IP65

LP-16-C02PE-02-001;LP-16-J02SX
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP67
Cable specification:	1.0mm2 ~ 1.5mm2 /18~16AWG
Diameter range:	Φ3mm ~Φ7mm
Contact diameter×Qty:	Φ1.5x6
Current rating(A):	10A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<2.5mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Temperature rise:
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
