Lp7110 Shear Beam Load Cell Sb Load Cell (OIML)

Name: Lp7110 Shear Beam Load Cell Sb Load Cell (OIML)
Brand: all-electronics-online.com
SKU: 828184025
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 1-30/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP7110
Usage:	Pressure Sensor
Theory:	Resistance Sensor
Rated Capacity:	0.25 / 0.5 / 1 / 2 / 5 / 10t
Creep:	±0.016%F.S
Output Impedance:	351 Ohm±2ohm
Pattern:	Shear Bam
Material:	Alloy Steel or Stainless Steel

Product Description

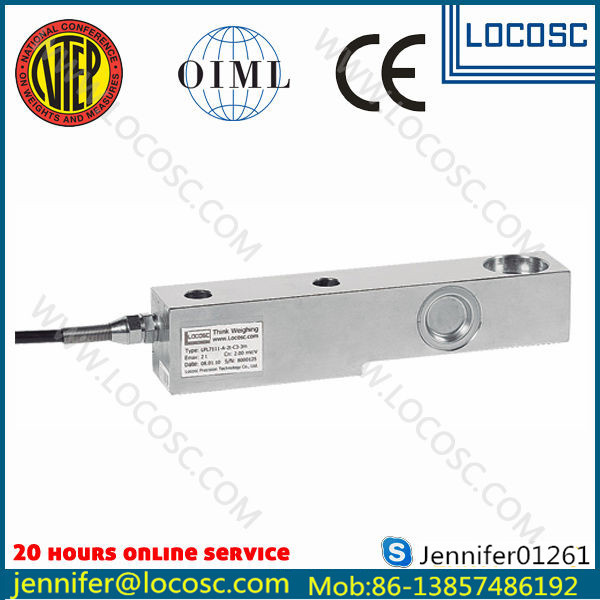

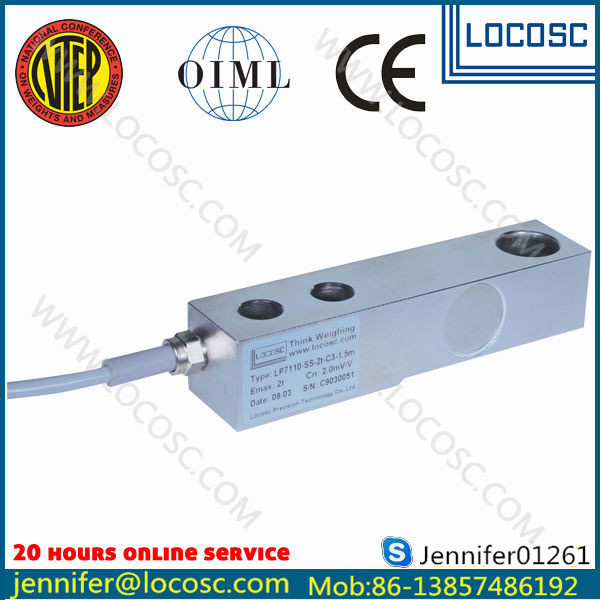

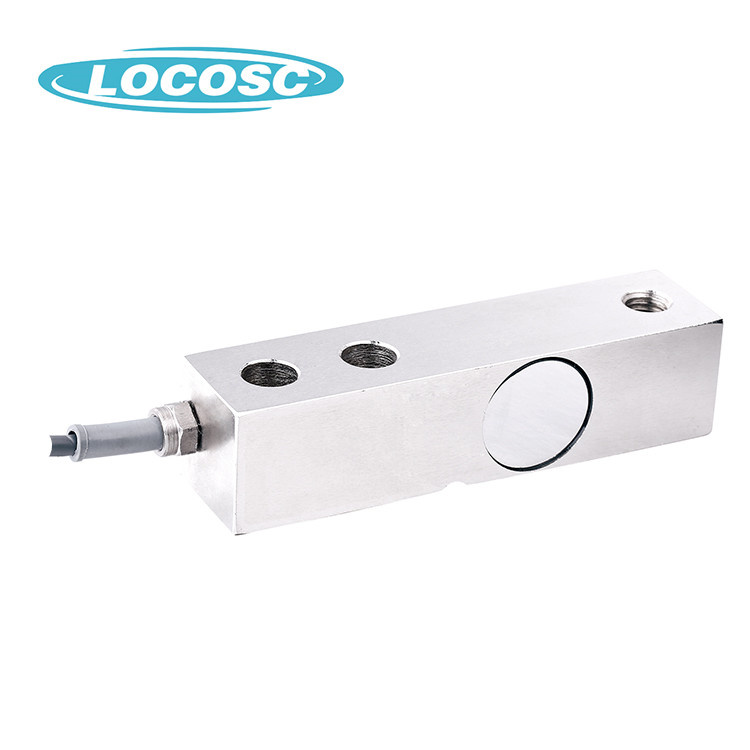

Shear Beam Load Cell
1.OIML/NTEP approval
2.Alloy steel or stainless steel

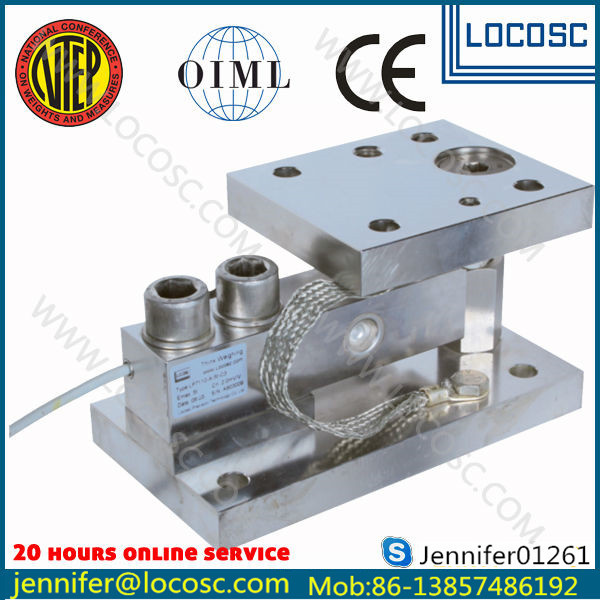

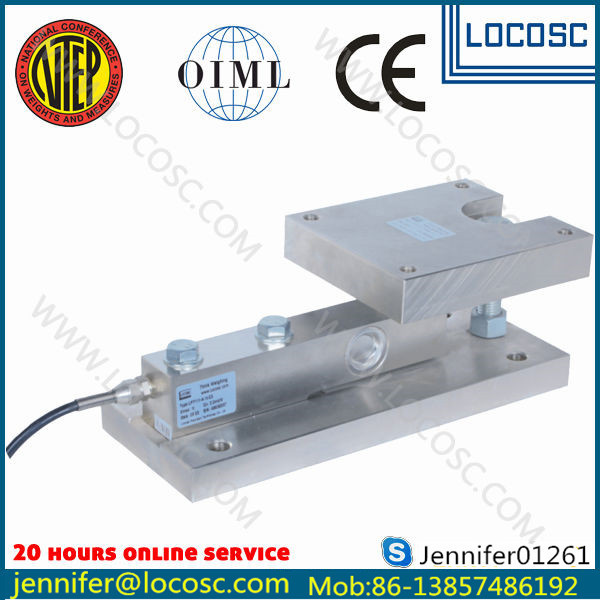

3.Suitable for floor scale, weighing module

LP7110 Shear Beam Load cell / SB load cell(NTEP OIML Approval)

Rated Capacity: 0.25 / 0.5 / 1 / 2 / 3 / 5 / 7.5 / 10 T

Accuracy Class: OIML C3 / NTEP: III, nmax: 5000, Multiple Cell

Rated Output: 3.0±0.003mv/v

Non-linearity: ±0.02% F.S

Creep(30min): ±0.016% F.S

Input Impedance: 385±10Ω

Output Impedance: 351±2Ω

Operation Temperature: -10~+40°C

Safe overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommended: 4~12VDC, Max:15vDC

Cable: 4-wire with screen; 3 meters length; Exc+( red), Exc-(black), Sig+(green), Sig-(White)

Construction: Alloy Steel or Stainless steel, IP67

Application for: Floor scales, weighing module etc.

Since its foundation in1992, Locosc focuses on designing and manufacturing weighing indicator, platform scale, load cell, truck scale, and weighing system. After years of continuous research and improvement, now we own a strong R&D team to response on various ODM and OEM requirements from our customers. Till now, , CE, NTEP, EMC, RoHS, EMC approval.

Locosc provide various weighing scales and weighing solution to whole world.

The factory covers 13, 000 square meter, over 200 people, 15 engineers.

With our rich experience in weighing field and consolidating the most competitive weighing scales in China, we provide the most qualified and reliable industrial and commercial scale for our over 300 oversea customers. And from 45 countries

Locosc precision is a company that can offer unlimited strategic advantages and infinite room for growth. It is our honor to be a company worthy of your faith and trust.

Locosc Precision is under ISO2000 system authorized by Chinese government.

Since its foundation in1992, Locosc focuses on designing and manufacturing weighing platform scale, weighing indicator, load cell, truck scale, and weighing system. After years of continuous research and improvement, now we own a strong R&D team to response on various ODM and OEM requirements from our customers. Till now, we have ISO\CE\ NTEP\ EMC\ RoHS approval.

Locosc Precision provide various weighing scales and weighing solution worldwide

The factory covers 13, 000 square meter, over 200 people, 15 engineers.

With our rich experience in weighing field and consolidating the most competitive weighing scales in China, we provide the most qualified and reliable industrial and commercial scale for our over 300 oversea customers from 45 countries

Locosc Precision can offer unlimited strategic advantages and infinite room for growth. It is our honor to be a company worthy of your faith and trust.

Locosc Precision provide international weighing solution worldwide.
