Name: Lpcb Certification Fire Alarm PVC Anti Fireproof Fire Resistant Cables
Brand: all-electronics-online.com
SKU: 796331685
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 60-75/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AW-CABLE2166
Color:	Red
Meter:	100m/Roll
Weight:	10kg
Material:	Fire Proof
Size:	21.5mm 22.5mm
Conductor Style:	Stranded
Specialty:	100% New Pure Copper
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	Lpcb
Brand:	Asenware

Product Description

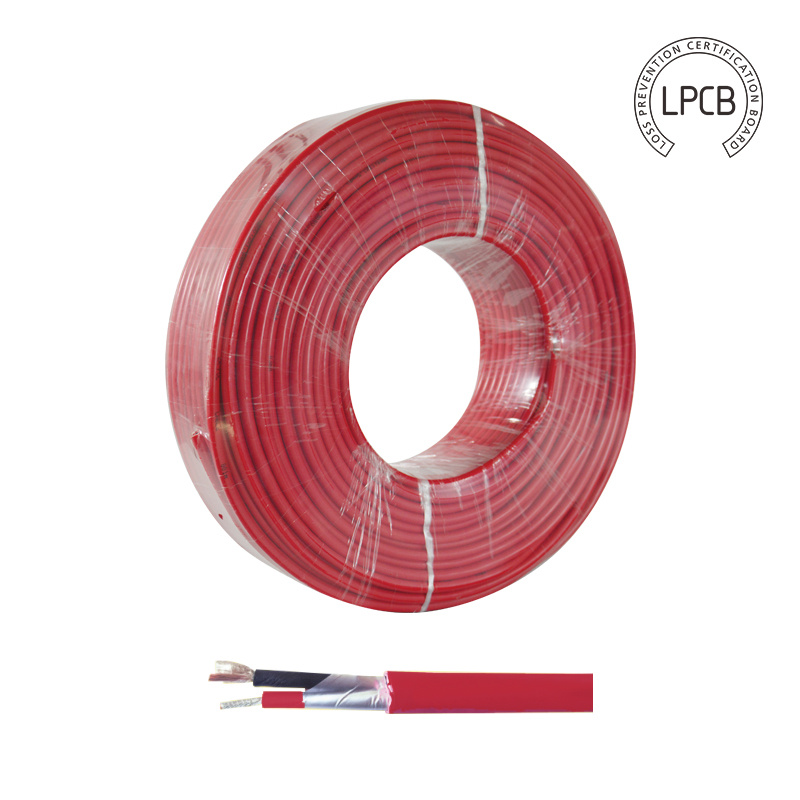

Lpcb Certification Fire Alarm PVC Anti FireProof Fire Resistant Cables

Descrip Tion

1 Solid or stranded,tinned or bare or copper conductor
2 Fire resistant PVC insulation and jacket
3 Fiberglass tape.AL foil,Pet foil,or no

Item No.	Description	Conductor Spec.	Insulation		Jacket		Approximate Cable weight	Conductor resistance	Current ratings	Voltage drop	Packing
Item No.	Description	Conductor Spec.	Nom.Thick.(m m)	Nom.Diam.(m m)	Nom.Thick.(m m)	Nom.Diam.(m m)	Approximate Cable weight	Conductor resistance	Current ratings	Voltage drop	Packing
AW-FPC208	BC/TC solid or stranded Shielded or unshielded PVC Insulation Jacke	2*0.8mm2	0.5	2.0	0.7	5.4	40KG/KM	24Ω/KM	18A	61.2 V/M	Box Coil Drum Paper reel Plastic reel Wooden reel
AW-FPC308		3*0.8mm2	0.5	2.0	0.7	5.7	51KG/KM	24Ω/KM	18A	61.2 V/M
AW-FPC408		4*0.8mm2	0.5	2.0	0.75	6.6	66KG/KM	24Ω/KM	18A	61.2 V/M
AW-FPC210		2*1.0mm2	0.55	2.25	0.75	6.2	48KG/KM	18.1Ω/KM	20A	46.2 V/M
AW-FPC310		3*1.0mm2	0.55	2.25	0.75	6.5	63KG/KM	18.1Ω/KM	20A	46.2 V/M
AW-FPC410		4*1.0mm2	0.55	2.25	0.8	7.3	80KG/KM	18.1Ω/KM	20A	46.2 V/M
AW-FPC215		2*1.5mm2	0.6	2.6	0.8	7.0	64KG/KM	12.1Ω/KM	25A	30.9 V/M
AW-FPC315		3*1.5mm2	0.6	2.6		7.4	85KG/KM	12.1Ω/KM	25A	30.9 V/M
AW-FPC415		4*1.5mm2	0.6	2.6	0.85	8.3	105KG/KM	12.1Ω/KM	25A	30.9 V/M
AW-FPC225		2*2.5mm2	0.6	3.0	0.8	7.8	87KG/KM	7.41Ω/KM	34A	18.9 V/M
AW-FPC325		3*2.5mm2	0.6	3.0	0.8	8.2	118KG/KM	7.41Ω/KM	34A	18.9 V/M
AW-FPC425		4*2.5mm2	0.6	3.0	0.85	9.2	151KG/KM	7.41Ω/KM	34A	18.9 V/M

Fire resistant cable has been specially designed and thoroughly tested to retain its durability and reliability when fire strikes.

A fire alarm system is reliant in no small part to the cabling that connects the devices and supplies power. Without reliable, robust cable the fire alarm system would be prone to costly faults and malfunctions. It is therefore essential that you only use the best cable, fitted by qualified electricians, in your fire alarm system.

In a fire emergency the fire alarm system in your building has to continue working for a significant period of time therefore circuit integrity is essential. The effects of fire could cause standard cable to melt or transmit fire to other parts of the building so it's essential to ensure that your fire alarm system cable is also fire resistant.

Fire resistant cable, or fireproof cable, will resist the effects of fire to go on working and providing communication and power throughout the fire alarm system while being exposed to fire for an impressive length of time.

Special materials used in the manufacture of fire resistant cable provides the fire resistant qualities. The cable, once complete, must meet stringent testing and regulations in order to be approved for use in fire alarm systems.

2 Core Fire Resistant Cable, for example, has a very high operating temperature. This is in part due to a low-polymer outer sheathing bonded with aluminium foil as well as fire resistant silicon core insulation. The copper cables themselves are tin annealed to improve strength and heat resistance.

AW-FPC2×1.5 Fire Proof Cable is used where critical circuits need to function to keep safety equipment running even when exposed to extreme heat or fire.

FAQ

1.Are you manufacturer?
(yes)

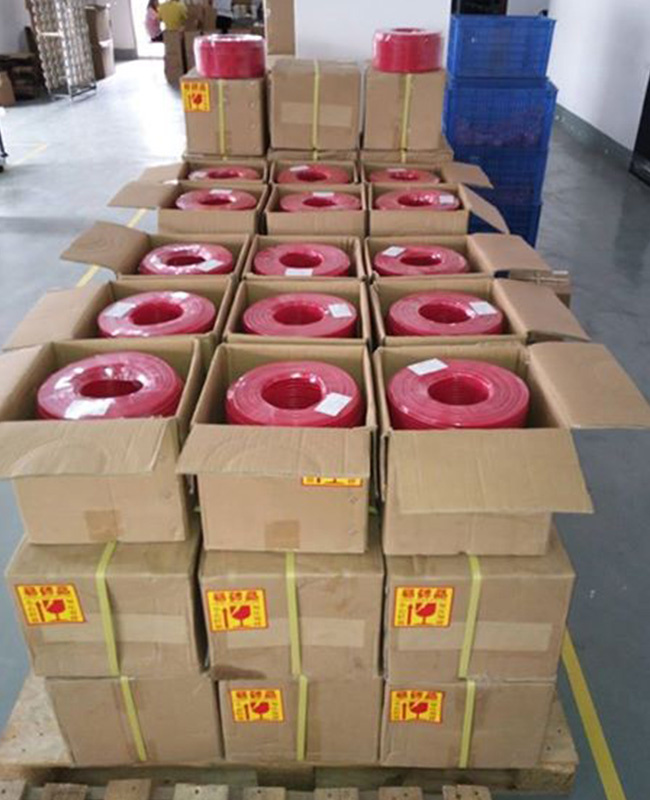

2.How do you package?
(Standard export packing including):
1) PEE bag per unit
2) Outside Cartons

3.what kind of shipment?

4. warranty
(two years)
5.Delivery time
usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
6. technical support
fire alarm and fire
fighting solutions
provider

our project list
▸ FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )

Company Information

ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.

Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system

Our fire safety products, solutions and services are used in over 100 countries.

With over 200 employees work in United Kingdom-Marketing Center, China-R&D and Supply Chain Center and Bangladesh-Manufacture Center, ASENWARE is committed to design and manufacture the best fire safety products to reduce the risk of fire, and support the world to be more safe and more comfortable.

What do we offer the world?

We focus on the high quality products and services supply only.

1. We always remember that quality is the cornerstone of our existence, and we will never reduce the quality for any reason.

2. Our products must comply with international standards, and must be stable and reliable in long term using.

3. We will continuously improve our products to be more excellent. In any time, we should not accept the poor quality results, or keep a poor quality work just because of the old experience. We should always think what is the best and how can do the best.

4. We must keep our promises for our customers, we must provide products,

Services and solutions to our customers with more than their expected.

We create value for our customers.

1. We keep invest to design and update our products, every year we have new products and new solutions for fire safety market.

2. We focus on international standard and certificate fire safety products, until now we already got LPCB, TUV, INTERTEK certificates for our different products.

3. Our products and services support wholesalers, project contractors and building owners. We set up a cloud website that can monitor all the running fire panels, every agent, contractor, owner, maintenance engineer can check the fire system real status and get emergency alarm by mobile phone or email.

4. We support project design with a high quality NFPA standard engineer team. We also support our customers at different country project sites.

Product range:

1. Addressable fire alarm system(FP100 series, 2189, 2100 series)

2. Conventional fire alarm system(2166 series)

3. FM200 gas fire suppression system

4. Emergency light system

5. Fire pump system

6. Fire hose and fire hose reel cabinet
