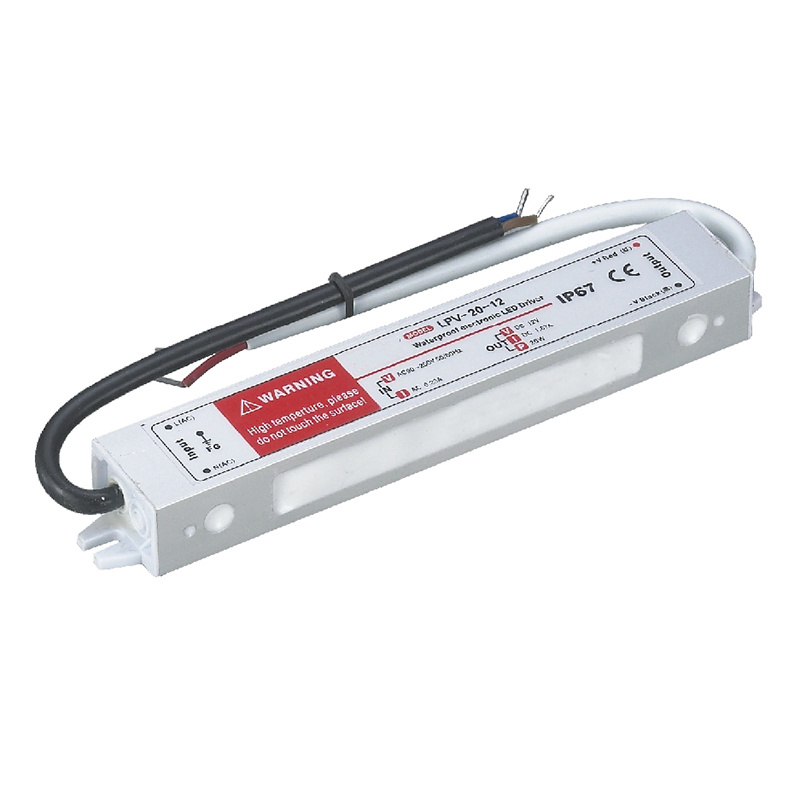

Lpv-20 Single Output SMPS Waterproof 20W Power Supply
| Price: |
US $ 4-6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LPV-20 |
| Size: |
182X30X20mm |
| Net Weight: |
0.22kg/PC |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
380V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Yumo |
Product Description
Single output: Power 20W
Input voltage: 85~264V 120~370V
Specifications: 1. CE ROHS approved
2. AC85-264V input
3.1 years warranty
Notice: a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.1 years warrenty ,buy with confidence
General Specification :
Model | LPV-20-12 | LPV-20-24 |
DC output voltage | 12V | 24V |
Output voltage error | ±1% | ±1% |
Rated output current | 1.5A | 0.8A |
Output current range | 0-1.5A | 0-0.8A |
Wave and noise | 80mVp-p | 80mVp-p |
Inlet stability | ±0.5% | ±0.5% |
Load stability | ±1% | ±0.5% |
DC output power | 20W | 20W |
Efficiency | 83% | 83% |
AC input voltage range | 170-264 VAC |
Input current | 0.5A/115V 0.25A/230V |
AC impulse current | Cold-start current 13A/115V 26A/230V |
Leakage current | <0.5mA/240VAC |
Over load protection | 105%~150% rated output power |
Protection:Hiccup mode |
Over voltage protection | 13~16V | 28~32V |
Protection:Shut down output voltage |
short circuit protection | Protection:Hiccup mode |
Temperature coefficient | ±0.03%(050) |
Setup rise hold up time | 200ms,100ms,30ms |
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH |
Working temperature and humidity | -10~+60°C, 20~90%RH |
Store temperature and humidity | -20~+85°C, 10~95%RH |
Overall dimension | 183×30×20mm |
Weight | 0.22Kgs |
Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved |
EMC | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved |

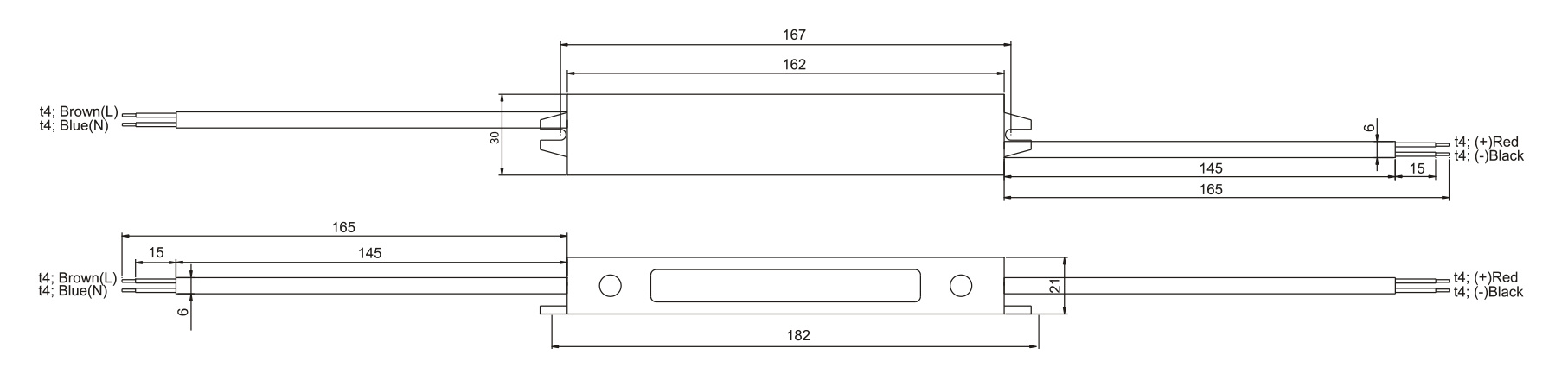

Overall Size:
