| Prod Model: |
LPV-30 |
| Size: |
222X30X20mm |
| Net Weight: |
0.25kg/PC |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
380V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Yumo |

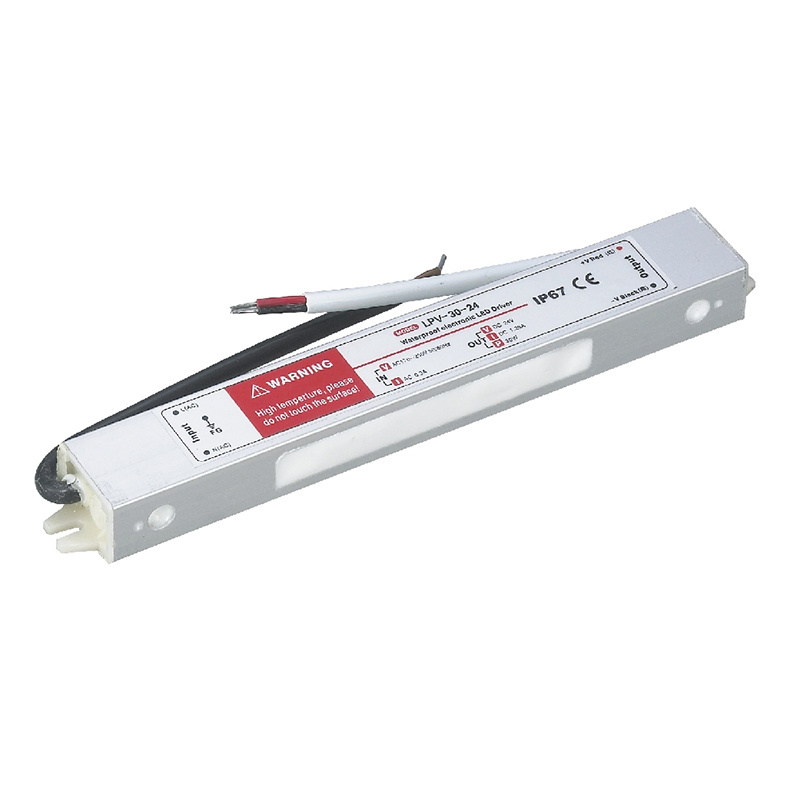

Product Description
Single output: Power 30W
Input voltage: 85~264V 120~370V
-vice rated voltage mode power supply
Had 85 ~ 264 VAC input range
Had small volume, light weight, high efficiency
Characteristics: short circuit protection miscalculates/overload/pressure/thermal
Had air cooling
Meet the IP67 miscalculates level
Had 100% full load test machine and
Had 1 years quality assurance
Size: 220 x 30 x 20 mm
Specifications: 1. CE ROHS approved
2. AC85-264V input
3.1 years warranty
Notice: a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.1 years warrenty ,buy with confidence
General Specification :
model | LPV-30-12 | LPV-30-24 | LPV-30-36 |
| output | Dc output voltage | 12V | 24V | 36V |
Output voltage tolerance | ±1% | ±1% | ±1% |
Rated output current | 2.5A | 1.25A | 0.8A |
Output current range | 0-2.5A | 0-1.25A | 0-0.8A |
Output power | 30W | 31W | 29W |
Ripple and the noise | 100mVp-p | 100mVp-p | 150mVp-p |
Dc voltage adjustable scope | ±10% | ±10% | ±10% |
Start, rise, keep time | 100ms,60ms/230VAC |
| input | Input voltage range | 85~264VAC 47~63Hz,120~370VDC |
Exchange input current | 0.42A/230VAC |
efficiency | 78% | 80% | 82% |
Impulse current | Cold start current 30A/230VAC |
Leakage current | <0.5mA/240VAC |
| Protection characteristics | Overload protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery |
| environment | Working temperature, humidity | -10ºC~+60ºC;20%~90%RH(Please refer to reduce the specified number load curve ) |
Keep temperature, humidity | -20ºC~+85ºC;10%~95%RH No condensation |
Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis |
| security | Compression sex | Between input and output :1.5KVAC |
Insulation resistance | Between input and output :100M Ohms/500VDC |
| Standards | Safety standards | Accord with UL1012 |
EMC standard | Accord with EN55022,CLASSA |
| other | weight | 0.25kg 222*30*20(L*W*H) |
packaging | 0.25kg/80pcs/20kg |
| note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ºC conditions measuring income value.
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. |

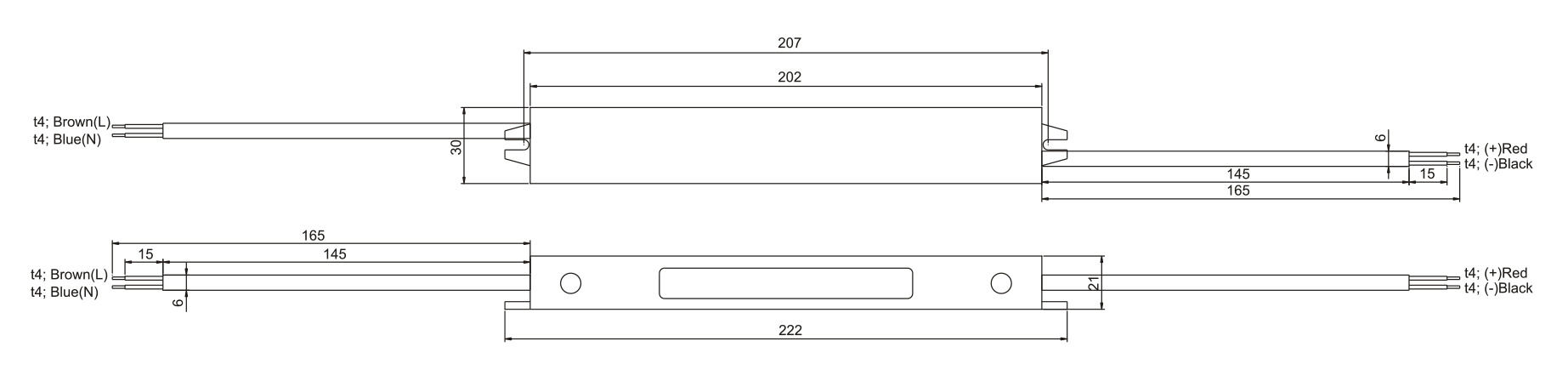

Overall Size:
