Lr1-D, Jrs1 Thermal Relay

Name: Lr1-D, Jrs1 Thermal Relay
Brand: all-electronics-online.com
SKU: 133904
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LR1-D, JRS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Lr1-D
Protect Feature:	Sealed
Contact Load:	Low Power
Rated Insulation Voltage:	660V
Rated Current:	48-57A
Certification:	Ce, ISO9001
Place Of Origin:	Zhejiang, China (Mainl

Product Description

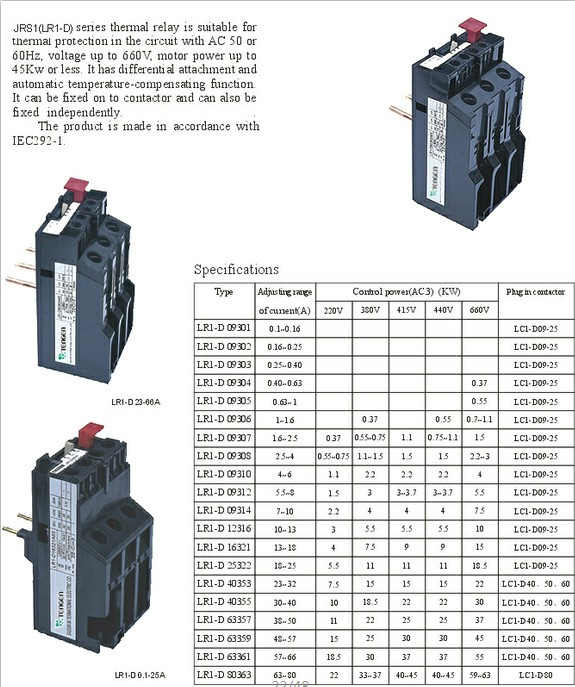

LR1-D Series new thermal relays are suitable in circuit of AC 50Hz voltage up to 660 and electric power under 45KW for thermal overload protection. It has temperature compensation component. They can be fixed with contactor together and be independently installed as well.

Type	Adjusting range of current (A)	Control power(AC3)(KW)					Plug in contactor
Type	Adjusting range of current (A)	220V	380V	415V	440V	660V	Plug in contactor
LR1-D 09301	0.1~0.16	.	.	.	.	.	LC1-D09-25
LR1-D 09302	0.16~0.25	.	.	.	.	.	LC1-D09-25
LR1-D 09303	0.25~0.40	.	.	.	.	.	LC1-D09-25
LR1-D 09304	0.40~0.63	.	.	.	.	0.37	LC1-D09-25
LR1-D 09305	0.63~1	.	.	.	.	0.55	LC1-D09-25
LR1-D 09306	1~1.6	.	0.37	.	0.55	0.7~1.1	LC1-D09-25
LR1-D 09307	1.6~2.5	0.37	055~0.75	1.1	0.75~1.1	1.5	LC1-D09-25
LR1-D 09308	2.5~4	055~0.75	1.1~1.5	1.5	1.5	2.2~3	LC1-D09-25
LR1-D 09310	4~6	1.1	2.2	2.2	2.2	4	LC1-D09-25
LR1-D 09312	5.5~8	1.5	3	3~3.7	3~3.7	5.5	LC1-D09-25
LR1-D 09314	7~10	2.2	4	4	4	7.5	LC1-D09-25
LR1-D 09316	10~13	3	5.5	5.5	5.5	10	LC1-D09-25
LR1-D 16321	13~18	4	7.5	9	9	15	LC1-D09-25
LR1-D 25322	18~25	5.5	11	11	11	18.5	LC1-D09-25
LR1-D 40353	23~32	7.5	15	15	15	22	LC1-D405060
LR1-D 40355	30~40	10	18.5	22	22	30	LC1-D405060
LR1-D 63357	38~50	11	22	25	25	37	LC1-D405060
LR1-D 63359	48~57	15	25	30	30	45	LC1-D405060
LR1-D 63361	57~66	18.5	30	37	37	55	LC1-D405060
LR1-D 80363	63~80	22	33~37	40~45	40~45	59~63	LC1-D80

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
