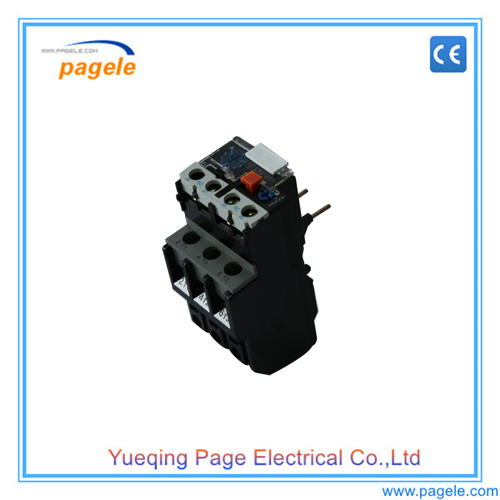

LR2-D13 Thermal Overload Relay for Contactor

Name: LR2-D13 Thermal Overload Relay for Contactor
Brand: all-electronics-online.com
SKU: 792651985
Availability: InStock
Rating: 5 (149 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LR2-D13
Material:	PA66 Nylon
Silver:	50%, 85% Silver
Voltage:	AC220V
Contact:	Welding
Certificate:	Ce
Main Circuit Rating Voltage:	380V
Main Circuit Rating Current:	100A

Product Description

LR2-D thermal overload relay for Contactor

LR2-D series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation& can be pluged in LC1 series AC contactor.

A. Fundamental parameter of the main circuit
Rated insulation voltage 660V;
Rated working current 25, 36, 93A separately;
The regulator seal of rate setting current and setting.
Current of the thermal component
B. Auxiliary circuit
There is a pair of NO and NC contact with electric insulation;
Rated insulation voltage 500V;
Rated frequency 50-60Hz;
Use group, rated working voltage, appoint thermal current and rated current.

LR2-D Thermal overload relay Technical Data

Type	Rated working current of thermal relay		Thermal component Scale of rated current(A)
LR2-13	25	1301	0.10-0.16
		1302	0.16-0.25
		1303	0.25-0.40
		1304	0.40-0.63
		1305	0.63-1.0
		1306	1.0-1.6
		13×6	1.25-2.0
		1307	1.6-2.5
		1308	2.5-4.0
		1310	4.0-6.0
		1312	5.5-8.0
		1314	7.0-10.0
		1316	9.0-13.0
		1321	12.0-18.0
		1322	17.0-25.0
LR2-23	36	2353	23.0-32.0
LR2-23	36	2255	28.0-36.0
LR2-33	93	3353	23.0-32.0
		3355	30.0-40.0
		3357	37.0-50.0
		3359	48.0-65.0
		3361	55.0-70.0
		3363	63.0-80.0
		3365	80.0-93.0

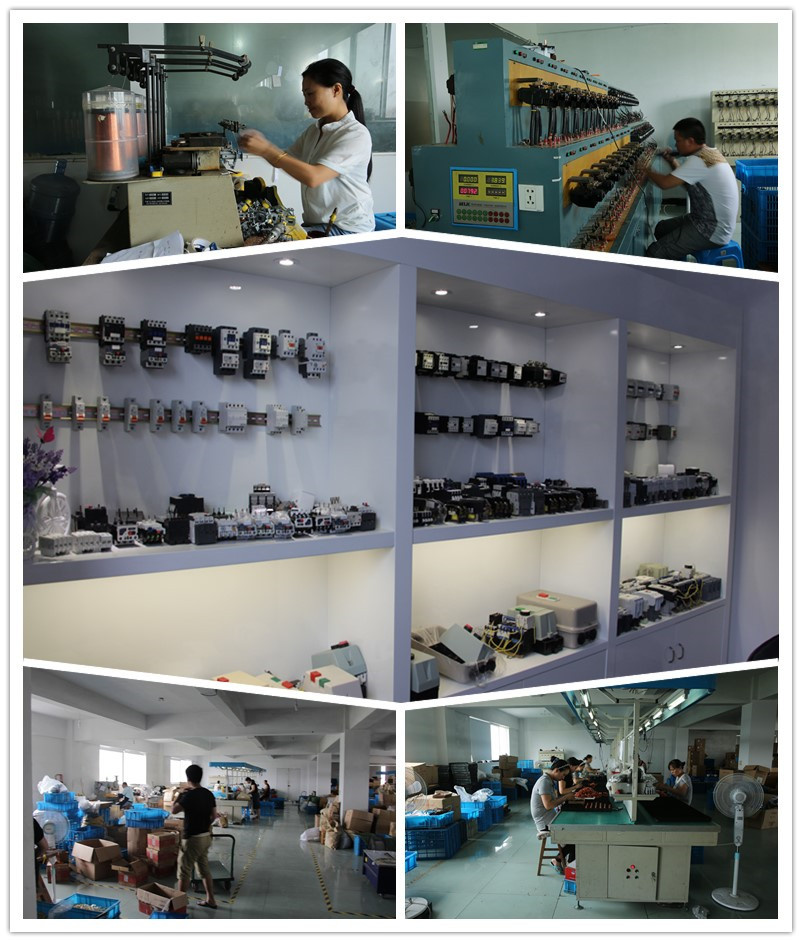

The under is our workshop, all contactors and thermal relays are good assembled and tested before ship.

Welcome to PAGE. We located in wenzhou city, where manufacture all of electrical goods for the distribution system.

With many years of the development, the company has its more focus on energy saving technologies and products.

Our vision is to become the best supplier who can assist customers with the maintenance products to get the market.

We believe that the values of integrity, honesty, good customer service and innovation will make us to be your best

Partner in the years to come, and we also believe in selecting partners that have the same values that we have.

"Quality is not an option, it is an obligation", forever to insist in our business attitude.
