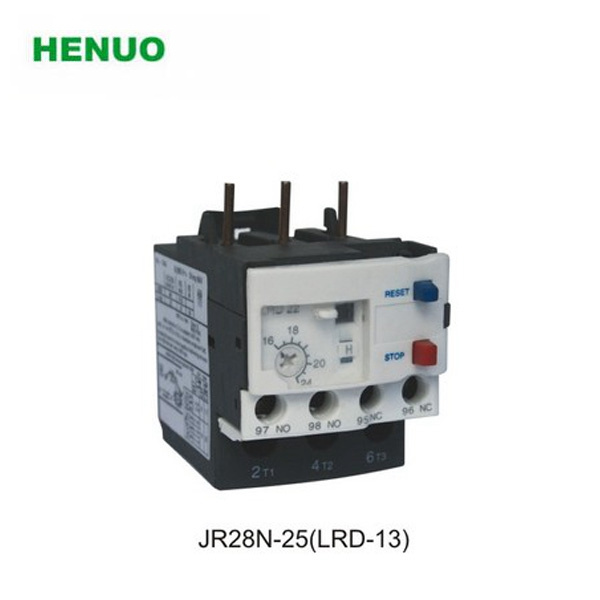

Lrd Thermal Relay

Lrd Thermal Relay
Price: US $ 1.4-1.9/Piece
Trade Terms: FOB
Min Order: 200/Piece
Pay Type: L/C,T/T
Prod Model: LRD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number: Lr2-D
Protect Feature: Thermal
Color: Black
Rated Thermal Current: 0.1~630A
Contact Load: Low Power
Rated Voltage: 660/1000V
Guarantee Period: 24months
Rated Frequently: 50/60Hz
Place Of Origin: Zhejiang, China (Mainl

Product Description

LRD series new thermal rerays are suitable in circuit of AC 50Hz voltage up to 660V and electric power under 45KW for thermal overload protection. It has temperature compensation component. They can be fixed with contactor together, and be independently installed as well.
Reference

Setting Current
Range

aM

gG

BS88

LRD01

0.1-0.16

0.25

2

-

LRD02

0.16-0.25

0.5

2

-

LRD03

0.25-0.40

1

2

-

LRD04

0.40-0.63

1

2

-

LRD05

0.63-1

2

4

-

LRD06

1-1.7

2

4

6

LRD07

1.6-2.5

4

6

10

LRD08

2.5-4

6

10

16

LRD10

39909

8

16

16

LRD12

5.5-8

12

20

20

LRD14

40004

12

20

20

LRD16

40069

16

25

25

LRD21

40165

20

35

32

LRD22

16-24

25

50

50

LRD32

23-32

40

63

63

LRD35

30-38

50

80

80

LRD3322

17-25

25

50

50

LRD3353

23-32

40

63

63

LRD3355

30-40

40

100

80

LRD3357

37-50

63

100

100

LRD3359

48-65

63

100

100

LRD3361

55-70

80

125

125

LRD3363

63-80

80

125

125

LRD3365

80-104

100

160

160

LRD4365

80-104

125

200

160

LRD4367

95-120

125

200

200

LRD4369

110-140

160

250

200

LRD33656

80-104

100

160

160

LRD33676

95-120

125

200

200

LRD33696

110-140

160

250

200
