Lrs-150-12 150W Single-Output Enclosed Type Power Supply
| Price: |
US $ 8-15/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LRS-150-12 |
| DC Output Voltage,Current: |
12V, 12.5A |
| Adjustable Range For DC Voltage: |
±10% |
| Impact Current: |
Cold Start Current 15A/115VAC 30A/230VAC |
| Setup,Rise,Hold Up Time: |
200ms, 50ms, 20ms/230VAC at Full Load |
| Weight: |
0.5kg |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
85 ~ 132VAC / 170 ~ 264VAC by SwitchT240 ~ 370VDC( |
| Brand: |
Yumo |
| Modulation System: |
Switching Power Supply |
Product Description

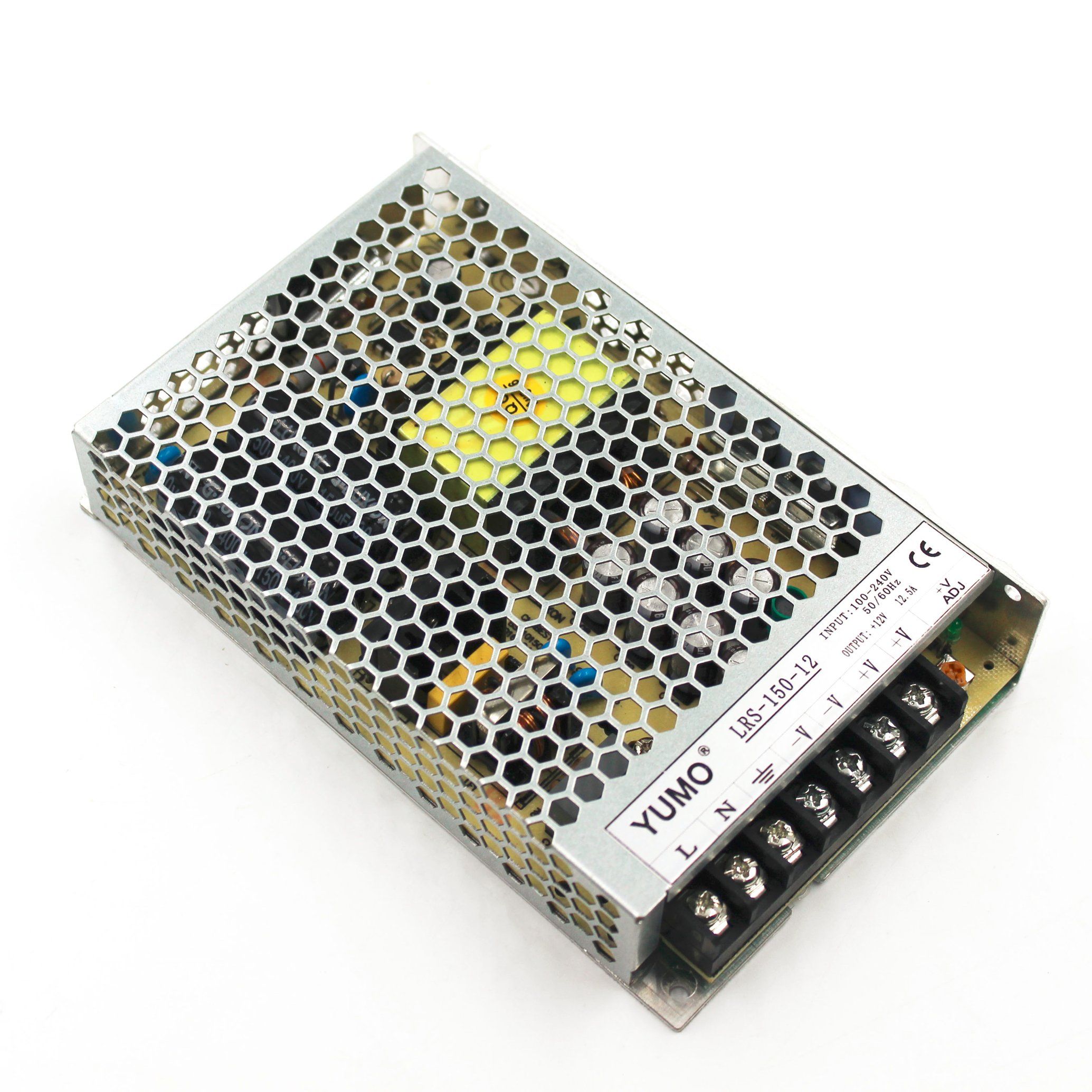

LRS-150-12 150W single-output enclosed type power supply
Features•AC input range selectable by switch•Withstand 300VAC surge input for 5 second•No load power consumption<0.5W•Miniature size and 1U low profile•High operating temperature up to 70ºC•Protections: Short circuit / Overload / Over voltage / Over temperature
•Cooling by free air convection•Compliance to lEC/EN 60335-1(PD3} and lEC/EN61558-1, 2-16 for household appliances
•Operating altitude up to 5000 meters•Withstand 5G vibration
test•High efficiency, long life and high reliability•LED indicator for power on
•100% full load burn-in test•3 years warrantyApplications•lndustrial automation machinery•lndustrial control system•Mechanical and electrical equipment•Electronic instruments, equipments or apparatus
•Household appliancesDescriptionLRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design.Adopting the input of 115VAC or 230VAC(selectable by switch}, the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.ln addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30ºC through 70ºC under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W}, it allows the end system toeasily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series serves as a high price-to- performance power supply solution for various industrial applications. MODEL | LRS-150-12 | LRS-150-15 | LRS-150-24 | LRS-150-36 | LRS-150-48 |
OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 36V | 48V |
RATED CURRENT | 12.5A | 10A | 6.5A | 4.3A | 3.3A |
CURRENT RANGE | 0 ~ 12.5A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 4.3A | 0 ~ 3.3A |
RATED POWER | 150W | 150W | 156W | 154.8W | 158.4W |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p |
VOLTAGE ADJ. RANGE | 10.2 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 32.4 ~ 39.6V | 43.2 ~ 52.8V |
VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
LOAD REGULATION Note.5 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load |
HOLD UP TIME (Typ.) | 40ms/230VAC 35ms/115VAC at full load |
INPUT | VOLTAGE RANGE | 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) |
FREQUENCY RANGE | 47 ~ 63Hz |
EFFICIENCY (Typ.) | 87.5% | 88.5% | 89% | 89% | 90% |
AC CURRENT (Typ.) | 2.8A/115VAC 1.6A/230VAC |
INRUSH CURRENT (Typ.) | COLD STAR 60A/230VAC |
LEAKAGE CURRENT | <0.75mA / 240VAC |
PROTECTION | OVER LOAD | 110 ~ 140% rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
OVER VOLTAGE | 13.8 ~ 16.2V | 18.75 ~ 21.75V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |
Protection type : Shut down o/p voltage, re-power on to recover |
OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
ENVIRONMENT | WORKING TEMP. | -30 ~ +70ºC (Refer to "Derating Curve") |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
STORAGE TEMP., HUMIDITY | -40 ~ +85ºC, 10 ~ 95% RH |
TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) |
VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
SAFETY & EMC (Note 7) | SAFETY STANDARDS | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 approved |
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/ 70% RH |
EMC EMISSION | Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2Class A(≤75% Load),EN61000-3-3 |
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A |
OTHERS | MTBF | 601K hrs min. MIL-HDBK-217F (25ºC) |
DIMENSION | 159*97*30mm (L*W*H) |
PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT |
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMl testing of component power supplies." (as available on http://www.meanwell.com} 8. The ambient temperature derating of 5ºC/1000m is needed for operating altitude greater than 2000m (6500ft}. |
