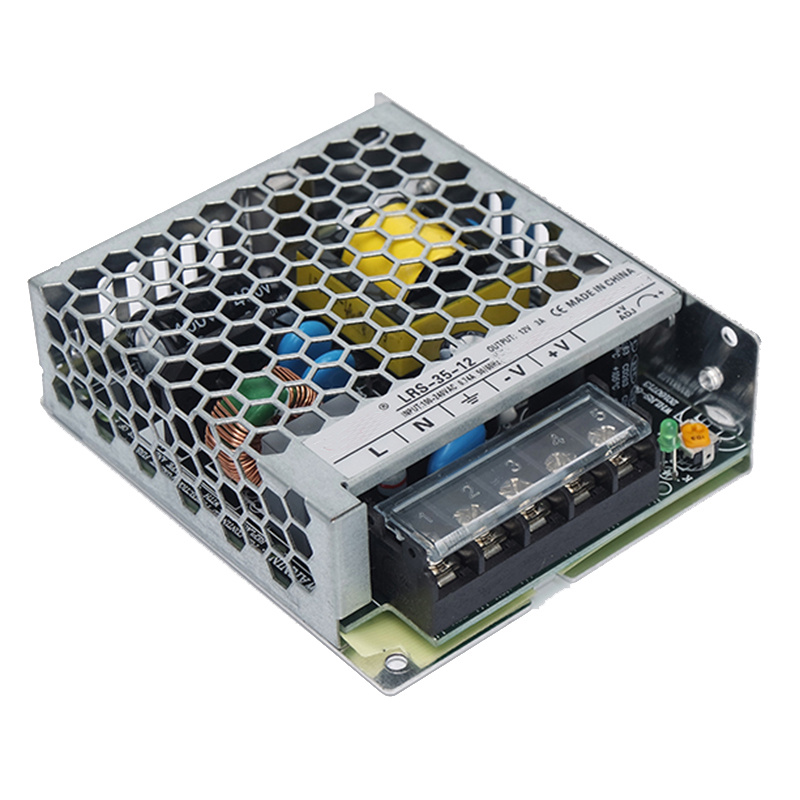

| Prod Model: |
LRS-35 |
| Size: |
99*82*30mm |
| Net Weight: |
0.23kg/PC |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
380V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Yumo |
Product Description
1.Universal AC input/Full range
2.Protection:Short circuit/Overload/Over voltage
3.Cooling by free air convection
4.High efficiency , long life and high reliability
5.100% full load burn-in test
6.High operating temperature up to 60ºC
7.Withstand 300VAC surge input for 5 second
8. No load power consumption<0.2W
9. Operating altitude up to 5000 meters
10. LED indicator for power on
11. 1 years warranty
1. CE ROHS approved
2. AC85-264V input
3.1 years warranty
Notice: a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.1 years warrenty ,buy with confidence
General Specification :
Model | LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 |
Dc output voltage | 5V | 12V | 15V | 24V | 36V | 48V |
Rated output current | 7A | 3A | 2.4A | 1.5A | 1A | 0.8A |
Output current rage | 0-7A | 0-3A | 0-2.4A | 0-1.5A | 0-1A | 0-0.8A |
Rated Power | 35W | 36W | 36W | 36W | 36W | 38.4W |
Wave and noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p |
Voltage ADJ. range | 4.5-5.5V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 32.4-39.6V | 43.2-52.8V |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Efficiency | 82% | 86% | 86% | 88% | 88% | 89% |
AC input voltage range | AC85~264V 47~63Hz;120~373VDC |
Input current | 0.7A/115V 0.42A/230V |
AC INnrush current | Cold-start 45A/230V |
Overload proctection | 110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd |
Over-voltage protection | 5.75-6.9V | 13.8-16.2V | 18.75-21.75V | 28.8-33.6V | 41.4-48.6V | 55.2-64.8V |
Potection type :Shut down o/p voltage,re-power on to recover |
Setup rise time | 1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod |
Hold up time | 30ms/230VAC ,12ms/115VAC at full lod |
Withstand voltage | I/P-O/P:3KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC |
Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH |
Working temperature | -20°C~+60°C |
Overall dimension | 99*82*30mm |
Safety standards | Meet ULGB4943 UL60950 EN60950 |
EMC standards | Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B |
Weight | 0.23Kgs |
