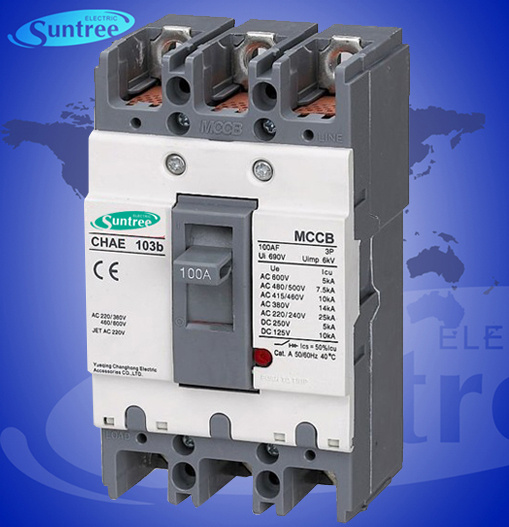

Ls 3 Poles MCCB 100A 3pole Moulded Case Circuit Breaker Ls MCCB 3pole 100 AMP Abe103b 3p 100A

Prod Model:	ABE103b
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	690V
Certificate:	Ce-LVD, RoHS
Rated Working Current:	12.5 to 1250A
Rated Insulating Voltage:	950V
All Standard:	IEC947-2
Pole:	2 3 4
DC:	125V/250V/500V/1000V
Similar:	Abe MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CE
Structure:	Moulded Case Circuit Breaker
Poles Number:	3p, 4p

Product Description

Keyword:2P,3P(3P+N),4Pole, Apply for isolator switch, Electric and thermal magnetic tripping device,
Provide miniature circuit breaker lockouts,Similar LS ABE MCCB.

LS ABE MCCB   :
· Suitable for industrial or commercial power and lighting with AC 50/60Hz,rated working voltage up to AC600V/DC 250V,rated current up to 400A.
· Its a kind of economical breaker with the characters of stable and reliable function,beautiful appearance,small size and long life.It  can be used for conversion of line and infrequent starting motor.
· It can also be attached to install the accessories which have protection function for avoiding loss-voltage,undervoltage.
· The product can install connection line with front board and back board,it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Working conditions of  LS ABE MCCB
1. Not over altitude 2000m;
2. Ambient temperature is between-25°C and +40°C ; Working in the medium which not any explosive, not enough dielectric to corrode metal, no gas to damage
insulation and electric conduction dust;
3. Working in the place would not be invaded by rain and snow; 3. Pollution degree3; 4. Mounting type.

Classification of  LS ABE MCCB

1) According to using: distribution circuit protection type, motor production type;
2) According to connection mode: front panel connection, back panel connection, plug-in connection;
3) According to operating way: for direct handle operating, for motor operator operating, for rotary handle operating.
4) According to the number of pole: 3,4 pole.
5) According to the accessory: with accessory setting, and without accessory setting.

Technical features of  LS ABE MCCB
Complete range of current ratings which enable users to solve all protection requirements of installation:
with high short-circuit breaking capacity
B-Basic type: general breaking capacity
N-Ordinary type: ordinary breaking capacity
S-Standard type: standard breaking capacity
H-Higher breaking type: higher breaking capacity

Type	Num ber of poles	Rated current in(A)	Ultimate short circuit breaking capacity (KA),Icu
			DC		AC50/60HZ
			125V	250v	220/240V	380V	415V	440/460V	480/500v	600v
ABE52b	2	10,15,20,30,40,50	5	2.5	10	7.5	5	5	2.5	2.5
ABE53b	3	10,15,20,30,40,50	5	2.5	10	7.5	5	5	2.5	2.5
ABE54b	4	10,15,20,30,40,50	5	2.5	10	7.5	5	5	2.5	2.5
ABE102b	2	10,15,20,30,40,50,60,75,100	10	5	25	14	10	10	7.5	5
ABE103b	3	10,15,20,30,40,50,60,75,100	10	5	25	14	10	10	7.5	5
ABE104b	4	10,15,20,30,40,50,60,75,100	10	5	25	14	10	10	7.5	5
ABE203b	3	100,125,150,175,200,225(250)	15	10	35	18	18	18	10	7.5
ABE403b	3	250,300,350,400	20	10	35	30	25	25	18	18
