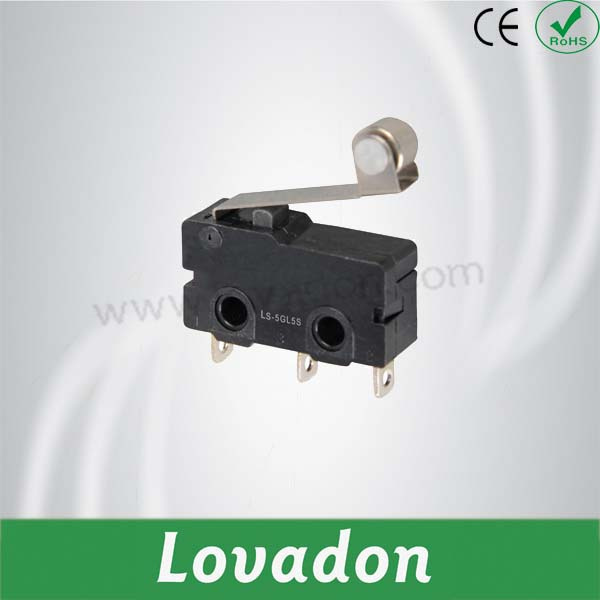

Ls-5gl5s High Precision Automation Limit Switch Micro Switch

Name: Ls-5gl5s High Precision Automation Limit Switch Micro Switch
Brand: all-electronics-online.com
SKU: 753029955
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-5GL5S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressing Type:	Spring Roller
Size:	Normal Size
Breaking Capacity:	General Type
Breaking Form:	Single Type
Protection:	Waterproof, Dustproof
Application:	The Floating Ball Equipment, Medical Equipment, Bu
Brand:	Lovadon

Product Description

LS Series Micro Switch
High-precision micro-switch
Feature:
1.Operating position accuracy, small contact spacing, the action is fast, sensitive, PT move small.
2.Long life.

Models	LS-5G	LS-5GL	LS-5GL3	LS-5GL4	LS-5GL5S
OF Max.	0.49N (50gf)	0.16N (16gf)	0.16N(16gf)	0.16N(16gf)	0.16N(16gf)
RF Min.	0.04N(4gf)	0.02N (2gf)	0.02N (2gf)	0.02N (2gf)	0.02N (2gf)
PT Max.	0.5mm	3.1mm	2.8mm	2.8mm	2.8mm
OT Min.	0.5mm	1.4mm	1.2mm	1.2mm	1.2mm
MD Max.	0.2mm	0.8mm	0.8mm	0.8mm	0.8mm
OP	8.4+-0.5mm	8.8+-0.8mm	14.5+-0.8mm	12.2+-0.8mm	14.5+-0.8mm

Performance parameters
Project	Classification	Parameters
Current		5A,3A
voltage		125VAC,250VAC
Allows the operating speed		0.1mm-1m/s
Allow the on-off frequency		Mechanics:400times/min Electrical:30times/min
Insulation resistance		>100MΩ(Use DC500V insulation resistance test. )
Contact resistance		In the early 30MΩ within.
Resistance to breakdown voltage	Non connection between terminals.	AC1000V 50/60Hz one minute
	Among the non charged metal parts and each terminal	AC1500V 50/60Hz one minute
	Between the ground and each terminal
Seismic resistance	False action,	Double breadth 1.5mm 10~50Hz
Impact resistance	Durability	100m/s
	False action,	300m/s
Life	Electrical life (resistive load)	>100,000 times
	Mechanical life (prescribed overtravel)	>10,000,000 times
The use of the environment temperature, humidity		-25~+80ºC(Do not freeze),35%~85% RH
