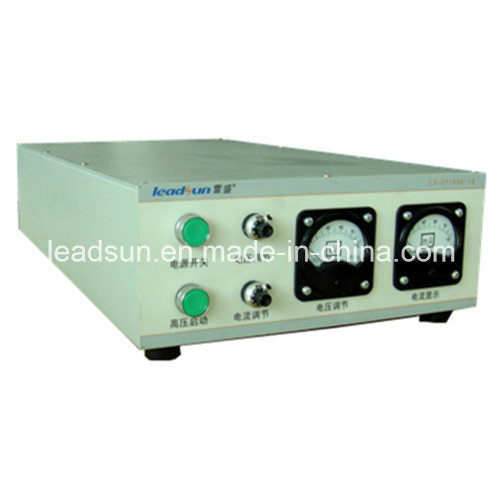

LS-Esp 200KV/50mA 220V AC High Voltage Switching Power Supply

Prod Model:	LS-ESP 200KV/50mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L*H*B:	750*370*250mm
Ambient Temperature:	-20oc~50oc
Cooling:	Air Cooling
Work Frequency:	50kHz
Output Type:	Single
Warranty:	1 Year
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Power:	10kw
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply LS-ESP 200KV/50mA
Specifications

Item	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	10KW	Full load, output Umax, Imax
Rated output voltage	200KV
Rated output current	2mA
Comparative voltage control accuracy	0.5%	Uo=80%Umax
Absolute voltage control accuracy	1.5%	Uo=80%Umax
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 1.5%
Voltage output range	20~200KV adjustable
Output limiting current	50mA
Warm start time	<0.5 Second
Cool start time	<8 Second
Control response time	Better than 20mS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value  Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	50kHZ
Converting efficiency	Better than 80%	Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate	0.1%	25~50mA
Ripple Coefficient	Less than 1%
Current and voltage program mode	10 circles potentiometer with indicator
Dimension	750*370*250mm   L*B*H

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
