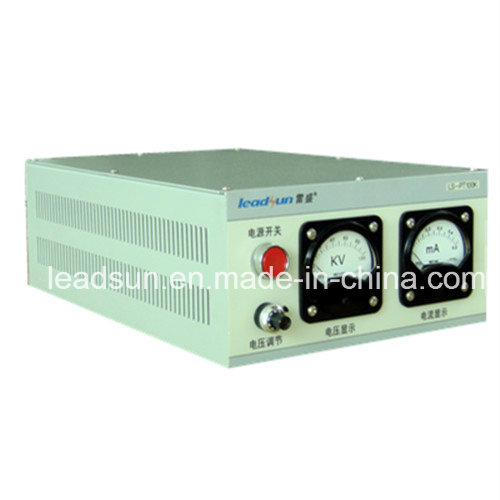

Ls160kv/2mA Wholesale Factory High Voltage High Efficient Power Supply

Ls160kv/2mA Wholesale Factory High Voltage High Efficient Power Supply
Price: US $ 2200-2700/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: LS160KV/2mA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output Voltage: 160kv
Ambient Temperature: -20oc~50oc
Cooling: Air Cooling
Work Frequency: 40kHz
Output Type: Single
Warranty: 1 Year
Output Power: 301 - 400W
Input Voltage: 220V
Connection Mode: Series Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CE
Starting Mode: Soft Start
Brand: Leadsun

Product Description

High Frequency High Voltage Power Supply LP80KV-70mA
Specifications
ItemParametersRemarks
Input voltage220V ACWave less than 10%
Rated power320WFull load, output Umax, Imax
Rated output voltage160KV
Rated output current2mA
Comparative voltage control accuracy0.1%Uo=80%Umax
Absolute voltage control accuracy0.5%Uo=80%Umax
Voltage/temperature coefficient20V/1K
Voltage program accuracyBetter than 0.5%
Voltage output range50-160KV adjustable
Output limiting current2mA
Control response timeBetter than 50mS
Ambient temperature-20 ~ 50ºC
Ambient humidity10% ~ 90% no atomization
CoolingAir cooling
StartingSoft start
Constant voltage control modePhase-shifting PWM
Current control modeConstant current of average value
Peak value testing		Within 100nS peak value loading, cut off and restart automatically
Working frequency40kHZ
Converting efficiencyBetter than 80%Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate0.1%1mA-à2mA
Ripple CoefficientLess than 1%
Current and voltage program modeBy potentiometer
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
