LSOH Halogen Free Control Cable

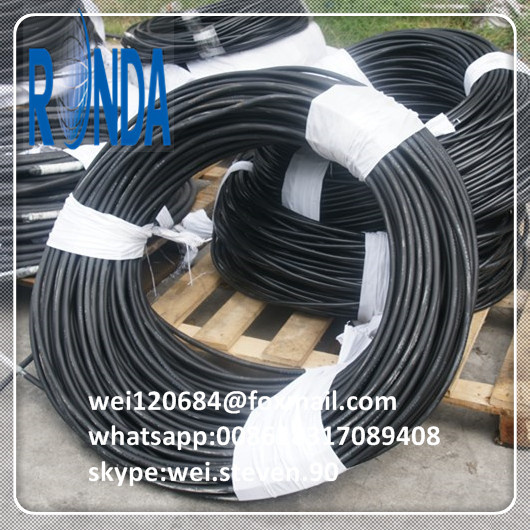

Name: LSOH Halogen Free Control Cable
Brand: all-electronics-online.com
SKU: 804047245
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WZD-KVV
Colour:	Customized
Standard:	IEC60227
Core:	Copper
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Certification:	CCC
Range Of Application:	Signal Control
Brand:	Ronda
Sheath Material:	polyolefin
Insulation Material:	polyolefin
Application:	Signal Control

Product Description

For More Information:
Steve Wei Sales Manager

Application:
Flexible signal cable used for surveillance and control of static or mobile devices in industry, electric plants or offices. Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain. Installed in dry or damp premises, outdoor application only under protection against UV-irradiation. Not intended for laying in ground or water.

Construction:
Conductor: bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228
Insulation: Polyolefin compound
Sheath: Polyolefin compound
Sheath Colour: Grey

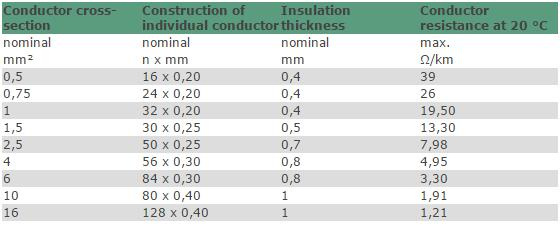

Technical Data:
Temperature Ranage:
During Installation: -5 °C up to +50 °C
Fixed Installation: -30 °C up to +70 °C
Nominal Voltage: Uo /U = 450/750 V
Test Voltage: 2500V
Insulation Resistance: min. 20 MΩ x km
Min Inner Bending Radius:
Fixed Installation: 4D
at application with bending: 15D
Behaviour In Fire: IEC60332

For More Information:
Steve Wei Sales Manager

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
