| Prod Model: |
FND2-100 |
| Standard: |
IEC/En 60947-3 |
| Rated Voltage: |
240/415V |
| Frequency: |
50/60Hz |
| Rated Current: |
25A,40A,63A,80A,100A |
| Type: |
Low-voltage |
| Structure: |
Single-column Disconnector |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Series: |
Single-Stage |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Double-Throw Type |
| Certification: |
CE |
| Installation: |
DIN Rail |
| Number Of Poles: |
1p/2p/3p/4p |
| Brand: |
Funelec or OEM |

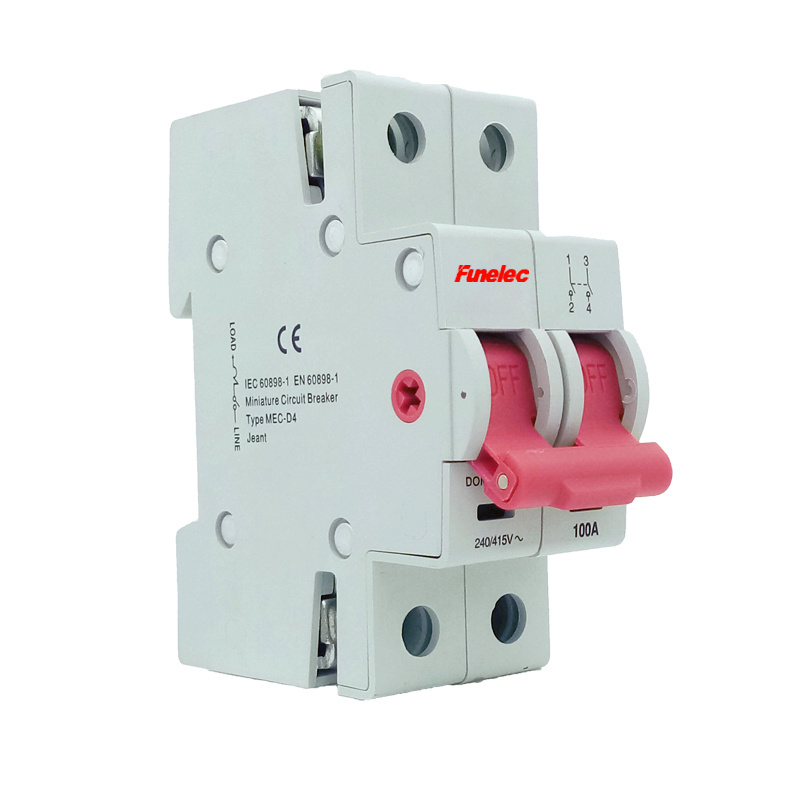

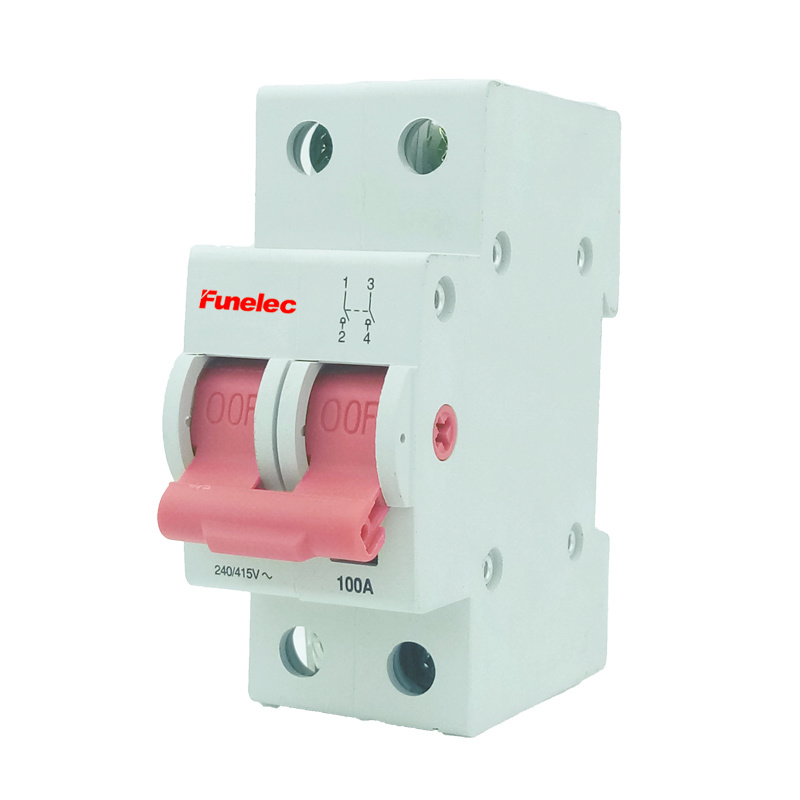

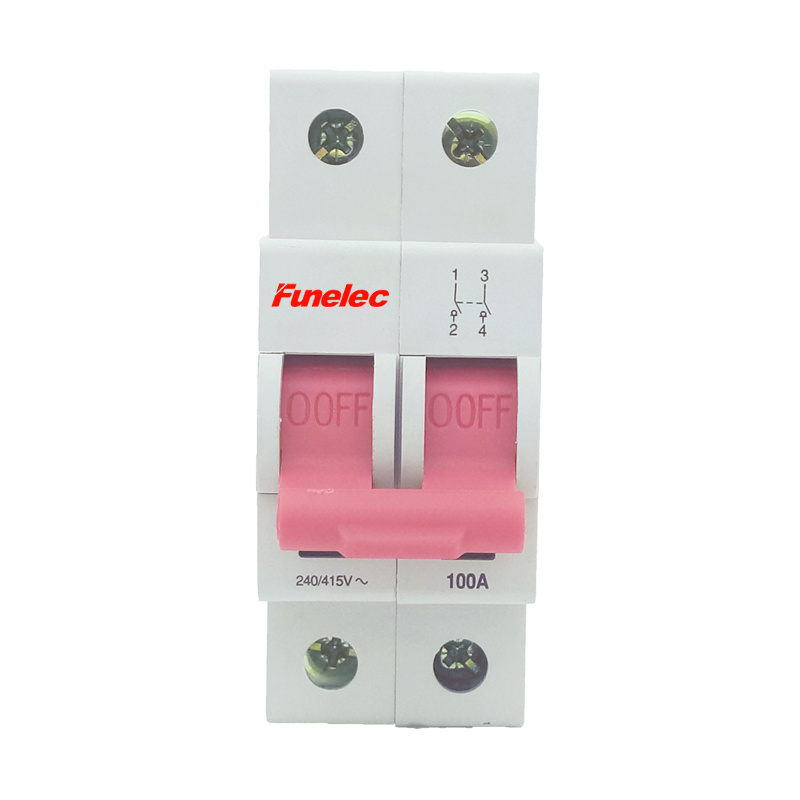

Product Description
Description
Load circuit breaker with isolating function
Design according to IEC/EN 60947-3
Highly wear resistant contacts
Terminal capacity up to 50mm2
Rated current is available up to 125A
CB test report achievedSpecification| Rated current ln(A) | Type Designation | Article Number | QNT/CTN(pcs) | G/N.W/CTN(kg) | MEAS(cm) |
1-pole,1MU
25
40
63
80
100 | FND2-125-S25
FND2-125-S40
FND2-125-S63
FND2-125-S80
FND2-125-S100 | D2S01
D2S02
D2S03
D2S04
D2S05 | 12/240
12/240
12/240
12/240
12/240 | 19/17
19/17
19/17
19/17
19/17 | 43x24x34
43x24x34
43x24x34
43x24x34
43x24x34 |
| Rated current ln(A) | Type Designation | Article Number | QNT/CTN(pcs) | G/N.W/CTN(kg) | MEAS(cm) |
2-pole,2MU
25
40
63
80
100 | FND2-125-D25
FND2-125-D40
FND2-125-D63
FND2-125-D80
FND2-125-D100 | D2D01
D2D02
D2D03
D2D04
D2D05 | 6/120
6/120
6/120
6/120
6/120 | 19/17
19/17
19/17
19/17
19/17 | 43x24x34
43x24x34
43x24x34
43x24x34
43x24x34 |
| Rated current ln(A) | Type Designation | Article Number | QNT/CTN(pcs) | G/N.W/CTN(kg) | MEAS(cm) |
3-pole,3MU
25
40
63
80
100 | FND2-125-T25
FND2-125-T40
FND2-125-T63
FND2-125-T80
FND2-125-T100 | D2T01
D2T02
D2T03
D2T04
D2T05 | 3/60
3/60
3/60
3/60
3/60 | 19/17
19/17
19/17
19/17
19/17 | 43x24x34
43x24x34
43x24x34
43x24x34
43x24x34 |
| Rated current ln(A) | Type Designation | Article Number | QNT/CTN(pcs) | G/N.W/CTN(kg) | MEAS(cm) |
4-pole,4MU
25
40
63
80
100 | FND2-125-T25
FND2-125-T40
FND2-125-T63
FND2-125-T80
FND2-125-T100 | D2T01
D2T02
D2T03
D2T04
D2T05 | 3/60
3/60
3/60
3/60
3/60 | 19/17
19/17
19/17
19/17
19/17 | 43x24x34
43x24x34
43x24x34
43x24x34
43x24x34 |
Electrical| Design according to | IEC/EN 60947-3 |
| Rated voltage | 240/415V |
| Frequency | 50/60 Hz |
| Rated insulation voltage Ui | 660 V~ |
| Rated peak withstand voltage Uimp | 6 kV |
| Pollution degree | 3 |
| Rated short-time withstand current lcw | 2 kA |
| Rated short-circuit making capacity lcm | 2 kA |
| Number of poles | 1-, 2-, 3-, 4-pole |
| Electrical life | 4000 operating cycles |
| Short circuit strength with back-up fuse | acc.to the applicable rules |
| IEC/E N 60947-3 | 10kA |
| Endurence |
| Electrical comp.op.cycles | ≥3000 |
| Mechanical comp.op.cycles | ≥16,000 |
Mechanical| Frame size | 45 mm |
| Device height | 76mm |
| Device width | 18mm/pole(1MU) |
| Mounting | quick fastening DIN rail IEC/EN 60715 |
| Degree of protection, built-in | IP40 |
| Terminal protection | finger and h and touch safe |
| Terminals | Twin-purpose terminals |
| Terminal capacity | rigid conductor up to 50mm2 |
| Busbar thickness | 0.8-2.5 mm |
| Fastening torque of Terminal screws | 2.5 Nm |
| Function | irrespective of the position of installation |
