LSZH Jacket Singlemode Simplex Communcation Cable

Name: LSZH Jacket Singlemode Simplex Communcation Cable
Brand: all-electronics-online.com
SKU: 725791942
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 0.02-0.05/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJV-simplex
Fiber Count:	1 Fibre
Fiber:	G652D/G657A
Fiber Type:	Sinflemode or Multimode
Strength Member:	Kevlar Yarn/Aramid Yarn
Applicate:	Patch Cord O Pigtail
Storage Temperature (ºC):	-40~+70
Color:	Optional
Sheath:	LSZH or PVC or TPU
Model Name:	GJFJV
Cable Diameter:	2.0mm /3.0mm
Application:	Telecommunication
Type:	Single-mode Fiber
Connection Structure:	FC-ST
Certification:	ISO9001
Sheath Material:	LSZH or PVC

Product Description

LSZH jacket singlemode simplex communcation cable

Description:

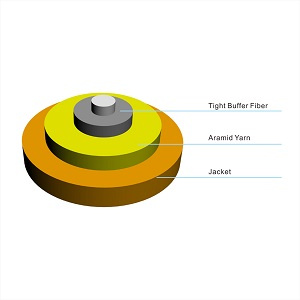

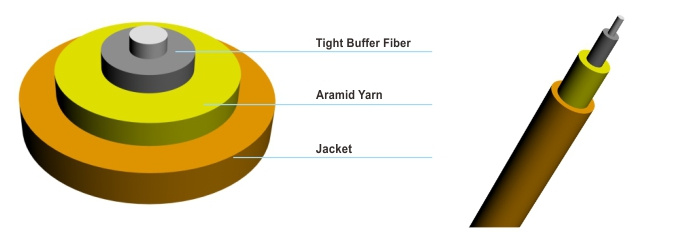

The simplex cable uses single 900um or 600um tight buffer fiber as optical transmission medium,covered with aramid yarn as strength member,then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU,are available on request.

Features:
Excellent strippability with tight buffer fiber.
Excellent flame retardant properties.
High tensile strength due to aramid yarn strenth member.
Excellent corrosion resistant,waterproof,lame retardant and environmental-friendly properties of the outer sheath.

Application:

Fiber jumper o pigtail.
Indoor riser level and plenum level cabling.
Interconnections between instrument and communication equpiments.

Standards:
Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11.

Delivery length:

Standard reel length :2000m,other lengths available on request.

Fiber Characteristics:

Fiber Type		G.657A1	G.657A2	OM3	OM4
Attenuation(+20ºC)	@850nm			≤2.3dB/km	≤2.3dB/km
	@1300nm			≤0.6dB/km	≤0.6dB/km
	@1310nm	0.36 dB	0.36 dB
	@1550nm	0.22 dB	0.22 dB
Overfilled launch Bandwidth	@850nm			≥1500MHZ.km	≥3500MHZ.km
Overfilled launch Bandwidth	@1300nm			≥500MHZ.km	≥700MHZ.km
Effective Modal Bandwidth	@850nm			≥2000MHZ.km	≥4700MHZ.km
10GB/S Ethernet link length				≤300m	≤550m
Min Bending Radius(mm)		10	7.5	30	30

Physical characteristics and mechanical performance:

Cable type	Cable size(mm)	Weight(kg/km)	Tensile strength Long/Short Term(N)	Crush resistance Long/Short Term(N/100m)	Bending Radius Static/Dynamic (mm)	Storage Temperature (ºC)
GJFJV-1Xn	1.6±0.2	2.5	60/100	100/500	30/60	-40~+70
GJFJV-1Xn	1.8±0.2	3.5	60/100	100/500	30/60	-40~+70
GJFJV-1Xn	2.8±0.2	6.0	60/100	100/500	30/60	-40~+70

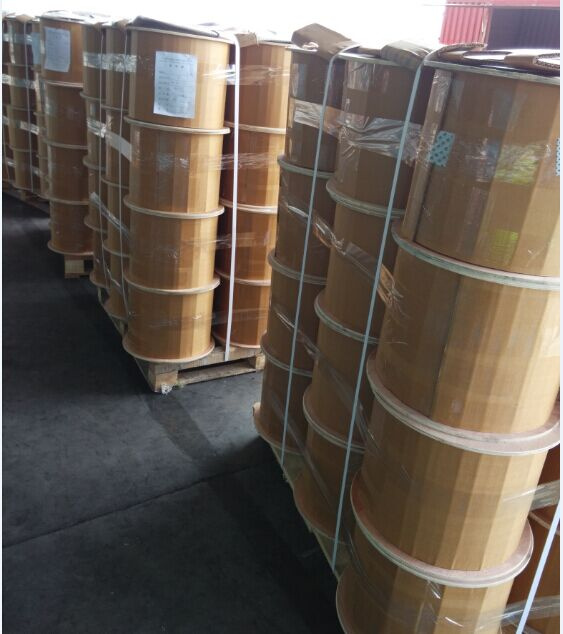

Packages:

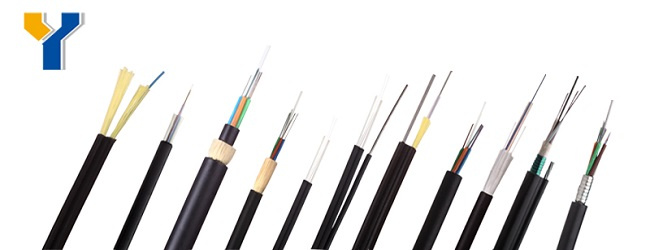

More popular products:

About us:

Contact us:

If you are interested in our products,please contact with our sales,we will reply you on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.

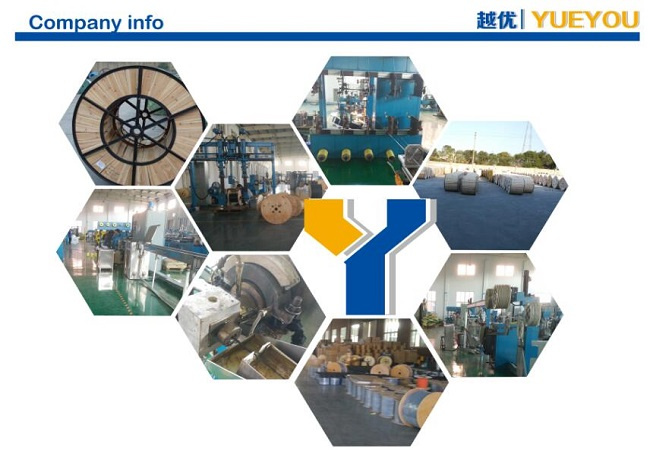

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
