| Prod Model: |
GJXH, GJXFH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Fiber Opitcal Indoor FTTH Drop Cable |
| Fiber Core Capacity: |
1/2/4/6/8core |
| Maximum Attenuation: |
0.7/0.5db/Km |
| Typical Attenuation: |
0.4/0.3db/Km |
| Minimum Bending Radius: |
15mm |
| Jacket: |
Lzsh PE |
| Package: |
2km/Roll |
| Environmental Standards: |
RoHS Compliant |
| Operating Temperature: |
-20°c~+60°c |
| Strengthen Member: |
Rfp/Steel |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Sc, FC, LC, etc. |
| Sheath Material: |
Lzsh PE |
Product Description
Lszh Sheath Fiber Opitcal Indoor FTTH Drop Cable 2-8core
Features
1. Compact and light weight, low purchasing and construction costs;
2. Easy connect without splicing, fast and convenient;
3. Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;
4. Non-metallic strength member can be both glass fiber reinforced plastic known as G-FRP and Kevlar fiber reinforced plastic known as K-FRP;
5. Soft and flexible, good bending performance;
6. Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;
7. The fibers used meet standards ITU-T G657A, with minimum bending radius is up to 15mm;
8. High carbon steel messenger wire enables the self-support type has excellent tensile strength.

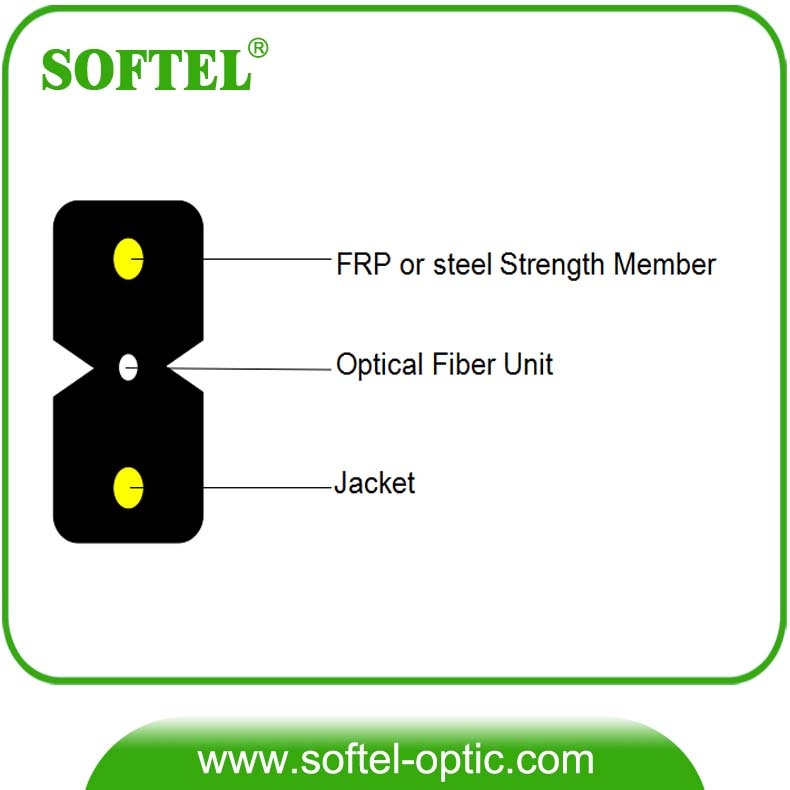

| | Butterfly drop cable(Figure 1) | Self-supporting butterfly drop cable(Figure 2) |
| Fiber count | 1~2 | 4
(Fiber ribbon) | 1~2 | 4
(Fiber ribbon) |
Attenuation G. 652 or G. 657
@1310/@1550nm | 0.36/0.25 | 0.36/0.25 | 0.36/0.25 | 0.36/0.25 |
| Cable diameter (mm) | 2.0X3.0(± 0.1) | 2.0X4.0(± 0.2) | 2.0X5.2(± 0.1) | 2.0X6.2(± 0.2) |
| Cable Weight (kg/km) | 9.5 | 12 | 21 | 25 |
| Tensile strength (N) | long term | metallic strength member | 100 | FRP strength member | 40 | 300 |
| short term | 200 | 80 | 600 |
Crush Resistance
(N/100mm) | long term | 500 | 1000 | 1000 |
| short term | 1000 | 2200 | 2200 |
| Bending radius (mm) | Static | 60(G. 652) | 30(G. 657A) | 25(G. 657B) |
| Dynamic | 30(G. 652) | 15(G. 657A) | 10(G. 657B) |
| Operating temperature (º C) | -40~+60 |
| Enviromental standards: | Complying with EU ROSH standard.
Flame retardant grade of IEC60332. |
| Item | Technology parameter |
| Cable type | GJYFJCH-2B6 |
| Product specification | 3.5×6.5 |
| Fiber type | 9/125 (G.657A2) |
| Tight buffer material | LSZH |
| Tight buffer color | Blue, orange |
| Tight buffer diameter mm | 0.6±0.05 |
| Strength member | Aramid yarn |
| Suspension unit type | 1×7(single steel wire 0.4mm) |
| Message wire thickness mm | ≥0.6 |
| Outer sheath material | LSZH |
| Outer sheath color | Black |
| Outer sheath thickness mm | 1.0±0.2 |
| Cable weight Kg/km | Approx. 28.0 |
| Min. bending radius mm | With suspension unit: 130
Without suspension unit: 15 |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile N | 600 |
| Crush resistance N/100mm | 1000 |
| Operation temperature ºC | -10~+70 |
| Item | Technology parameter |
| Cable type | GJYFJCH-4B6 |
| Product specification | 4.0×7.0 |
| Fiber type | 9/125 (G.657A2) |
| Tight buffer material | LSZH |
| Tight buffer color | Blue, orange, green, brown |
| Tight buffer diameter mm | 0.6±0.05 |
| Strength member | Aramid yarn |
| Suspension unit type | 1×7(single steel wire 0.4mm) |
| Message wire thickness mm | ≥0.6 |
| Outer sheath material | LSZH |
| Outer sheath color | Black |
| Outer sheath thickness mm | 1.0±0.2 |
| Cable weight Kg/km | Approx. 34.5 |
| Min. bending radius mm | With suspension unit: 130
Without suspension unit: 15 |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile N | 600 |
| Crush resistance N/100mm | 1000 |
| Operation temperature ºC | -10~+70 |
| Item | Technology parameter |
| Cable type | GJYXCH-4B6 |
| Cable specification | 5.2×2.0 |
| Fiber color | Nature, blue, orange, green |
| Fiber type | 9/125 (G657A2) |
| Sheath color | Black |
| Sheath material | LSZH |
| Cable dimension mm | 5.2(±0.2)*2.0(±0.2) |
| Cable weight Kg/km | Approx. 19.5 |
| Min. bending radius mm | 120 |
| Min. bending radius(rip off the messenger wire) mm | 10 (Static)
25 (Dynamic) |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile N | 600 |
| Crush resistance N/100mm | 2200 |
| Operation temperature ºC | -20~+60 |
