| Prod Model: |

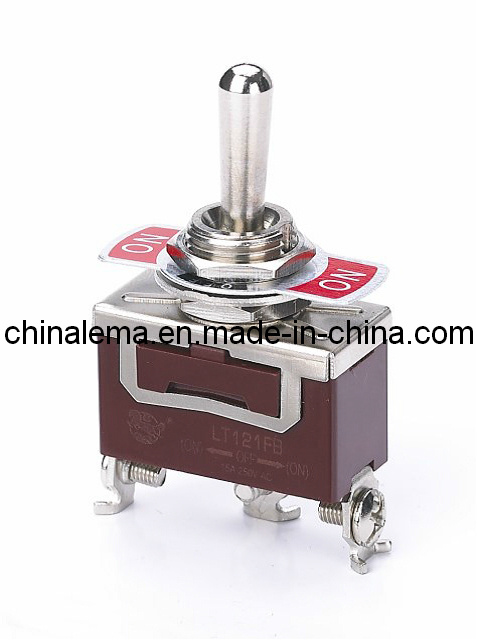

SPDT Mini screw terminal toggle switch |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rating: |
15A 125/250VAC |
| Mechanical Life: |
50, 000 |
Product Description
The toggle switch is a manual control switch, and is mainly used for on-off control of the AC-DC power supply circuit, but in general can also be used in the circuit of thousands of Hz or up to 1 MHz. Small size, easy to operate, and is commonly used in electronic equipment switch.
Features:
Rating: 15A 125/250VAC
Long life, high reliability
Full range of toggle switch with different contact forms are available
Screw terminal and quick connect terminal are available
Protection cap is available
Application:
Electrical equipment
Instrument and meter
Automation machine
| Rating | 15A 125/250V AC |
| Initial contact resistance | 25mΩ max. |
| 25mΩ |
| Initial insulation resistance | 100MΩ min(at 500VDC) |
| 100MΩ(500VDC) |
| Dielectric strength | Between non-consecutive terminals | 1000V 50/60Hz for 1 min |
| 1000V 50/60Hz 1 |
| Between non-current carrying metal parts and each terminal | 2000V 50/60Hz for 1 min |
| 2000V 50/60Hz for 1 |
| Between ground and each terminal | 2000V 50/60Hz for 1 min |
| 2000V 50/60Hz 1 |
| Ambient temperature | -25-80 |
| Ambient humidity | 85%RH max. |
| 85%RH |
| Operating frequency | 30times/min |
|
Packaging & Shipping
1) Packaging
100 pieces / inner box , 1,000 pieces / Carton
50 pieces / inner box , 500 pieces / Carton
Measuring 49 *38.5*53.5 cm
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T,PayPal
Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
