Luss-994t Ultrasonic Level Meter

Name: Luss-994t Ultrasonic Level Meter
Brand: all-electronics-online.com
SKU: 818437325
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 220-400/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LUSS-994T
Type:	Non-Contact

Product Description

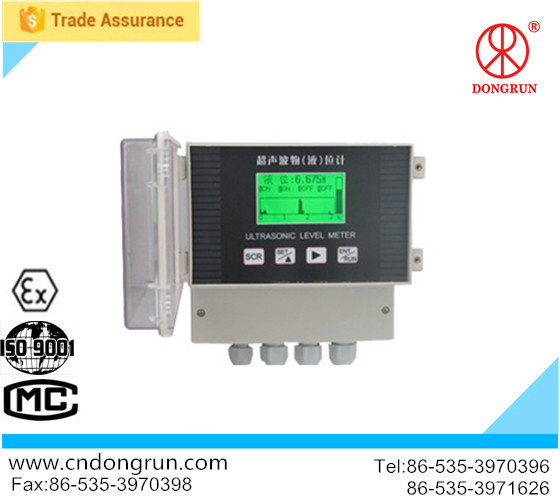

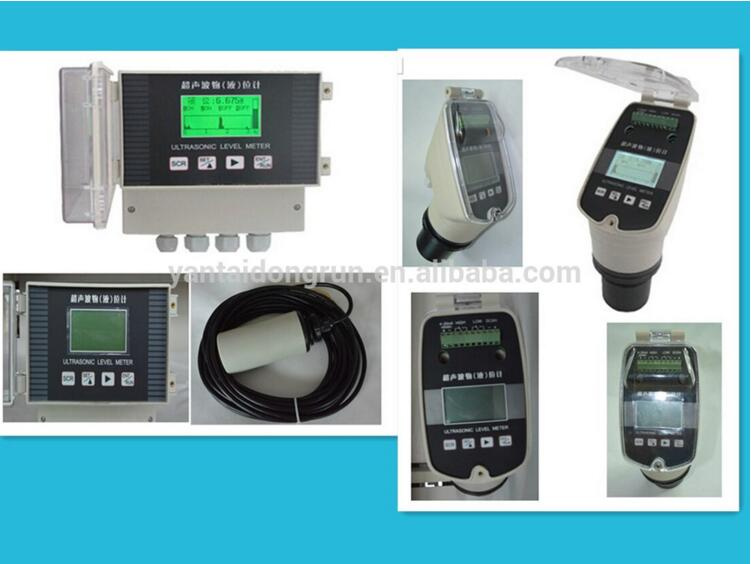

LUSS-994T Ultrasonic Level Meter

Product Instruction

Feature

1.Adopting high speed digital signal processing technology, intelligent recognition and analysis ,suitable for bad environment. Advanced signal environment display (oscilloscope technology), easy for debugging and installation

2. High-speed and reliable microcomputer processing, fast and stable

3. Non-contact measurement, multiple data filtering technology, stable and reliable measurement

4. High accuracy D/A output, improve the precision of 4-20 mA output

5. Equipped with 485 interface, it can connect a computer or other data collector

Technical Parameter

No contact digital ultrasonic level sensor

Measurement Range	5m,10m,15m,20m,30m,40m
Accuracy	0.25%,0.5%
Resolution ratio	1mm
Operating Temperature	-20ºC~55ºC
Protection Grade	Transmitter:IP65 Probe:IP67
Power Supply	AC 220V±10% 6W ,DC24V
Output	4~20mA
External Loading	0~500Ω
Error	0.1%(Relative instrument indicate)
Test Value	Level or distance
RS485	Encoding: 1 start bit, 8 data bits, 1 stop bit Baud rate: 9600 00-09, when set as 00, every measurement will output at a time When set as 01-09, need order query: Send the format :!X (x for address) The echo formats: 3.128;
Relay	Control mode: the upper limit of liquid level 2groups, the lower limit of liquid level 2 groups. Type: single pole double throw (normally open, normally closed) Contact capacity: AC250V 1 A.DC30V 5 A

Welcome to our factory.
Yantai dongrun Instrument Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.

Contact Information

Shandong dongrun Instrument Science and Technology Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are pH/ORP analyzer, DO analyzer, Conductivity analyzer, Turbidity analyzer, TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.

Company Culture

Our Mission: Using advanced analysis and monitoring technology, continuously to improve the human living environment; Using first-class automation and information technology, to create the greatest benefits for enterprises and society; Work hard wholeheartedly for the human environment construction and social progress.

Our vision: Make the world's most reliable instruments and equipment, to design the world's most intelligent automation information software; To do a hundred years of business, to become the world's leading industry brands.

Our spirit: Constant learning, constant innovation and constant development

Our team: Positive, courageous and capable of one heart and one mind, solid and steady

Our criteria: Concentrate, professional, dedicated, diligent, lean and improvement;

Our style: Enthusiasm, high-quality, high-efficient, no excuse
