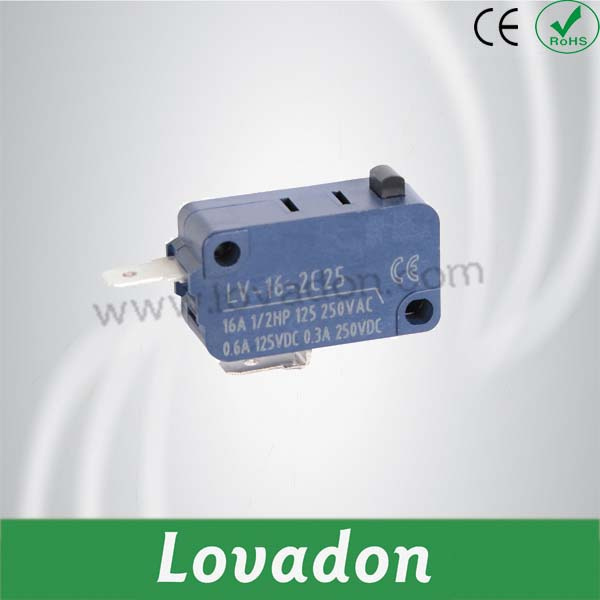

LV-16-2c25 Best Impact Resistance High Precision Micro Switch

Name: LV-16-2c25 Best Impact Resistance High Precision Micro Switch
Brand: all-electronics-online.com
SKU: 753052325
Availability: InStock
Rating: 5 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LV-16-2C25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressing Type:	Spring Roller
Size:	Normal Size
Breaking Capacity:	General Type
Breaking Form:	Single Type
Protection:	Waterproof, Dustproof
Application:	The Floating Ball Equipment, Medical Equipment, Bu
Brand:	Lovadon

Product Description

LV-16 Series Micro Switch
* High accuracy of action position.
* Good shock resistance , maximum 1000 m/s^2.
* Good heat resistance , maximum operating temperature is T105 ºC .
* High strength shell , when mounting , the plastic shell can withstand torsional moment of 6 kgf-cm without break.

Model Designations
Model- Rated operating current - Driving Form - Contact form - Terminal specification(C2:#4.8 terminal(the British system #187)) C:# 6.3 terminal( the British system 25°) - Max pressure needed for operation.

Operation Speciality	LV-16-1C25	LV-161-1C25	LV-162-1C25	LV-163-1C25	LV-164-1C25	LV-165-1C25	LV-166-1C25
OF	200g	200g	125g	65g	125G	240g	125g
RF	50g	50g	14g	6g	14G	50g	14g
PT	1.2mm	1.6mm	4.0mm	9mm	4.0mm	1.6mm	4.0mm
OT	1.0mm	0.8mm	1.6mm	2mm	1.6mm	0.8mm	1.6mm
MD	0.3mm	0.5mm	0.8mm	2mm	0.8mm	0.5mm	0.8mm
OP	14.7+-0.4mm	15.2+-0.5mm	15.2+-1.2mm	15.2+2.6mm /15.2-3.2mm	18.7+-1.2mm	20.7+-0.6mm	20.7+-1.2mm

Characteristics Of Contact Module
Items	LV-21,LV-16,LV-11
Permissible make-break frequency	0.1mm-1m/s(pushbutton type)
Misoperation	Double amplitude 1.5mm 10-5Hz(Contacts separate in less than 1ms)
Resistance to impact (button type)	OF 0.49N type:98m/s^2 below; OF 1.96N type,3.92N Type: 294M/S^2 below; OF 0.98N type: 196m/s^2 below (Contacts separate in less than 1ms)
Mechanical life (stipulated over Super cheng OT)	10,000,000 times above (make break frequency is 60 times/min)
Ambient temperature and humidity	-25ºC~+80ºC(no icing or dew), 85% RH below (at about +5~35ºC)
weight(Kg)	About 6.2g (pushbutton type)

Environmental Characteristics
Permissible make break frequency	Mechanical 600 times/min; electrical 30 times/min
Insulation resistance	100MΩ above (using insulating-resistance meter of DC500V)
Contact resistance (initial value)	Maximum 15MΩ
Among non-insulated terminals	AC 1000V 50Hz/60Hz 1 minute
Between the grounding and terminals	AC 2000V 50Hz/60Hz 1 minute
Electrical life (stipulated over travel OT)	100,000 times above (make break frequency is 60 times/min)

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
