LV 3core 4core XLPE Cable, PVC Cable
| Price: |
US $ 0.6-5/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
VV YJV |
| Size: |
10,16,25,....50,95......630 |
| Produceing Experience: |
More Than 15 Years |
| Export Experience: |
South Africa,Africa,Southeast Asia,South America |
| OEM: |
Yes |
| Customized: |
Yes |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Certification: |
RoHS |
| Insulation Material: |
XLPE or PVC |
Product Description

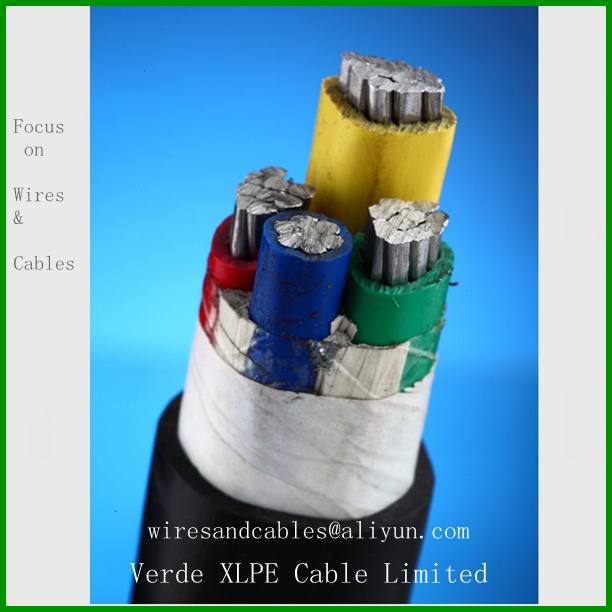

LV Multicore PVC / XLPE Insulated Electrcial Cable for Substaion or Power PlantNYY NYM Type1.Structure:Copper Conductor / XLPE Insulated / PVC sheathed Power Cable Designated products by Henan Power Company
2.Standard:
IEC60502,We can customize the special specification as per the customer's request.
3.Size as per IEC standard: 16, 25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,............630mm24.Type Description & Application Occasion of cable | Type | Description | Application Occasion |
| Cu | Al |
| YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
| YJY | YJLY | XLPE insulation PE sheath power cable |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable |
| YJV62 | YJLV62 | XLPE insulation, Non-magnetism steel tape armor, PE sheath power cable |
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
|
| YJV72 | YJLV72 | XLPE insulation, Non-magnetism steel-wire armor, PVC sheath power cable |
| YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
| Hint specially | The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable.
Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. |
5.Packing: Drum, Wooden Steel drum, All Steel Drum for big heavy cable

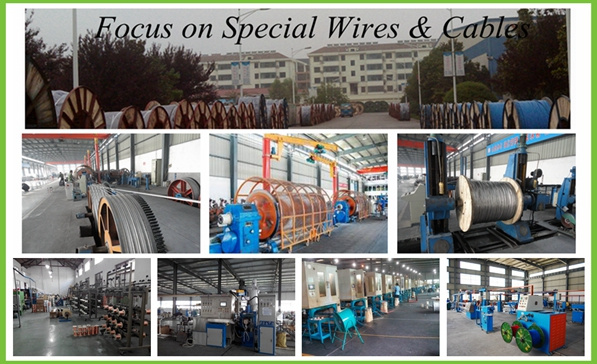

6.Our Workshop View
If you want to know more about us and our products,pls contact us.sending email or telephon us:Linda LeeVice General ManagerVERDE XLPE CABLE LIMITEDTel:0086-371-55611184Mob:0086-13938400126Focus on Wires and CablesBe Your Most Reliable Supplier
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
