| Prod Model: |
3x50+50mm2 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Sheath Material: |
None |
| Brand: |
Jinshui |
Product Description
Quick Details
Place of Origin: Henan, China (Mainland), Henan, China (Mainland)
Brand Name: JINSHUI, jinshui
Insulation Material: XLPE
Type: Low Voltage
Application: Construction, for overhead service applications
Conductor Material: Aluminum
Jacket: NONE
Surface Treatment: Enameled Wire
Alloy Or Not: Is Alloy
Model Number: B232, BS215, DIN48214
Packaging & Delivery
Specifications

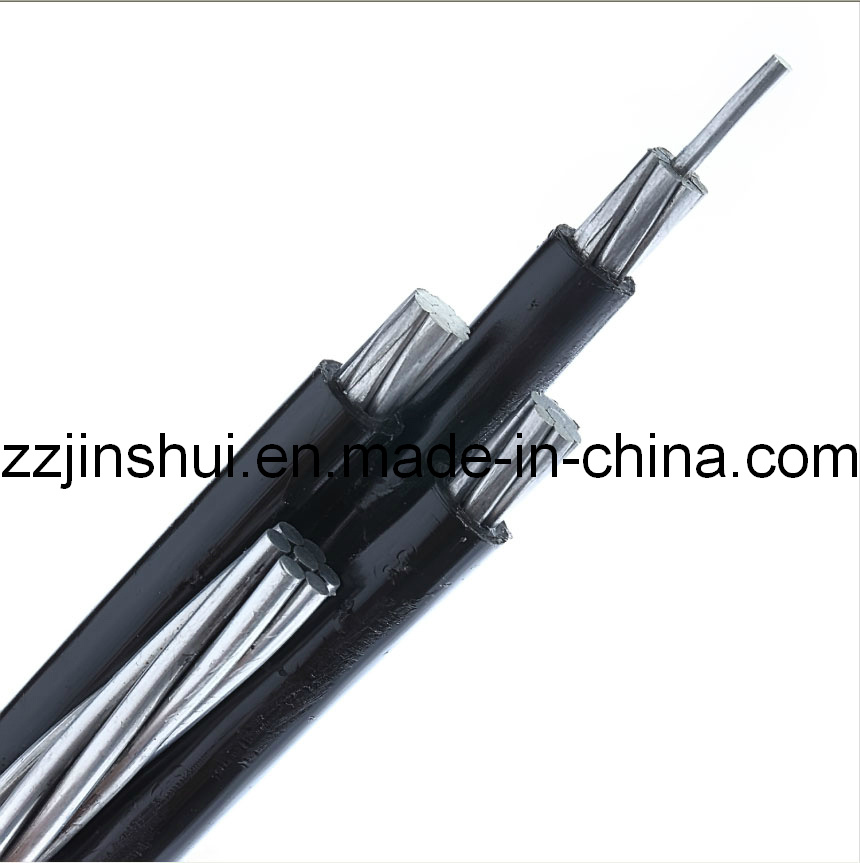

Quadruplex Service Drop (ABC cable ) ACSR for Power tranmission, used for rebuilding of urban and forest regions. Whichv
Aerial insulation ABC cableDetailed Product DescriptionSingle core aerial cable(overhead cable)conductor: cooper or aluminiuminsulation:XLPE, PE, PVCApplicationOverhead insulated cable may be installed in the streets with dense trees close to the buildings, site of urban construction and lead to transformer. Using this cable, it is unnecessary to prune the branches, so that reduce the across and parallel distance of the cable. It is convenient to install and high mobility. It can reduce accidents of electric shock and power failure causing by circuit troubles. To guarantee supplying of electric power for industry, Single core aerial cable (overhead cable) could make sure residents safety. It is especially suitable for an old city, which has densely buildings, densely population and narrow streets. Our overhead insulated cables have formed a system, such as single core, two-core, three-core and four-core. There are conductors of aluminum, copper or aluminum conductors steel-reinforced.
Ref. No. |
Description |
Unit |
Data |
8.3 |

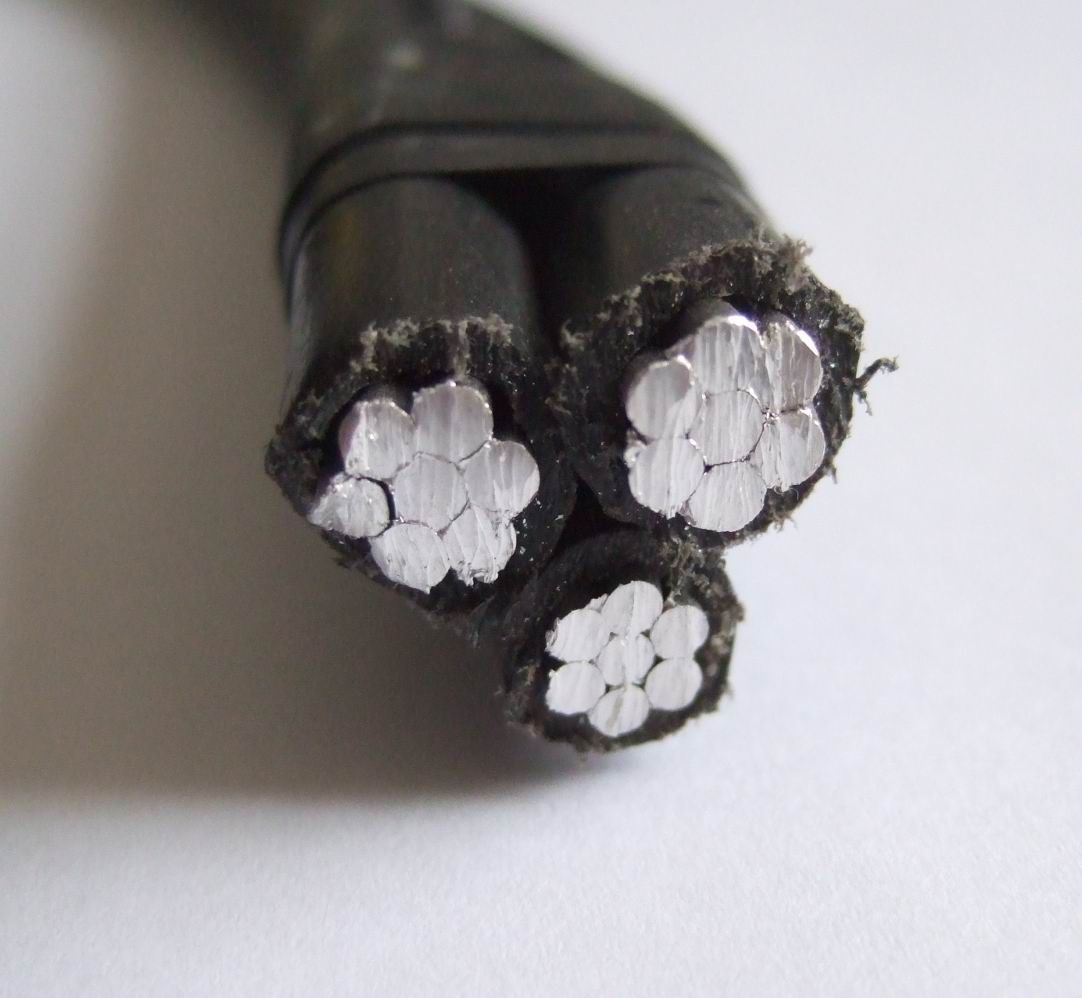

LV AERIAL BUNDLE CABLE (600/1000V)
3x50+50mm2 | | |
1 |
Manufacturer |
HENAN JISNHUI CABLE GROUP CO.,LTD |
2 |
Standards |
IEC 60502 |
3 |
Nominal voltage (Uo/U) |
KV |
0.6/1kv |
4 |
Phase conductor | | |
4.1 |
Conductor Material | |
AAC |
4.2 |
Cross-section of phase conductor. |
mm2 |
50 |
4.3 |
No. Of strands wires/Single wire diameter | |
7/3.02 |
4.4 |
Diameter of phase conductor |
mm |
9 |
4.5 |
Thickness of insulation XLPE |
mm |
1.4 |
4.6 |
External diameter of individual core |
mm |
11.5 |
5 |
Netural Conductor | | |
5.1 |
Conductor material | |
AAAC |
5.2 |
Cross sectional of neutral wire |
mm² |
50 |
5.3 |
No. Of strands wires/Single wire diameter | |
7/3.02 |
5.4 |
Diameter of neutral wire |
mm |
9.06 |
5.5 |
Ultimate tensile strength of suspension wire |
KN |
14.6 |
5.6 |
Thickness of suspension wire covering |
mm |
Bare |
6 |
Overall diameter of bundle |
mm |
28 |
7 |
Total weight of bundle per km |
kg/km |
700 |
8 |
Maximum DC resistance / km at 20°C
- Phase conductors
- Neutral conductor |
Ω /km
Ω /km |
0.641
0.720 |
9 |
Working inductance |
MH/km |
0.23 |
10 |
Working capacitance |
mF/km |
0.62*10-3 |
11 |
1 sec. Thermal short circuit current (maximum conductor temperature 130°C, final conductor temperature. |
KA |
2.5 |
12 |
Maximum continuous current at 35°C ambient temperature 0.6m/sec wind and 90°C conductor temperature.
- Phase conductors
- Neutral conductor |
A
A |
190
180 |
13 |
Zero sequence impedance |
Ω/km |
0.099 |
14 |
Modulus of elasticity |
N/mm2 |
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
