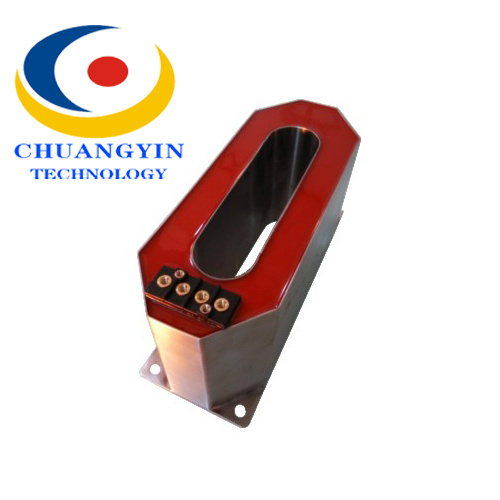

Name: LV Indoor Metal Box Epoxy Resin CT or Current Transformer
Brand: all-electronics-online.com
SKU: 757681685
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 140-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDZC135-11CP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LV:	Epoxy Resin
Metal Shell:	Metal Box
China:	Factory
Current Transformer:	CT
Double Cable:	Metal Shell
0.66-66 Kv Cables:	Signal Acquisition
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

LDZC135-11CP type double cable current transformer, adopts the new type of high permeability core, has the high accuracy of measurement,

Made of stainless steel metal shell, whole sealing resin casting, good appearance, easy installation, save installation space,

There are various capacity, strain ratio and accurate level of high-precision current transformer and can be used in the power system of rated voltage 0.66-66 kv cables, for current measurement, signal acquisition, relay protection

Technical Data
1. Rated secondary current          5A or 1A
2. Power frequency withstand voltage: 3kV
3. Rated frequency                  50/60Hz
4. Installation site:                    Indoor

Specification

Model	LDZC135-11C		LDZC135-11P	LDZC135-11CP
Purpose	Measuring Current Transformer		Protective Current Transformer	Double winding Current Transformer
Ratio current ratio	Accuracy class and rated burden (VA) COS=0.8
	0.5	1	10P10	0.5	10P10
	1	2.5	2.5	1	1
	2.5	5	2.5	2.5	2.5
	2.5	5	2.5	2.5	2.5
	5	10	5	5	5
	5	10	5	5	5
	5	10	5	5	5

Note: Upon requset we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
