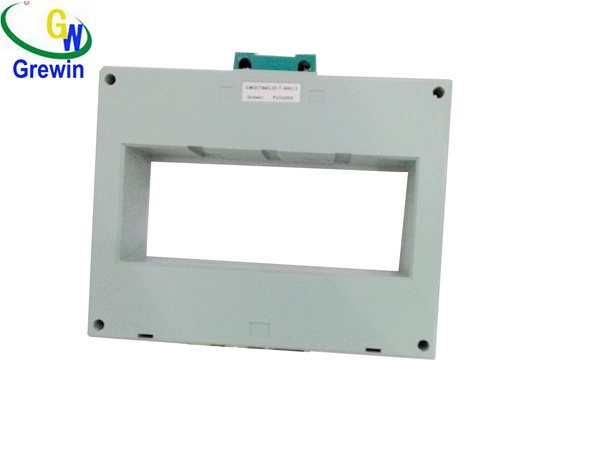

LV Instrument Current Transformer for Busbar (GWCTB)

Name: LV Instrument Current Transformer for Busbar (GWCTB)
Brand: all-electronics-online.com
SKU: 676798212
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 5.85-6.98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWCTB SERIE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Application:	Lighting
Type:	Voltage Transformer
Phase:	Single

Product Description

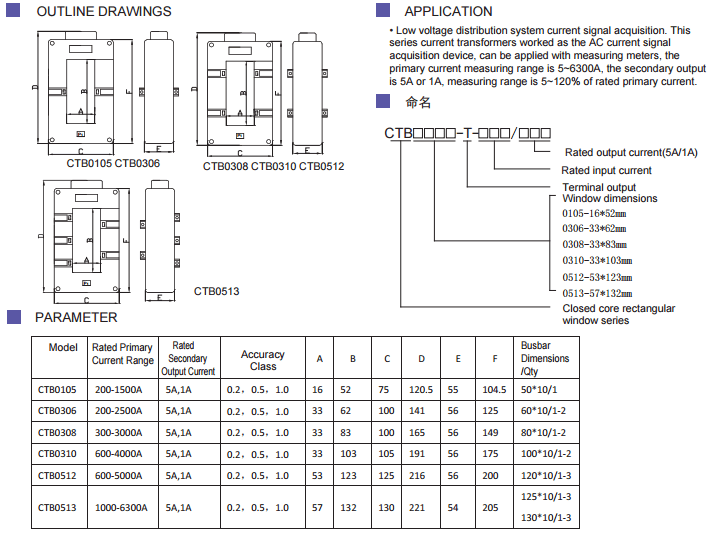

Grewin CTB series low voltage current transformers are indoor used, there are six kinds of window sizes and various turn ratios are optional, the detailed parameters are shown on below form.

Description:
Current transformer mainly used in all kinds of electricity meter such as energy meter, water meter or electricity meter. We have current transformers both with and without DC immune. We can offer through-hole type, PCB type, Busbar type and flying wir type in mounting. Product with high accruacy up to 0.5, small phase error etc. We can also design and manufacture all kinds of current transformer according strictly to customer's special requirements.

Features
      Low cost
      Wound cold rolling oriented silicon steel core,
      without air gap, uniform winded secondary
       winding, small flux leakage
     S ix kinds dimensions, various turn ratios
      New fixed installation method
Applications
      Low voltage distribution system current signal
         acquisition. This series current transformers
          worked as the AC current signal acquisition
          device, can be applied with measuring
          meters, the primary current measuring range
          is 5~6300A, the secondary output is 5A or 1A,
           measuring range is 5~120% of rated primary
            current
Specifications
      Case material: ABS or PC resin
      Frequency:50-400 Hz
      Operating Temperature:-40 to +85ºC
      Operating Voltage:600Vac
      Dielectric Strength: 2500Vac/min
      Accuracy class:compliantIy EC60044-1,Class
       0.2, 0.5, 1.0
       RoHS compliant

Electrical properties:
1)Output voltage properties : Being measured after demagnetized
2) Performance magnetism : Variation of the output voltage between the virgin CT's and the saturated CT's
3) Thermal properties : Variation of the output voltage from -10°C to +65°C at the ambient temperature
4) Hair-pin properties : At the balanced current equivalent to 6 times of the rated current along around
4) Hair-pin properties : 360 degree, V" is the maximum output voltage.
5) Pulse width properties : the wave width at Vo=10mV

Contact info :

Tianjin Grewin Technology Co., Ltd
Contact:Victor Dong
T:86-22-84943756
F:86-22-85909471

Website: http://www.grewin-tech.com/

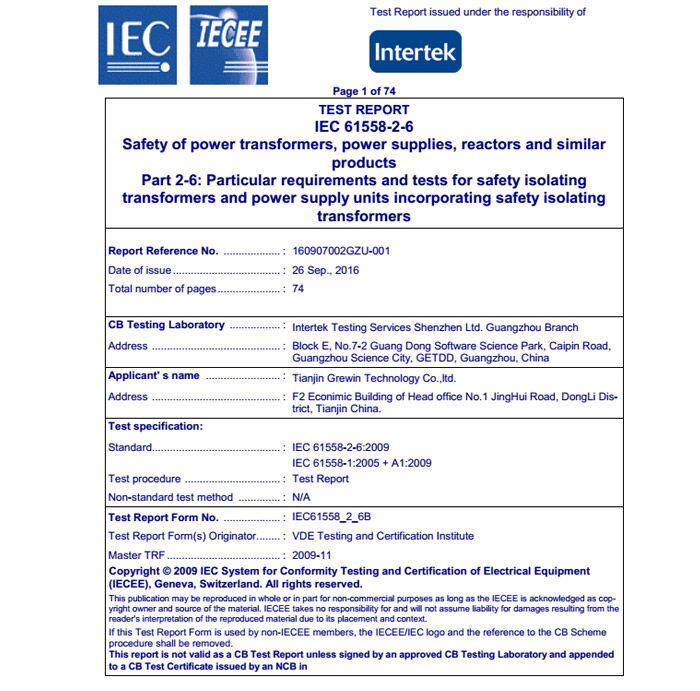

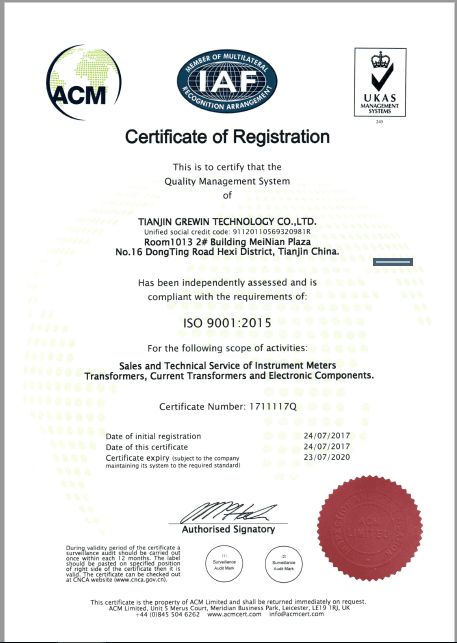

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

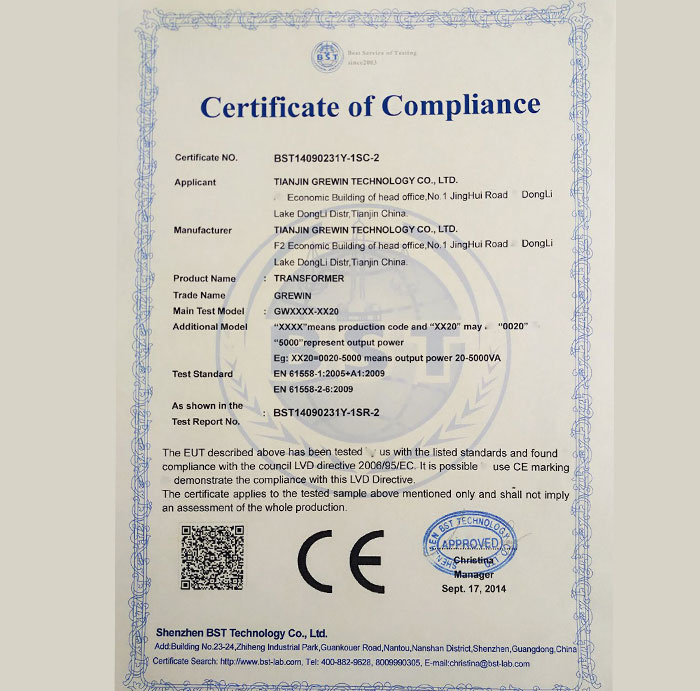

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
