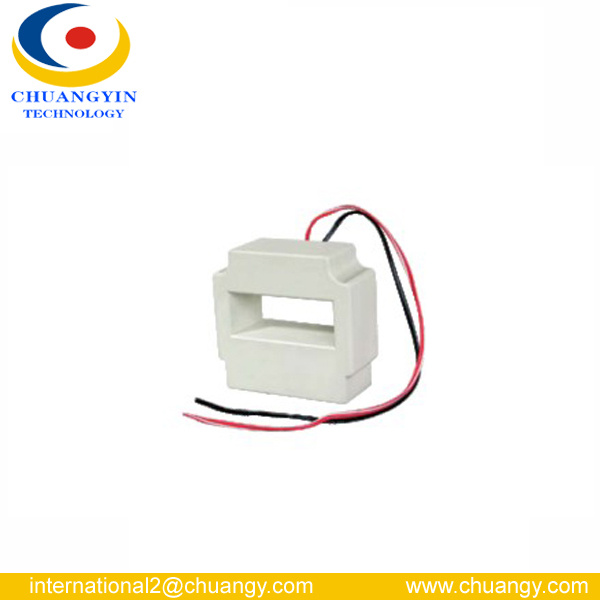

LV Plastic Type Current Transformer (Designed for Matching Circuit Breaker)

Name: LV Plastic Type Current Transformer (Designed for Matching Circuit Breaker)
Brand: all-electronics-online.com
SKU: 757872085
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 28-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EBH-0.66S LV CT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	Plastic Type
Current Transformer:	CT
Designed For Matching Circuit Breaker:	LV
China:	Factory
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

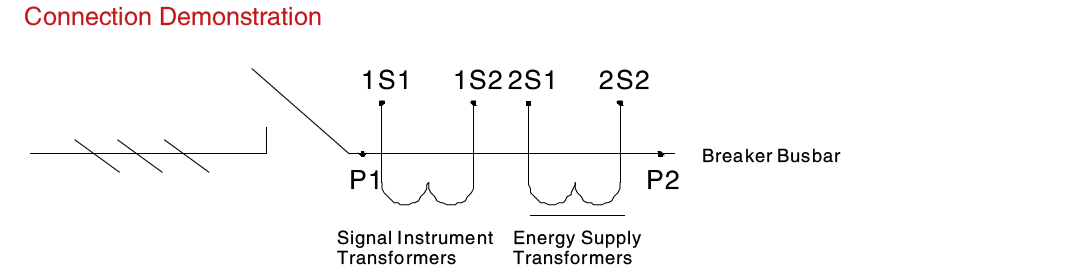

EBH-0.66S current transformers are designed for matching circuit breaker, they can provide reliable signal and power are made up of energy supply transformer and Rogowski coil.
Energy supply transformer: be able to provide power for protective relay when short circuit
Quickly saturation can protect relay without burning.

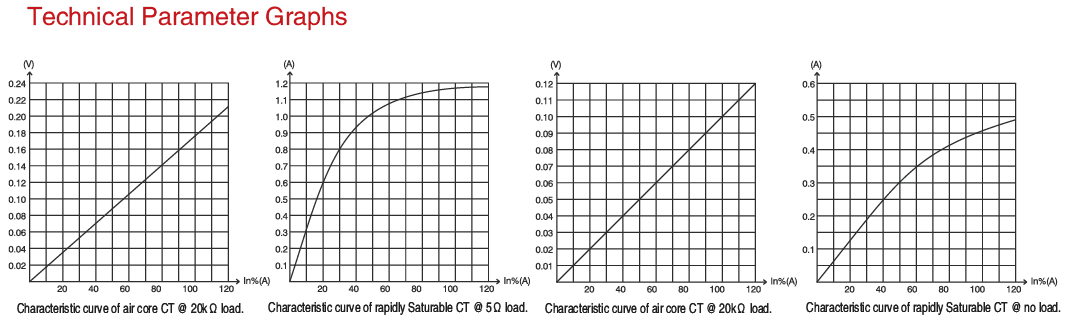

Rogowski coil: Collecting data, good linearity and non-saturation can reflect exact accuracy classes.
Standard: IEC61869-1&2

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
