LV Ring Main Unit C-Gis Bushing Type CT

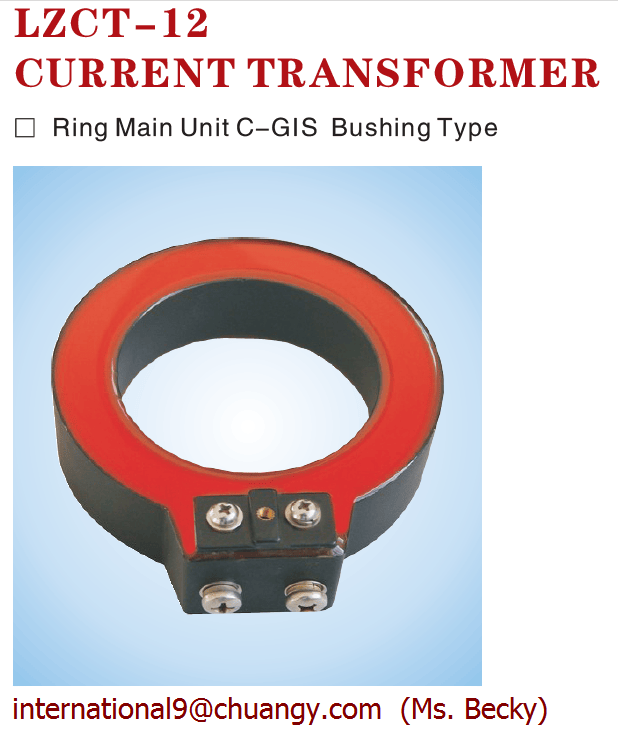

Name: LV Ring Main Unit C-Gis Bushing Type CT
Brand: all-electronics-online.com
SKU: 797369765
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 52-60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZCT-12
LV:	Low-Voltage
Current Transformer:	CT
Bushing Type:	Ring Type
China:	Factory
Rated Secondary Current:	5A or 1A
Ring Main Unit:	C-Gis
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

LZCT-11 current transformer/CT,the secondary windings are full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the inner hole, bottom has installation inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal collection and protective relaying in the power system with the rated voltage 11kV of bushing or cable ect.

Technical Data:

1. Rated secondary current:                    5A or 1A
2. Power frequency withstand voltage:      3kV
3. Rated frequency:                                 50/60Hz
4. Installation site:                                   Indoor
5.Technical standard:                               IEC 60044-1:2003,  IEC 61869-1&2

Specification

MODEL	LZCT1-11C			LZCT1-11P		LZCT1-11CP
Purpose	Measuring Current Transformer			Protective Current Transformer		Double Winding CT
Rated Primary Voltage(kV)	Accuracy Class and Rated burden(VA)
Rated Primary Voltage(kV)	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
50			1
75		1	1.5
100		2.5	5		2		1
200		5	5	1.5	2.5		2.5
300	2.5	5		2.5		1.5	2.5		2.5
400	5	7.5		3.75		2.5	5		2.5
500	5	10		5		2.5	5	2	3.75
600	5	10		5		3.75	7.5	2.5	5

MODEL	LZCT2-11C			LZCT2-11P		LZCT2-11CP
Purpose	Measuring Current Transformer			Protective Current Transformer		Double Winding CT
Rated Primary Voltage(kV)	Accuracy Class and Rated burden(VA) COS=0.8
Rated Primary Voltage(kV)	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
30			1.5
50		1.5	2.5		1.5
75		2.5	5		2.5		1.5
100		2.5	5		3.75		2.5		2
200	2.5	5	7.5	3.75	5		3.75	1.5	2.5
300	5	7.5		5		2.5	5	2.5
400	7.5	10		7.5		5	7.5	3.75
500	10	15		10		5	10	5
600	10	15		10		5	10	5

Note: Upon request we are glad to offer transformers according to other technical specs.
