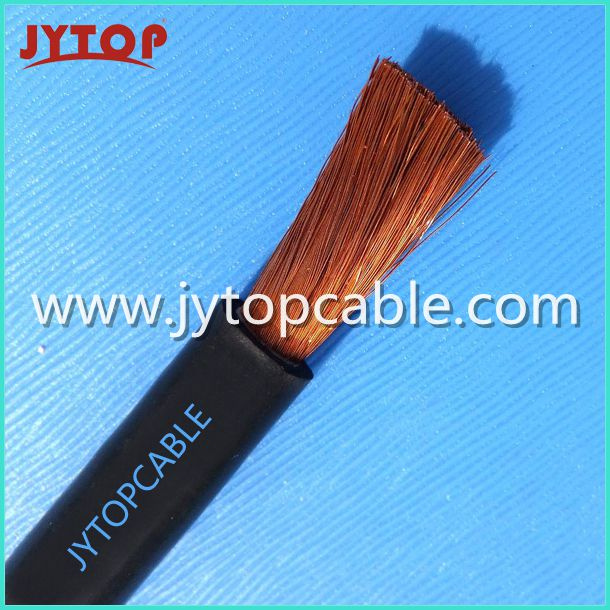

LV Rubber Insulated Welding Cable Epr Cable
| Price: |
US $ 0.6-58/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
rubber cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
450/750V |
| Popular Size: |
50mm2 |
| Color: |
Black |
| Business Type: |
Manufacturer |
| Certificate: |
Ce, ISO 9001 |
| Key Word: |
Rubber Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper Clad Steel |
| Insulation Material: |
Rubber |
| Certification: |
CCC |
| Sheath Material: |
Rubber |
| Brand: |
Jytop |
Product Description
Low voltage LV Rubber Insulated and Rubber Sheathed Cable EPR CABLE 1. Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.2. Standards
BS7919, CENELEC HD22.4 S4
3. Technical data
Conductor
Class 5 flexible plain copper
To BS EN 60228: 2005 (previously BS6360)
Insulation
EPR(Ethylene propylene rubber) type E14 to BS 7655
Sheath
PCP (Polychloroprene) Type EM2 to BS7655
Sheath color
Black
Voltage rating
450/750V
Temperature rating
Conductor operating temperature
-300C to +600C(850C max. )
Min. Bending radius
Up to 25mm2: 6 X overall diameter
Above 25mm2: 8 X overall diameterCore identification:
2 cores: Blue, Brown
3 cores: Green/Yellow, Blue, Brown
4 cores: Green/yellow, Brown, Black, Grey
5 cores: Green/yellow, Blue, Brown, Black, Grey
6 cores and above: Black with white numbers, Green/Yellow
| Part number | No. of cores x Nominal cross sectional area(mm 2 ) | Nominal thickness of Insulation(mm) | Approx. overall diameter of finished cable (mm) | Approx. net weight of finished cable
(kg/km) | Max. D. C resistance @ 20º C(Ω /km) |
| A6G10015 | 1x1.5 | 0.8 | 5.9 | 50 | 13.3 |
| A6G10025 | 1x2.5 | 0.9 | 6.5 | 65 | 7.98 |
| A6G1004 | 1x4 | 1.0 | 7.4 | 89 | 4.95 |
| A6G1006 | 1x6 | 1.0 | 8.1 | 115 | 3.30 |
| A6G1010 | 1x10 | 1.2 | 10.4 | 190 | 1.91 |
| A6G1016 | 1x16 | 1.2 | 11.6 | 259 | 1.21 |
| A6G1025 | 1x25 | 1.4 | 13.7 | 375 | 0.780 |
| A6G1035 | 1x35 | 1.4 | 15.4 | 492 | 0.554 |
| A6G1050 | 1x50 | 1.6 | 17.7 | 675 | 0.386 |
| A6G1070 | 1x70 | 1.6 | 20.0 | 908 | 0.272 |
| A6G1095 | 1x95 | 1.8 | 22.1 | 1171 | 0.206 |
| A6G1120 | 1x120 | 1.8 | 24.5 | 1445 | 0.161 |
| A6G1150 | 1x150 | 2.0 | 26.9 | 1783 | 0.129 |
| A6G1185 | 1x185 | 2.2 | 28.9 | 2125 | 0.106 |
| A6G1240 | 1x240 | 2.4 | 32.6 | 2733 | 0.0801 |
| A6G1300 | 1x300 | 2.6 | 36.5 | 3348 | 0.0641 |
| A6G1400 | 1x400 | 2.8 | 40.4 | 4293 | 0.0486 |
| A6G1500 | 1x500 | 3.0 | 42.6 | 5262 | 0.0384 |
| A6G1630 | 1x630 | 3.0 | 47.2 | 6790 | 0.0287 |
NOTE:
Any more details specification of cables, please don't hesitate to email us !
we will support to you at any time.
