Prod Model: |
three phase CT |
LV: |
Three Phase |
Indoor: |
Ring Type |
Open Type Current Transformer: |
Gis Type LV |
Three Phase Cable: |
Ratio150~600/5 |
25 To 50 Oc Ambient Temperature: |
Signal Acquisition |
Application: |
Switchgear |
Type: |
Current Transformer |
Phase: |
Single |
Product Description
Description:

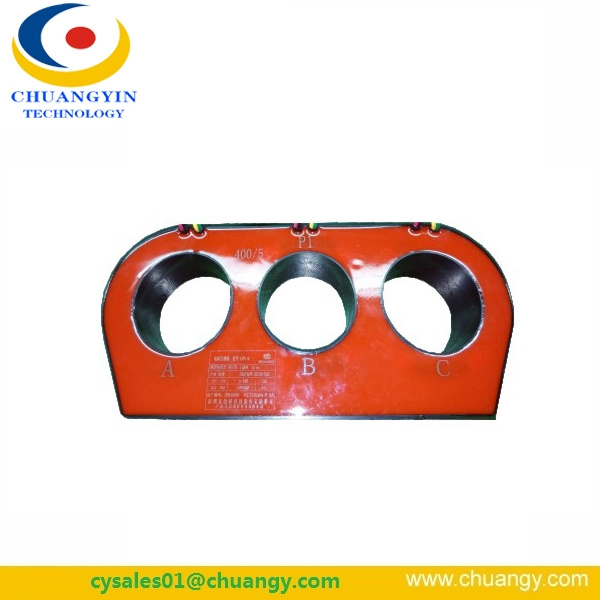

LSY100-Φ82-11C(P) open type current transformer(CT) core is composed of high permeability semicircle circular silicon steel sheet, has the high accuracy of measurement.Used in power system is rated voltage 10kv cable, for current measurement, signal acquisition and relay protection.
Technical Data:
1. 25 to 50 ºC ambient temperature
2. the installation place: indoor
LMZC-11 Current Transformer
The secondary windings are full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the inner hole, bottom has installation inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal collection and protective relaying in the power system with the rated voltage 11kV of bushing or cable ect.
Technical Data
1. Rated secondary current 5A or 1A
2. Power frequency withstand voltage: 3kV
3. Rated frequency 50/60Hz
4. Installation site: Indoor
Specification
Model | LMZC1-11H70C | LMZC1-11H70P | LMZC1-11H70CP |
Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer |
Rated Primary current | Accuracy class and rated burden (VA) COS=0.8 |
0.5 | 1 | 10P10 | 0.5 | 10P10 |
30 | | 1 | | | |
50 | 1 | 2.5 | | | |
75 | 2.5 | 5 | 0.5 | 0.5 | 0.5 |
100 | 5 | 7.5 | 0.5 | 0.5 | 0.5 |
200 | 5 | 7.5 | 0.5 | 0.5 | 0.5 |
300 | 5 | 7.5 | 1 | 0.5 | 0.5 |
Note: Upon requset we are glad to offer transformers according to other technical specs.
Note:
Please browse our website and download product catalogue for detailed information.
