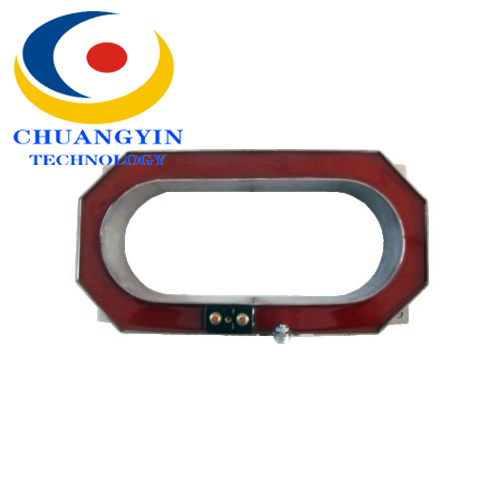

LV Zero-Sequence Ring Type Current Transformer (CT)

Name: LV Zero-Sequence Ring Type Current Transformer (CT)
Brand: all-electronics-online.com
SKU: 757681465
Availability: InStock
Rating: 4.3 (89 reviews)

Price:	US $ 140-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXZC-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Metal Shell:	Zero Sequence
LV:	Low-Voltage
Current Transformer:	CT
China:	Factory
Zero-Sequence Current Transformer:	50/60Hz
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

LXZC-11 zero-sequence current transformer/CT

Matched with signal equipment and protective relaying equipment when power system produce zero sequence earthing current, act the equipment components to realize protective or monitoring function
Matched with signal equipment and protective relaying equipment when power system produce zero sequence earthing current, act the equipment components to realize protective or monitoring function

Sepcification

MODEL	LXZC-152R50C			LXZC-152R50P
PURPOSE	MEASURING CURRENT TRANSFORMER			PROTECTIVE CT
RATED CURRENT RATIO	ACCURACY CLASS AND RATED BURDEN(VA) COS=0.8
RATED CURRENT RATIO	0.5	1	3	10P10	10P5
20/1		0.2	0.2
30/1		0.4	0.5
40/1		0.6	1
50/1		1	1
75/1		1.5	1.5
100/1		2.5	3.75	1.5	2.5
150/1	1.5	3.75	5	2.5	5
200/1	2.5	5	5	3.75	7.5
300/1	3.75	7.5	7.5	5	10
100/5		2.5	3.75	1.5	2.5
150/5	1.5	3.75	5	2.5	5
200/5	2.5	5	5	3.75	7.5
300/5	3.75	7.5	7.5	5	10

Note: Upon requset we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
