LV Zero-Sequence Ring Type Current Transformer or CT

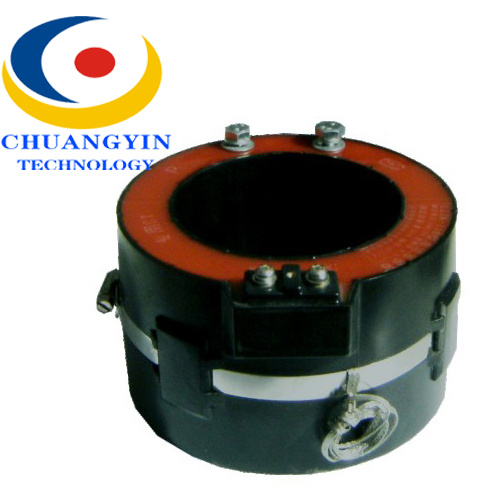

Name: LV Zero-Sequence Ring Type Current Transformer or CT
Brand: all-electronics-online.com
SKU: 757679955
Availability: InStock
Rating: 4.5 (129 reviews)

Price:	US $ 140-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXZK-120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Zero-Sequence:	Ring Type
Current Transformer:	CT
LV:	Split Core Current Transformer
80 Mm:	240 mm
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:
LXZK-120 series of zero sequence current transformer, diameter from 80 mm to 240 mm (cable), used in power system with grounding zero sequence current relay protection device or signal device, motion device components, protection or monitoring.

Main technical parameter
1. Rated secondary current: 5A,1A
2. Power frequency withstand voltage: 3kV.
3. Rated frequency: 50/60Hz
4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
5. Installation site: indoor
6. Other technical parameter pls see as follow:

Model	LXZK2(3)- Φ120C			LXZK2(3)- Φ120P
Purpose	Measuring current transformer			Protective current transformer
Rated current ratio	Accuracy class and rated burden(VA)
Rated current ratio	0.5	1	3	10P10	10P5
30			1		1
50			1.5		1.5
75			2.5		2.5
100			2.5		2.5
200		2.5	5	2.5	3.75
300		5		3.75
400	5	5		5
500	5			5
600	5			5

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
