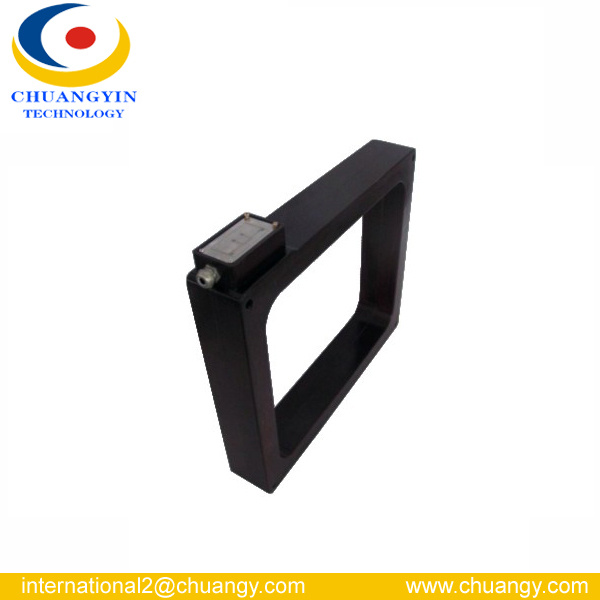

LV Zero Sequence Window Type Current Transformer

Name: LV Zero Sequence Window Type Current Transformer
Brand: all-electronics-online.com
SKU: 757681815
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 167-180/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZXW-0.72
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Window Type:	LV
Zero Sequence:	Large Size
Current Transformer:	CT
Installed:	LV Zero Sequence Window
Zero:	Sequence Window
Window 800:	50/60Hz
Low Voltage:	Epoxy Resin
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

LZXW-0.72 current transformers(CT) epoxy resin vacuum casting
Have good electrical mechanism performance property, damp proof and dirt proof ability
Shape is beautiful and it is easy to be installed

Technical Data:

1. Rated Installation level: 12/28/75kV
2. Rated frequency: 50/60Hz
3. Installation site: Indoor
4. Technical standard: IEC 60044-1:2003 , IEC 61869-1&2

Specification

Type	Ratio (A)	Accuracy Class	Rated Output (VA)
LZXW3-0.72/370450 LZXW2-0.72/400500	50/1	10P10	1
	50/5	10P10	0.5
	100/1	10P10	2
	100/5	10P10	1
	150/1	10P10	2
	300/5	10P10	1
	500/1	5P10	10
	600/5	10P10	5
	800/5	0.5	15

Note: Upon requset we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
