Lvdt Distance Position Transducer for Glass Product Line Detection

Name: Lvdt Distance Position Transducer for Glass Product Line Detection
Brand: all-electronics-online.com
SKU: 827817555
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 120-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDVN12
Dymatic Characteristics:	Max 10Hz
Power Supply:	DC or AC
Application:	Glass Product Line Detection
Output:	Digital or Anolog
Repetitive Error:	Less 0.01% of Fs
Material:	Aluminum Alloy

Product Description

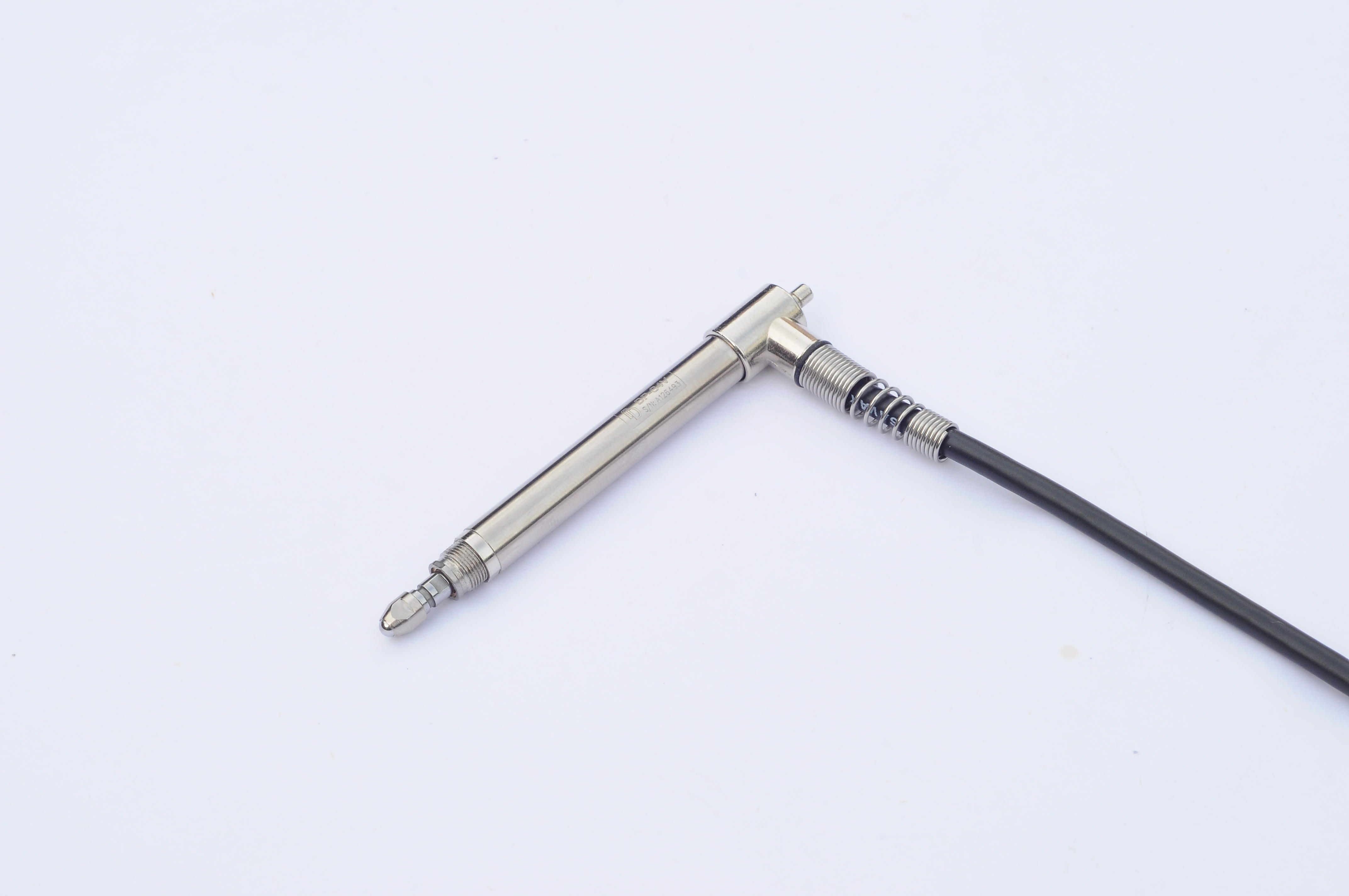

LVDT Distance Position Transducer for Glass Product Line Detection

SDVN12 Series parameter:

Input Voltage	9~28V DC
Input Current	input current ≤12mA (Voltage output type) input current 4~20mA (2wire, current output type)
Measuring range	2.5, 5 , 10, 15mm
Output signal	0~5V (9~28V DC input voltage) 0~10V (15~28V DC input voltage) 4~20mA (2 wire, 15~28V DC input voltage) Digital output (9~28V DC input voltage)
Linearity	Analog output:±0.25%,±0.5% etc optional; Digital output: 0.25%,0.1% etc optional
Repeatability	≤0.01% of FS
Resolution	≤0.01um(max),Digital output is 16 bit
Dynamic characteristics	250Hz(max)
Operating temperature	-25°C ~ +85°C
Temperature coefficient	Null point ≤0.01%/°C Sensitivity ≤0.025%/°C
Operating air pressure	0.2MPa-0.7MPa

SDVN12 Product Application and Feature
Application:	Feature:
Glass product line detection	Outer diameterΦ20mm ,SS 304 shell, separate-core
Metal processing and detection	DC or AC power supply
The valve position detection and control	Contactless operation, long life
Building materials detection and control	Three wires voltage output 0-5V or 0-10V
Auto unload vehicles applications	Two wires current output 4-20mA

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
