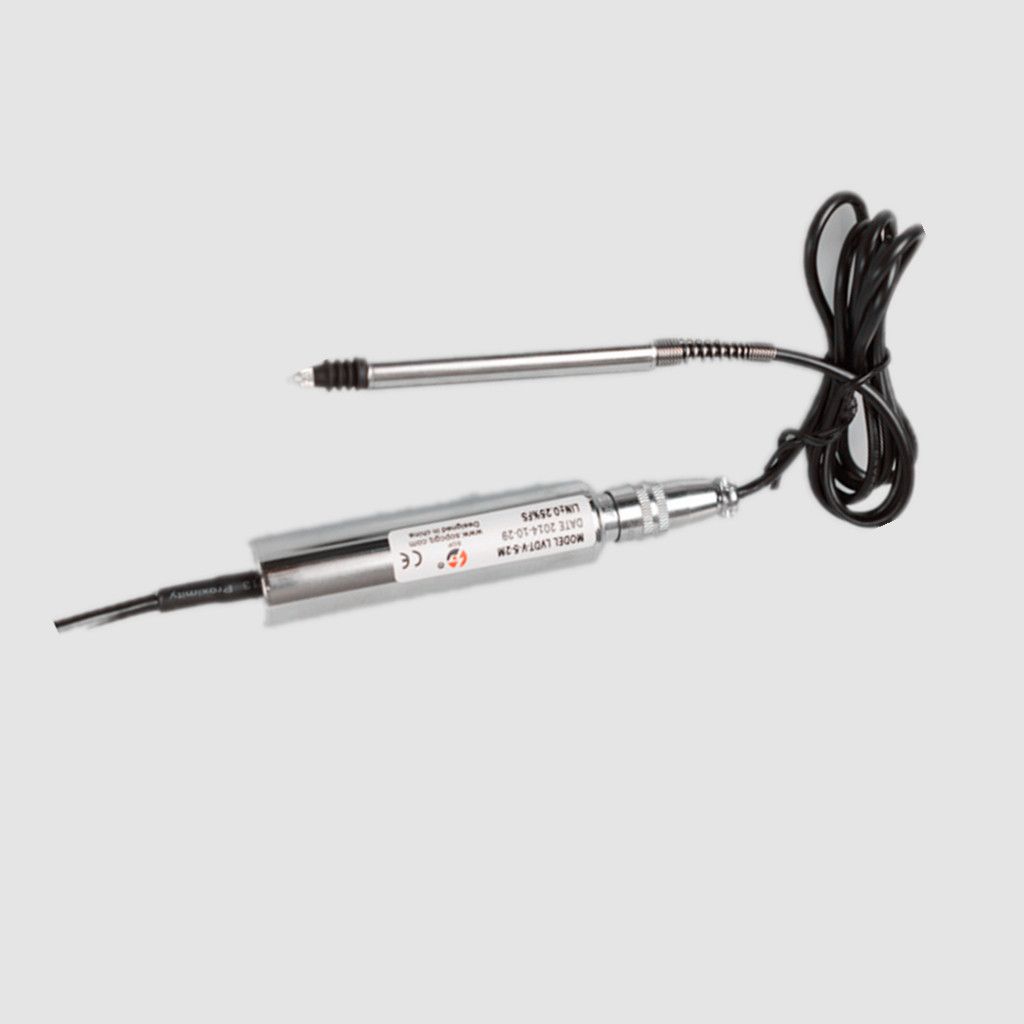

Lvdts Digital Pen-Displacement Sensor for Length Measurement Sensor

Name: Lvdts Digital Pen-Displacement Sensor for Length Measurement Sensor
Brand: all-electronics-online.com
SKU: 820942465
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 130-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lvdts-V
Excitation Power:	5kHz(1-10kHz)
Working Temperature:	-25ºC~85ºC
Displacement Range:	2mm,5mm,10mm
Cetification:	RoHS
Material:	Aluminum Alloy

Product Description

Lvdts Digital Pen-displacement Sensor for Length Measurement Sensor

Pen-Displacement Sensor Parameter Table:

Excitation voltage	3Vnms(1~3Vnms)
Excitation power	5Hz(1-10KHz)
Displacement range(mm)	2, 5, 10
Output signal	Ac signal or Transmitter output 0-5V( 9-28V DC supply voltage )
	Ac signal or Transmitter output 0-10V(15-28V DC supply voltage )
	Ac signal or transmitter output 4-20mA(two wires , 15-28V DC supply voltage)
	Digital output (9-28V DC supply voltage)
Linearity error	Analog output:±0.25%,±0.5% or others, digital output:0.25%,0.1% or others
Repeat error	≤1um
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Zero point ≤0.01%/°C
Temperature coefficient	sensibility≤0.025%/°C

Sensor Features:
Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
Rugged construction, compact size, easy to install

Displacement sensor Advantage:
*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
