Product Description

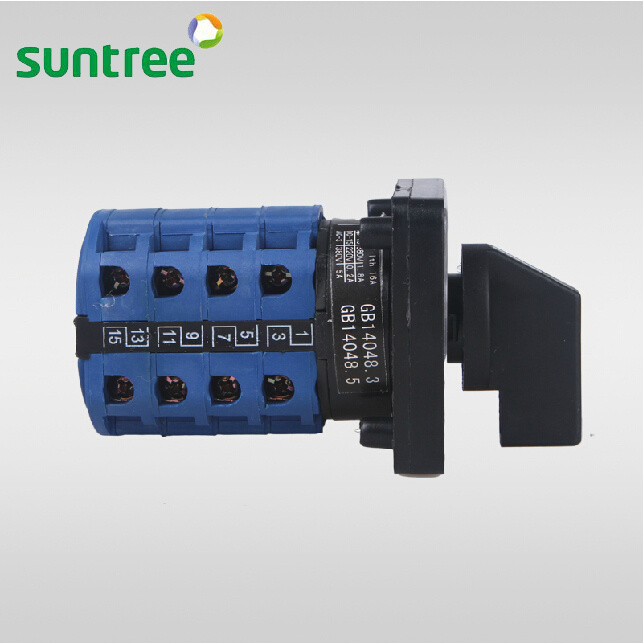

LW26 rotary paddle level switch
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box for 20A,25A,32A and 63A
Technical parameters
Description |
LW26-10 |
LW26-20 |
LW26-25 |
LW26-32 |
LW26-63 |
LW26-125 |
LW26-160 |
Rated insolation voltage | Ui | V |
660 |
660 |
660 |
660 |
660 |
660 |
660 |
Rated thermal current |
Ith | A |
10 |
20 |
25 |
32 |
63 |
125 |
160 |
Rated working voltage |
Ue | V | 240 | 440 | 24 | 110 | 240 | 440 | 24 | 110 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
Rated working current |
Ie |
|
|
|
|
| 20 | 20 |
|
|
|
|
|
|
|
|
|
|
|
|
AC-21A AC-22A |
| A | 10 | 10 |
|
|
|
|
|
| 25 | 25 | 32 | 32 | 63 | 63 | 100 | 100 | 150 | 150 |
AC-23A |
| A | 7.5 | 7.5 |
|
| 15 | 15 |
|
| 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 |
AC-2 |
| A | 7.5 | 7.5 |
|
| 15 | 15 |
|
| 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 |
AC-3 |
| A | 5.5 | 5.5 |
|
| 11 | 11 |
|
| 15 | 15 | 22 | 22 | 36 | 36 | 75 | 75 | 95 | 95 |
AC-4 |
| A | 1.75 | 1.75 |
|
| 3.5 | 3.5 |
|
| 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 | 30 | 55 | 55 |
AC-15 |
| A | 2.5 | 2.5 |
|
| 5 | 4 |
|
| 8 | 5 | 14 | 6 |
|
|
|
|
|
|
AC-13 |
| A |
|
| 12 | 0.4 | 0.4 |
| 20 | 0.5 | 0.5 |
|
|
|
|
|
|
|
|
|
power |
| P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC-23A |
| KW | 1.8 | 3 |
|
| 3.7/2.5 | 7.5/3.7 |
|
| 5.5/3 | 11/5.5 | 7.5/4 | 15/7.5 | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 |
AC-2 |
| KW | 2.5 | 3.7 |
|
| 4 | 7.5 |
|
| 5.5 | 11 | 7.5 | 15 | 18.5 | 30 | 30 | 45 | 37 | 55 |
AC-3 |
| KW | 1.5 | 2.2 |
|
| 3/2.2 | 5.5/3 |
|
| 4/3 | 7.5/3.7 | 5.5/4 | 11/5.5 | 11/6 | 18.5/11 | 15/7.5 | 30/13 | 22/11 | 37/18.5 |
AC-4 |
| KW | 0.37 | 0.55 |
|
| 0.55/0.75 | 1.5/1.5 |
|
| 1.5/1.1 | 3/2.2 | 2.7/1.5 | 5.5/3 | 5.5/2.4 | 7.5/4 | 6/3 | 12/5.5 | 10/4 | 15/7.5 |
Mechnical life
Mechanical life without load:0.1×106times,operation frequency is 120 times/h.
Mechanical life with load:0.03×106times operation frequency is 120 times/h
