Lw26GS Series Pak-Lock Type Switches

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

1.Description
1)The LW26GS switch has 6 current ratings: 20A, 25A, 32A, 63A, 125A and 160A. For 20A and 25A is able to install M1 or M2 plate, and for 32A and 63A is able to install M2 or M3 plate, for 125A and 160A is able to install M3 plate only. The M1 plate is able to put 2 Re: -1,-2,-3 represent M1,M2,M3.

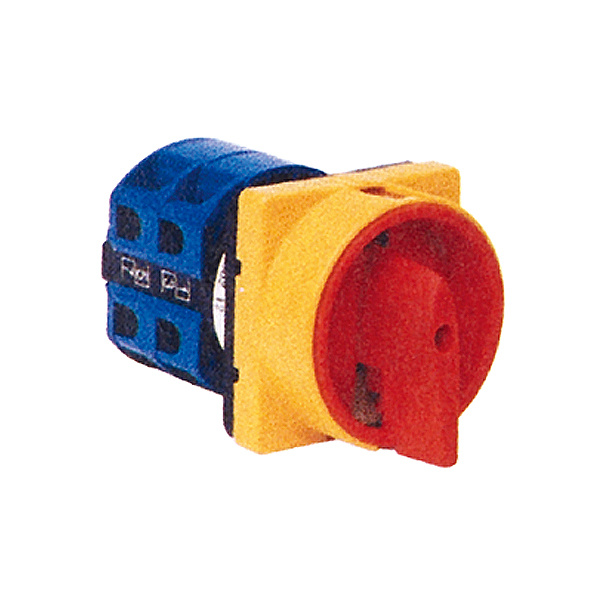

2)The LW 26GS switch has two types: Common type, black plate black handle Quick stop type, with quick stop mark, yellow plate and red handle.

2.Specification

Description	LWGS2620	LWGS2625	LWGS2632	LWGS2663	LWGS26125	LWGS26160
Rated working voltage(Ue)	V	440	440	440	440	440	440
Reted thermal current(Ith)	A	20	25	32	63	125	160
Rated working current(Ie) AC-21A AC-22A AC-23A	A A A	20 20 15	25 25 22	32 32 30	63 63 57	100 100 90	150 150 135
Power(P) AC-23A	KW	7.5	11	15	30	45	75
Operation
Non-load		8500	8500	8500	8500	8500	8500
Load		1500	1500	1500	1500	1500	1500
Total		10000	10000	10000	10000	10000	10000

3.Dimension and Installation

Description	Escutcheon plate	Dimension(mm)	Installation(mm)
A	C	L	H	E	F	D1	D2
LW26GS-20	M1	48	43	42	33	36	36	8.5	4.5
LW26GS-20	M2	64	43	43	42	48	48	8.5	4.5
LW26GS-25	M1	48	45.2	50	33	36	36	8.5	4.5
LW26GS-25	M2	64	45.2	51	42	48	48	8.5	4.5
LW26GS-32	M2	64	58	55	42	48	48	10	4.5
LW26GS-32	M3	88	58	55	52	68	68	13	6
LW26GS-63	M2	64	66	72.5	42	48	48	10	4.5
LW26GS-63	M3	88	66	72.5	52	68	68	13	6
LW26GS-125	M3	88	84	88	52	68	68	13	6
LW26GS-160	M3	88	88	100	52	68	68	13	6
