Lw28GS Series Manual Rotary Switch

Name: Lw28GS Series Manual Rotary Switch
Brand: all-electronics-online.com
SKU: 702915172
Availability: InStock
Rating: 5 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW28GS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Voltage:	380V
Mechanical Life:	2 Years
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Certification:	RoHS

Product Description

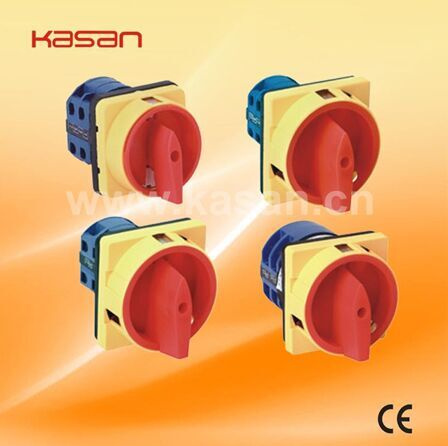

LW28GS Series Padlock type manual Rotary switch

Product desription:
Padlock type manual Rotary switch specification has 20A, 25A, 32A, 63A, 125A, 165A four ra current. In (1) type switch,20A has big and small two size panels,the remain specification is big size that can use 3 locks at the same time,and small size c use 2 locks at the same time. The (2) type is big panel and can use 3 locks at the same time.

Padlock type switch can be divided by use with general and emergency stop sty General style(LW28GS-/03) is black panel, black handle. Emergency style(LW28GS-/04) is ergency stop sign, yellow panel red handle.

Technic Data:

Type Specification	rated insulation voltage Ui (V)	rated working voltage Ue(V)	Convention thermal current Ith(A)	Rated working currentle Size(mm)
Type Specification	rated insulation voltage Ui (V)	rated working voltage Ue(V)	Convention thermal current Ith(A)	AC-21A	AC-22A	AC-23A	A	L	D
LW28GS-20	690	440	20	20	20	15	43	43	Φ8.5
LW28GS-25	690	440	25	25	25	22	45.2	51	Φ8.5
LW28GS-32	690	440	32	32	32	30	58	55	Φ10
LW28GS-63	690	440	63	63	63	57	66	72.5	Φ10
LW28GS-125	690	440	125	125	125	90	84	90	Φ13
LW28GS-160	690	440	160	160	160	135	88	101	Φ13
