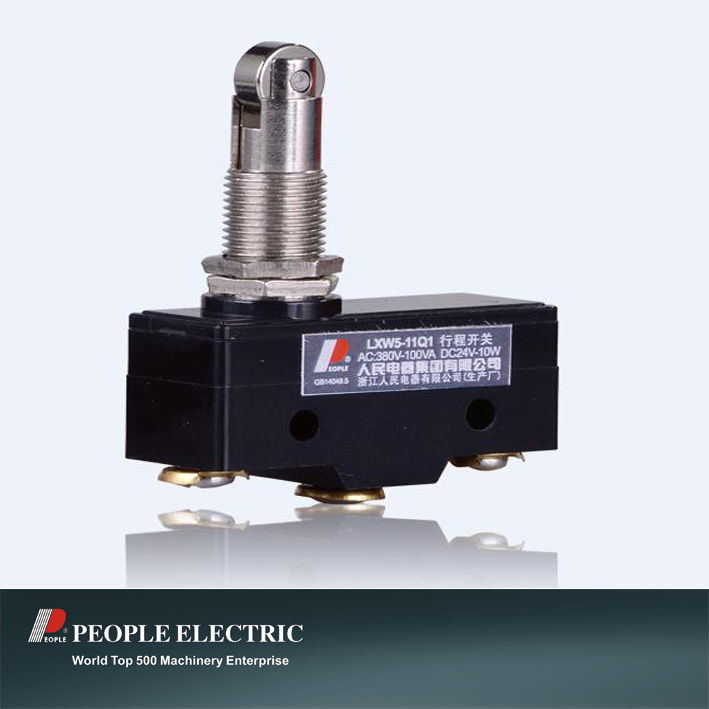

Lxw5 15A High Accuracy Reliable Microswitch with Roller Lever
| Price: |
US $ 0.756-1.135/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LXW5 |
| Operation Temperature: |
25 °c to +80 °c |
| Pressing Type: |
Lever Roller |
| Protection: |
Waterproof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Brand: |
People |
Product Description
Product Description
1. Switch Feature:
Tip material: Silver tip
Contact material: Brass
Level material: stainless steel top roller plunger
Ambient operating temperature: 25°C to 80°C
Ambient operating humidity: 35% to 85%RH
High CO capacity(15A)
Specification
Rated voltage | Non-inductive load | Inductive load |
| Resistive load | lamp load | Inductive load | Motor load |
| N.C | N.O | N.C | N.O | N.C | N.O | N.C | N.O |
| AC 125V | 15 | 15 | 3 | 1.5 | 5 | 2.5 | Max 30 | Max 15 |
| AC 250V | 15 | 15 | 2.5 | 1.25 | 3 | 1.5 |
| AC 500V | 3 | 3 | 1.5 | 0.75 | 1.5 | 0.75 |
| DC 8V | 15 | 15 | 3 | 1.5 | 5 | 2.5 |
| DC 14V | 15 | 15 | 3 | 1.5 | 5 | 2.5 |
| DC 30V | 6(2) | 6 | 3 | 1.5 | 5 | 2.5 |
| DC 125V | 0.4 | 0.4 | 0.4 | 0.4 | 0.05 | 0.05 |
| DC 250V | 0.2 | 0.2 | 0.2 | 0.2 | 0.03 | 0.03 |
| Operation speed | 0.01mm to 1m/s |
| Operation frequency | Mechanically:240 times/min; Electrically: 20 times/min |
| Contact resistance | Max:1MΩ(initial) |
| Isolation resistance | ≥100MΩ(Fiscop,intecad)C134(below DC500V) |
| Withstand voltage | Non-continuous terminal 1000VAC , 2000VAC between load current and ground, 50/60Hz for 1 minutes |
| Shock | 1.5mm |
| Ambient temperature | General type: -25ºC to 80ºC, sealed type:-15ºC to 80ºC |
| Ambient humidity | General type: ≥ 85% RH; sealed type: ≥95% RH |
| Service life | Mechanically: ≥20,000,000 times; Electrically:≥ 500,000 times |
