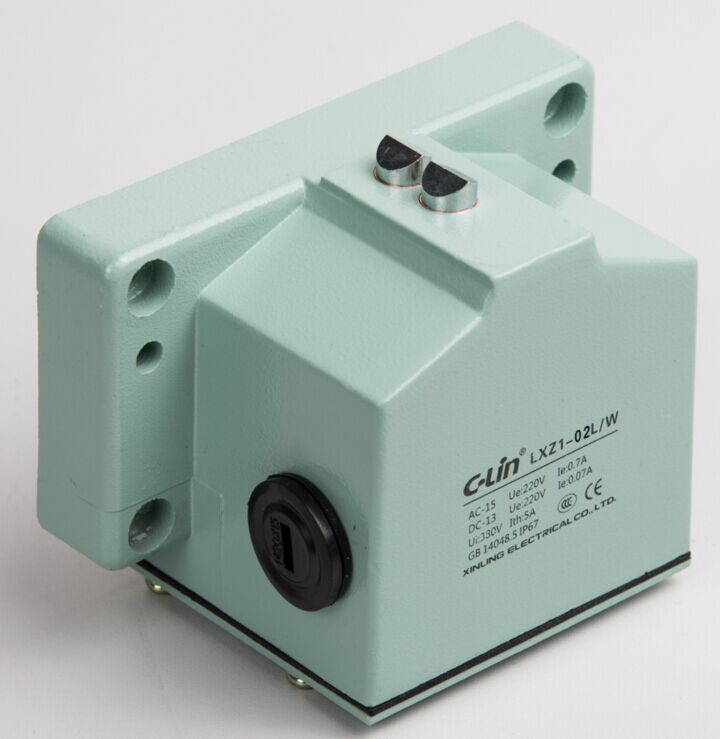

Lxz1-02L/W Limit Switch/ Limited Switch/ Switch
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LXZ1-02L/W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Speed: |
5mm~0.5m/S |
| Operating Frequency: |
Mechanical:120 Operations/Min;Electrical:20 Operat |
| Insulation Resistance: |
100m Min(at 500VDC) |
| Contact Resistance: |
50m Max ( Initial Value) |
| Conventional Thermal Current: |
5A |
| Electrical Prameter: |
AC220V/0.7A DC220V/0.07A |
| Dielectric Strength1: |
1890V, 50/60Hz for 1min Between Terminals of The S |
| Dielectric Strength 2: |
2500V, 50/60Hz for 1 Min Between Terminal and Non- |
| Dielectric Strength3: |
2500V, 50/60Hz for 1 Min Between Terminal and Grou |
| Vibration: |
Malfunction:10Hz~55Hz, 1.5mm Double Amplitude |
| Pressing Type: |
Push-Button |
| Protection: |
Waterproof |
| Size: |
Small-Sized |
| Breaking Form: |
Duplex Type |
| Breaking Capacity: |
General Type |
| Brand: |
Clin |
| Environment: |
50Hz ~60Hz 220V |
Product Description
LXZ1 series limit switch is suitable for the circuit of 50/60Hz, AC250V or DC220V to control, limit, location, travel, signal or program conversion. This series limit switches have strong dust-, liquid- and oil-resistance with compact size, sensitive action and high accuracy. This series products conform to GB14048.5 IEC60947-5-1 standards.
| LXZ1 |
|
|
|
|
| Model | Operating Force max | Releasing Force min | Pretravel max | Overtravel min |
| LXZ1-02Z/N | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-03Z/N | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-04Z/N | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-05Z/N | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-06Z/N | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-02L/W | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-03L/W | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-04L/W | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-05L/W | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| LXZ1-06L/W | 1700gf(16.67N) | 500gf(4.9N) | 4mm | 4mm |
| Operating Speed | 5mm~0.5m/s |
| Operating Frequency | Mechanical:120 operations/min;Electrical:20 operations/min |
| Contact Resistance | 50mΩ max (initial value) |
| Insulation Resistance | 100mΩ min(at 500VDC) |
| Conventional Thermal Current | 5A |
| Electrical Prameter | AC220V/0.7A DC220V/0.07A |
| Dielectric Strength | 1890V, 50/60Hz for 1min between terminals of the same polarity |
| 2500V, 50/60Hz for 1 min between terminal and non-current carrying metal parts |
| 2500V, 50/60Hz for 1 min between terminal and ground |
| Vibration | malfunction:10Hz~55Hz, 1.5mm double amplitude |
| Shock | mechanical resistance:500m/s2; malfunction:200m/s2 |
| Ambient Environment | Temperature:minus5centigrade~85 centigrade(no ice); Humidity:<95%RH |
| Working Life | Mechanical:5*105 Min.; Electrical:105 |
| Degree of Protection | IP66 |
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
