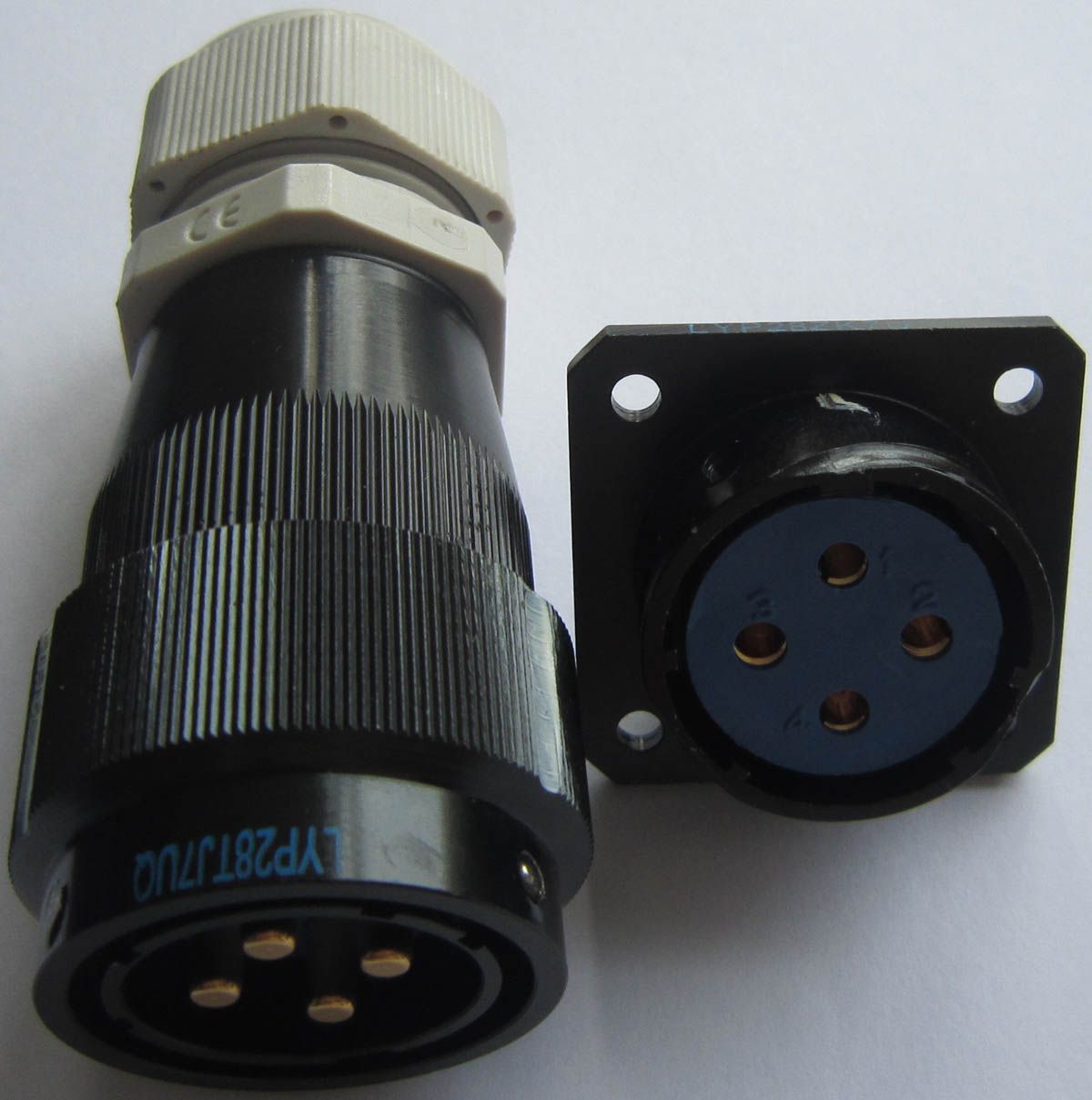

Lyp28 Series Bayonet Connect Connectors

Name: Lyp28 Series Bayonet Connect Connectors
Brand: all-electronics-online.com
SKU: 688558145
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 13.3-15/Set
Trade Terms:	FOB
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYP28-7uq
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Nickel Plated Connectors
Size1:	Lyp28
Size2:	L2m
Size3:	Lyp28-7uq
Size4:	Lyp28-10uq

Product Description

LYP28 series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It is the ideal product of a new generation to replace the old Y2 and P series connectors. It can interchange with the same type of YP series connectors.

Product Ordering
LYP 28 Z J M 7 U
1 2 3 4 5 6
1. Name: LYP series circular connectors
2. Shell type: 28
3. Type: T: Plug, Z: Receptacle
4. Contact type: J: Pin, K: Socket
5. M: Sealed receptacle, (without M: Normal receptacle or plug)
6. Contacts figure: No. 7 of LYP28,mean 4x3.5 contacts power connector.
Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40ºC~ +125ºC	(92~98)% at40+2ºC	101.33KPa~6.67Pa	10~2000Hz, 196m/s²	392m/s²	500

Contact	Current	Voltage	Contact resistance
Ø1mm	5A	500V	≤5mΩ
Ø1.5mm	10A		≤3mΩ
Ø2.5mm	25A		≤1mΩ
Ø3.5mm	50A		≤1mΩ
Ø5.5mm	100A		≤0.5mΩ

Enviroment	Voltage proof	Insulation resistance
Normal	2-20 pins 1500V,else 1000V	≥1000MΩ
Moisture	1000V	≥20MΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
