Lzck350-10 100/5A Epoxy Resin Cast Split Core Current Transformer

Name: Lzck350-10 100/5A Epoxy Resin Cast Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 721733112
Availability: InStock
Rating: 5 (59 reviews)

Price:	US $ 100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZCK350-10
Standards:	IEC60044-1; IEC 61869-2; ANSI C57.13; Ntc 2205; GB
Rated Primary Current:	20-600A
Rated Load:	25va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Weight (Kg):	3.1
Accuracy Class:	0.5%, 1%, 3%
Color:	Red, Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

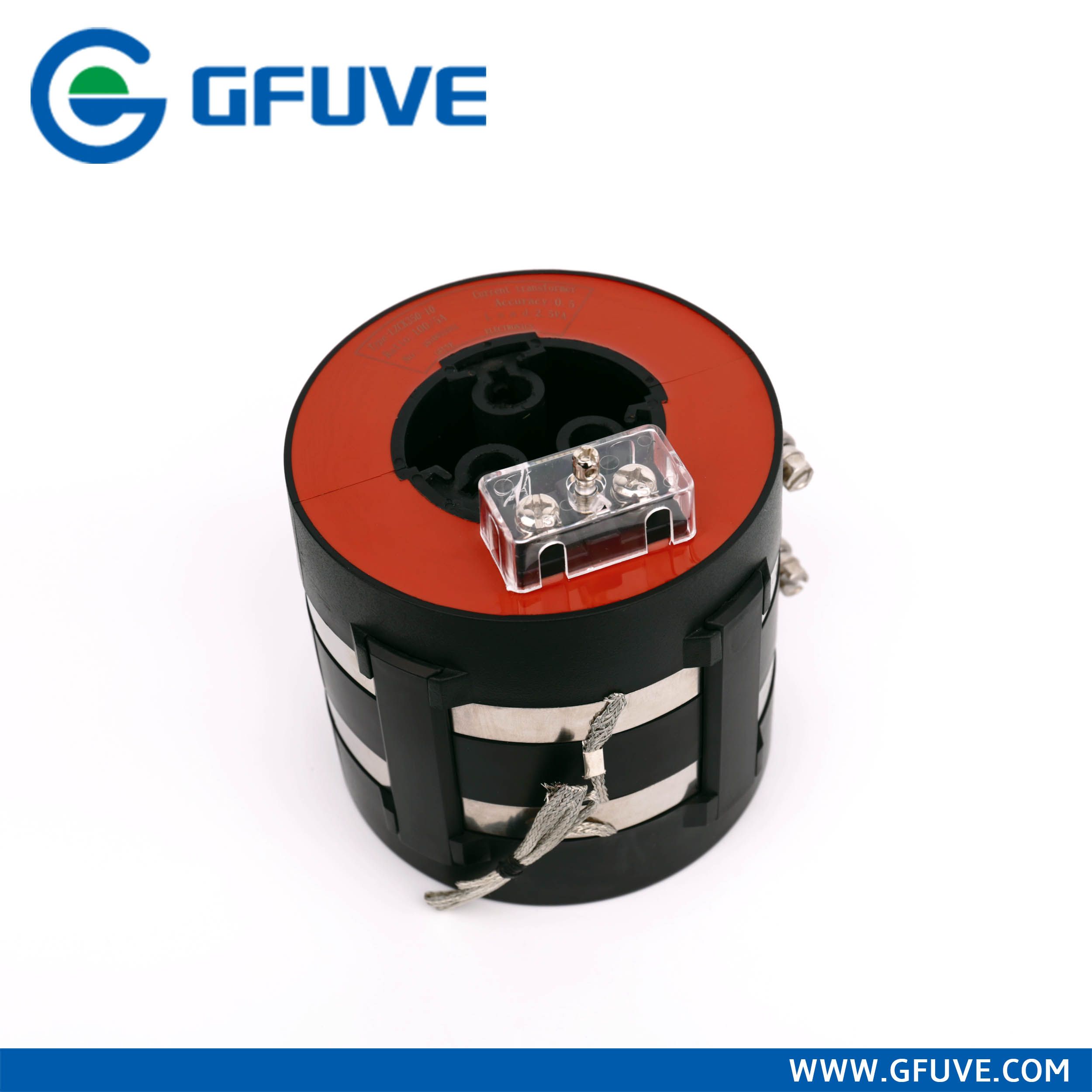

LZCK350-10 100/5A Epoxy Resin Cast Split Core Current Transformer
LZCK series resin split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
Parameters

Technical parameters
Standards	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006
Rated primary current	20-600A
Rated load	≤25VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-me thermal current	40kA, 1S
Rated connuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS ≤10
Mechanical parameters
Dimensions (W×D×H) (mm)	φ50xφ110x105
Weight (kg)	3.1
Operang condions
Operang temperature	-35°C to +55°C
Daily average temp	< +40°C
Altude	<3500 meters
Condion	No existence of severely begrimed, erosive and radioacve gas in the air. Permission of long-term operaon under rated current.

Technical data

Type	LZCK350-10			LZCK350-10			LZCK350-10
Purpose	Measuring current transformer			Protecon current transformer			Double winding current transformer
Rao	Accuracy class and rated burden(VA)			Accuracy class and rated load (VA)			Composite accuracy class and rated load (VA)
I1/I2	0.5	1	3	10P15	10P10	10P5	0.5	1	10P10	10P5
20/1			0.5			0.75
30/1		0.5	1.5		0.75	1.25
50/1		1	2		1.25	2
75/1	2	2.5	3.75	1.25	2	3		2	1	2
100/1	2.5	3.75	5	2	2.5	5	2	2.5	1.5	2.5
200/1	5			3	5	7.5	2.5		2
300/1	10			3	5	7.5	3.75		2.5
400/1	10			3	5	10	5		2.5
500/1	25			3.75	6.25	10	5		2.5
600/1	25			5	7.5	10	7.5		5
Type	LZCK350-10			LZCK350-10			LZCK350-10
Purpose	Measuring current transformer			Protecon current transformer			Double winding current transformer
Rao	Accuracy class and rated burden(VA)			Accuracy class and rated load (VA)			Composite accuracy class and rated load (VA)
600/1	25			5	7.5	10	7.5		5
50/5			2.5			2
75/5			2.5			3
100/5	2.5		3.75			5		2.5		2.5
200/5	7.5						2.5	5		2.5
300/5	10						5		2	2.5
400/5	15						7.5		2.5	5
500/5	25						7.5		2.5	5
600/5	30						10		3	7.5
