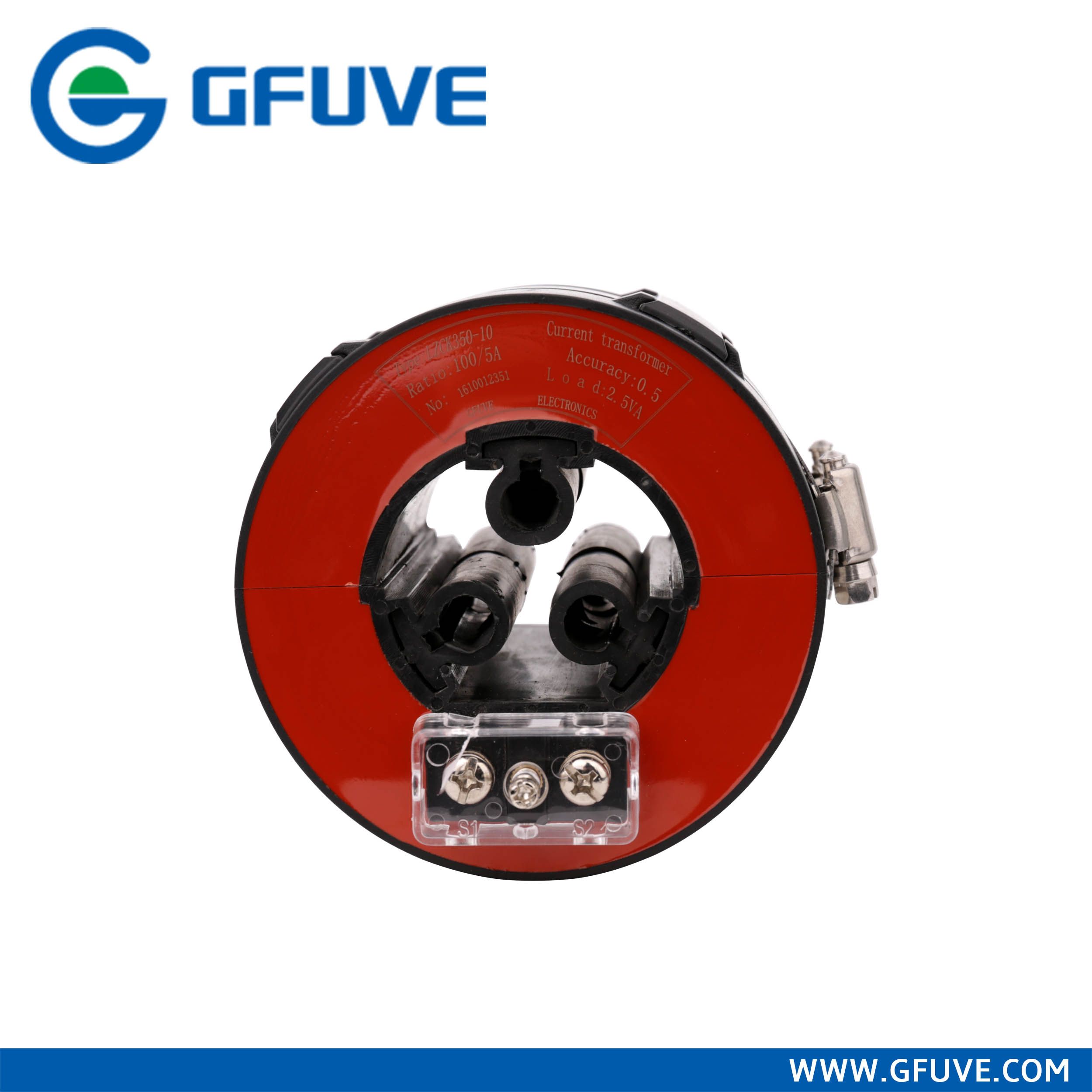

Lzck350-10 Split Core Current Transformer

Prod Model:	LZCK350-10
Lzck350-10:	Split Core Current Transformer
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006
Rated Primary Current:	20-600A
Rated Load:	≤25va
Rated Frequency:	50/ 60Hz
Rated Secondary Current:	5A or 1A
Dimensions (W×d×h) (mm):	φ50Xφ110X105
Weight (Kg):	3.1
Operating Temperature:	-35°c to +55°c
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION
LZCK350-10 Split Core Current Transformer
LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
Parameters


Technical parameters
Standards	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13
Range of primary rated current	20-600A
Range of Rated load	≤25VA
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power frequency withstand voltage	3kV, 1min
Instrument security factor	(FS) <10
Mechanical parameters
Dimensions (W×D×H) (mm)	φ50xφ110x105
Weight (kg)	3.1
Operating  conditions
Operating temperature	-35°C to +55°C
Daily average temp	< +40°C
Altitude	<3500 meters
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

Technical data

Type	LZCK350-10			LZCK350-10			LZCK350-10
Purpose	Measuring current transformer			Protection current transformer			Double winding current transformer
Rtio	Accuracy class and rated load(VA)			Accuracy class and rated load(VA)			Composite accuracy class and rated load(VA)
I1/I2	0.5	1	3	10P15	10P10	10P5	0.5	1	10P10	10P5
20/1			0.5			0.75
30/1		0.5	1.5		0.75	1.25
50/1		1	2		1.25	2
75/1	2	2.5	3.75	1.25	2	3		2	1	2
100/1	2.5	3.75	5	2	2.5	5	2	2.5	1.5	2.5
200/1	5			3	5	7.5	2.5		2
300/1	10			3	5	7.5	3.75		2.5
400/1	10			3	5	10	5		2.5
500/1	25			3.75	6.25	10	5		2.5
600/1	25			5	7.5	10	7.5		5
Type	LZCK350-10			LZCK350-10			LZCK350-10
Purpose	Measuring current transformer			Protection current transformer			Double winding current transformer
Rtio	Accuracy class and rated load(VA)			Accuracy class and rated load(VA)			Composite accuracy class and rated load(VA)
50/5			2.5			2
75/5			2.5			3
100/5	2.5		3.75			5		2.5		2.5
200/5	7.5						2.5	5		2.5
300/5	10						5		2	2.5
400/5	15				2.5		7.5		2.5	5
500/5	25				2.5		7.5		2.5	5
600/5	30				3.75		10		3	7.5

Selection guide

Model	Primary rated current	Rated load	Aperture (mm)	Description (mm)	Weight (kg)	Water-proof
LZCK-55	100-1500A	≤10VA	φ55	180×138×52	2	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	5	silicon case (option)

Ordering information Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
